Naylor C50 Grade 140 × 100mm Concrete Padstone
An alternative section and length selection to compare with your structural specification.
Naylor
Concrete Padstone ER2 C50 Grade 100x140mm
£16.00
/
£13.33 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item
The Naylor ER2 C50 Grade 100 × 140mm concrete padstone is a high-strength, dense concrete unit designed to provide a bearing surface for distributing concentrated structural loads into supporting brickwork or blockwork. The section is suited to applications where its dimensions and capacity match the structural design. This listing currently offers 600mm and 900mm selections, so check the chosen option against the required specification before ordering.
C50 Grade
Minimum concrete strength 50N/mm²
100 × 140mm
Section size
600 / 900mm
Selections shown on this listing
Key features
C50 grade concrete
Naylor states that its padstone range has a minimum concrete strength of 50N/mm².
100 × 140mm section
A compact section size for structural bearing applications where the design confirms it is suitable.
High-strength, dense concrete
Manufactured to provide a strong bearing unit that complements Naylor's prestressed lintel range.
For concentrated loads
Designed to help distribute a point load into the surrounding masonry or supporting structure.
What is this concrete padstone used for?

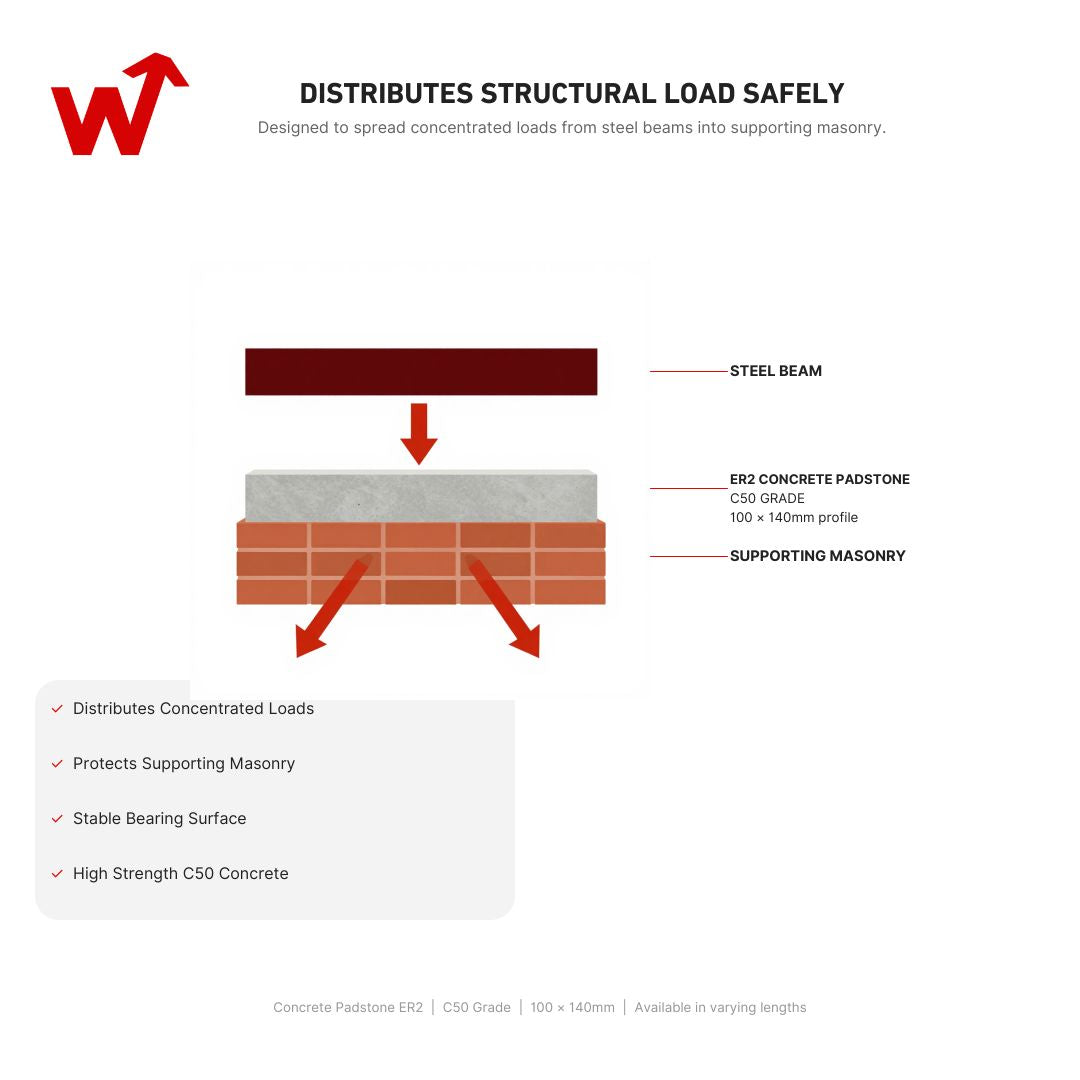

A padstone is typically placed where a beam or lintel bears onto a wall. It helps spread the concentrated load over a greater area of the supporting brickwork or blockwork, reducing the risk of excessive localised stress where the padstone is correctly designed and installed.
The required padstone depends on the applied load, bearing dimensions, wall construction and structural design. Confirm that this 100 × 140mm section and the selected length are appropriate for the actual installation before specifying it.

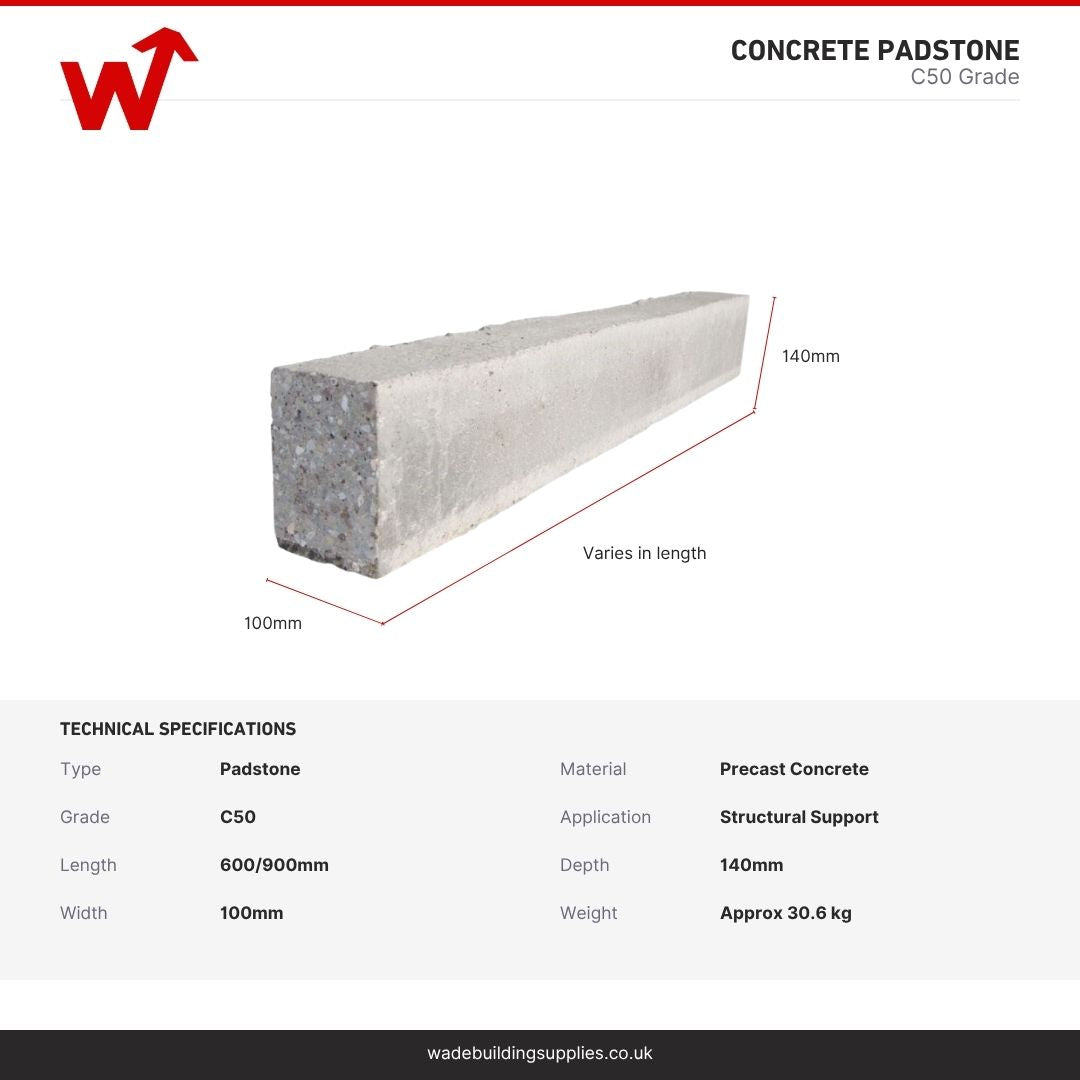

Product specifications
| Manufacturer | Naylor |
|---|---|
| Product type | Concrete padstone |
| Range / code | ER2 C50 Grade, as listed by Wade |
| Section size | 100 × 140mm |
| Options shown on this listing | 600mm and 900mm |
| Concrete strength | Minimum 50N/mm² stated for Naylor's padstone range |
| Material | High-strength, dense concrete |
| Typical function | Distributing concentrated loads into supporting masonry or structure |
| Product standard | Naylor states concrete padstones are not covered by a harmonised standard |
Technical information
Frequently asked questions
What does C50 grade mean?
Naylor states a minimum concrete strength of 50N/mm² for its padstone range. The correct padstone still needs to be selected for the particular structural application.
What is a concrete padstone used for?
A padstone provides a bearing surface to help distribute concentrated loads, such as those from beam or lintel ends, into the supporting masonry or structure.
Which lengths are available on this listing?
The current product options show 600mm and 900mm. Confirm that the selected variant dimensions match your required specification before ordering.
Does Naylor specify a harmonised product standard for padstones?
No. Naylor states that its concrete padstones are not covered by a harmonised standard. Refer to the manufacturer's technical information and the project structural design for selection.
