Naylor C50 Grade 100 × 140mm Concrete Padstone
A narrower-section alternative to assess where it matches the structural design.
Naylor
Concrete Padstone C50 Grade 140x215mm
£36.00
/
£30.00 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item
The Naylor C50 Grade 140 × 215mm concrete padstone provides a dense, high-strength bearing surface for distributing concentrated structural loads into supporting brickwork or blockwork. Designed for suitable applications beneath beam or lintel bearings, it is available in 330mm and 440mm lengths. Select the size to match the structural design and confirm the required bearing and supporting masonry before installation.
C50 Grade
High-strength concrete
140 × 215mm
Section size
330 / 440mm
Available lengths
Key features
C50 grade concrete
Naylor's padstone range has a minimum concrete strength of 50N/mm², as stated by the manufacturer.
140 × 215mm section
A padstone section for suitable structural bearing applications, subject to the design and supporting construction.
Two length options
Choose between 330mm and 440mm lengths to match the specification for the job.
Dense concrete construction
Designed to distribute concentrated loads into the surrounding brickwork or blockwork.
What is this concrete padstone used for?
A padstone provides a bearing area that helps spread a concentrated load into the structure beneath it. Naylor padstones are commonly used where the ends of beams or lintels bear into a wall and the load needs to be distributed into the surrounding masonry.
The correct padstone depends on the applied load, bearing dimensions, wall construction and structural design. The 140 × 215mm section should only be specified where the selected length and section are suitable for the project.

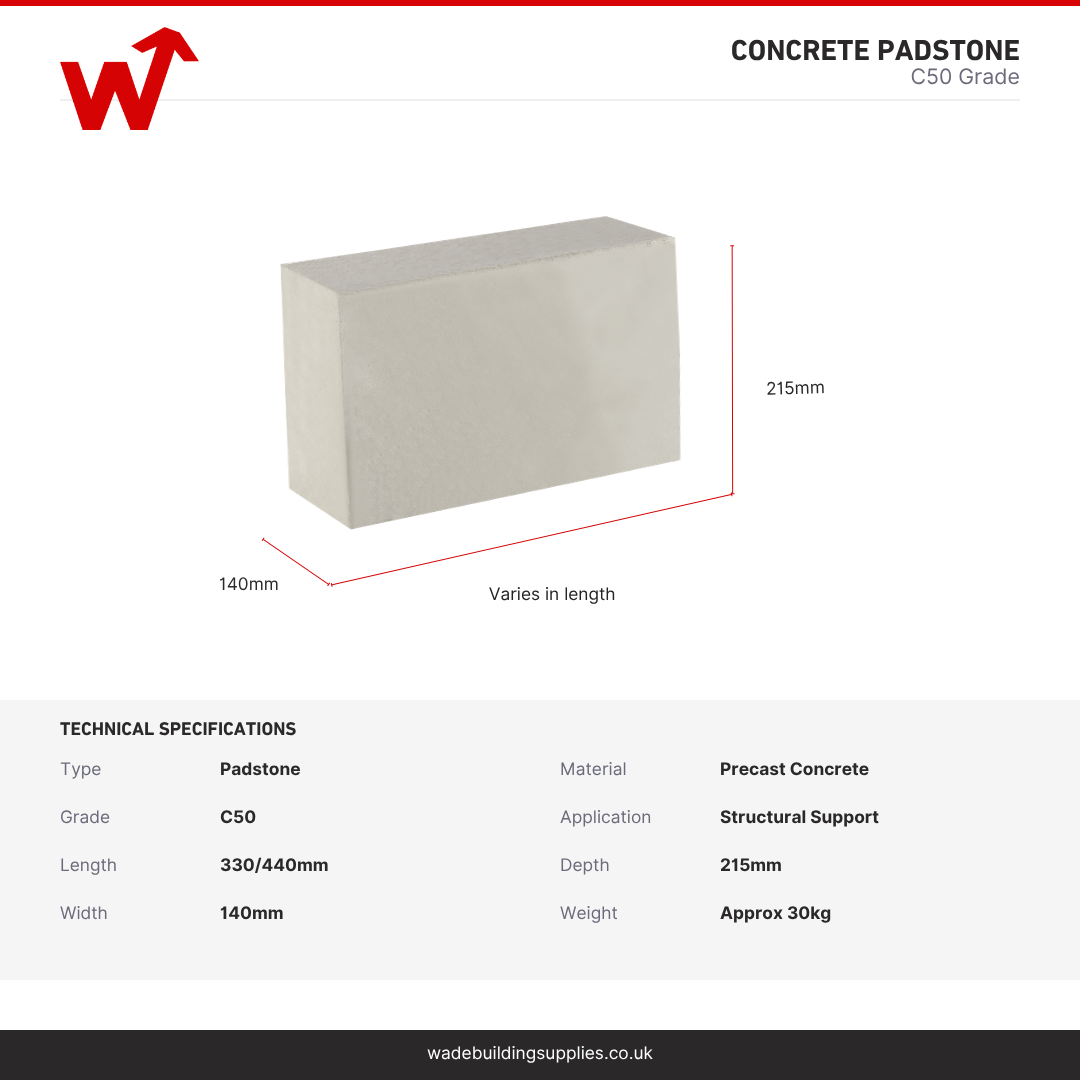

Product specifications
| Manufacturer | Naylor |
|---|---|
| Product type | Concrete padstone |
| Concrete grade | C50 Grade |
| Section size | 140 × 215mm |
| Available lengths | 330mm and 440mm |
| Approximate weight | 24kg (330mm) / 30kg (440mm), as listed |
| Material | High-strength dense concrete |
| Typical function | Distributing concentrated loads into supporting masonry |
Frequently asked questions
What size is this concrete padstone?
The section is 140 × 215mm, with 330mm and 440mm lengths available.
What does C50 Grade mean?
Naylor states a minimum strength of 50N/mm² for its concrete padstone range. The padstone still needs to be selected for the particular structural application.
What is a concrete padstone used for?
It provides a bearing surface to distribute concentrated loads from elements such as beam and lintel ends into the supporting masonry or structure.
How do I choose the correct length?
Choose the length specified for the project after checking the load, bearing arrangement and supporting construction. Ask the project engineer or refer to the manufacturer's technical guidance if you are unsure.
