Lintel Type : Cavity Lintels
Cavity Width : 50-65mm
Lintel Duty : Heavy Duty
Thermally Broken : No
Wide Inner Leaf? No
Birtley
Birtley HD50 Heavy Duty 50mm Cavity Lintel
2-3 Week Lead Time. Contact us for Alternatives if you need quicker
Become a trade card holder and get a discount on this item
Pickup available at Tipton West Midlands
Usually ready in 4 hours

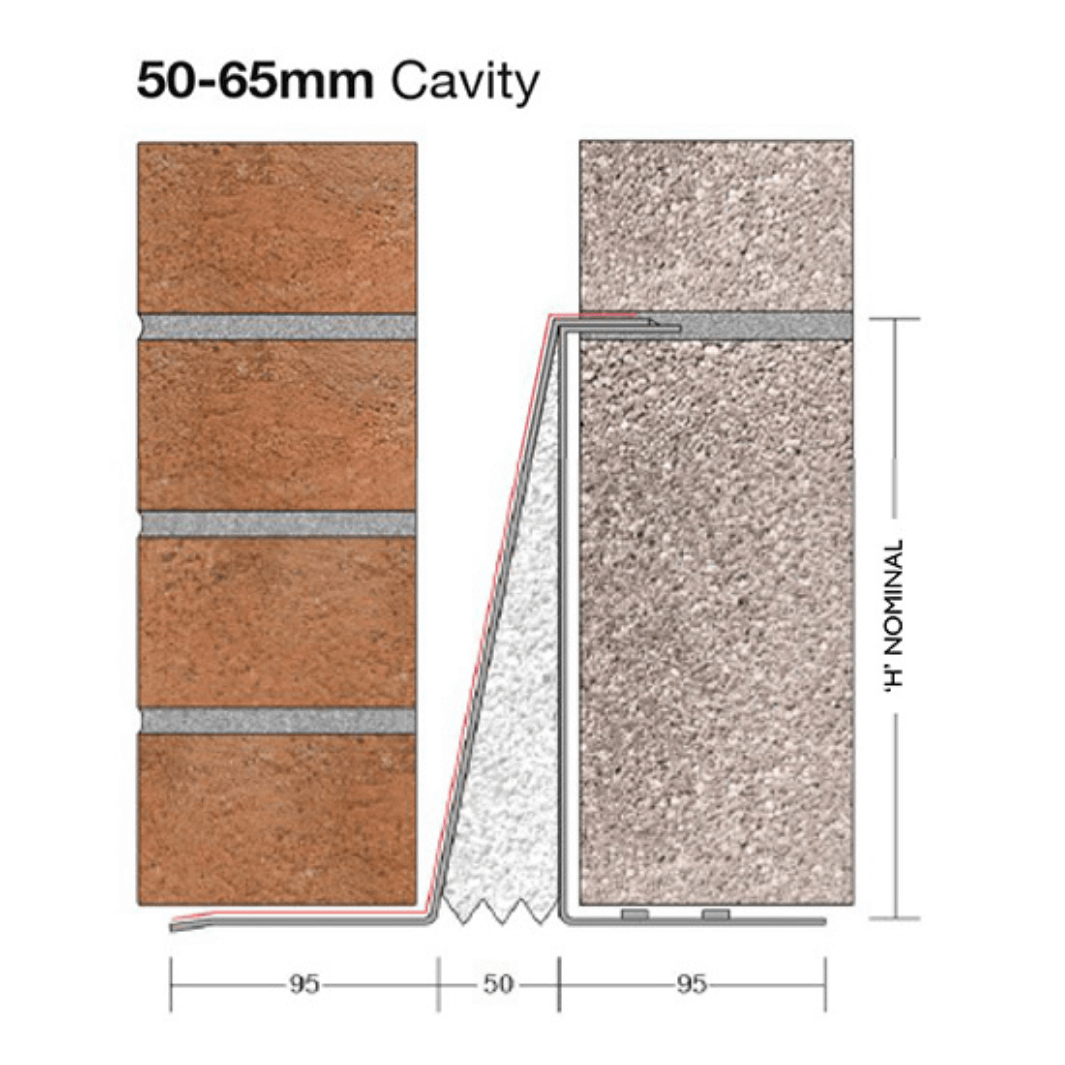

The Birtley HD50 heavy duty cavity lintel supports masonry above openings in walls with a 50–65mm cavity, a 100mm outer leaf and a 100mm inner leaf. Choose from 15 lengths between 900mm and 4800mm, including a 2850mm option.

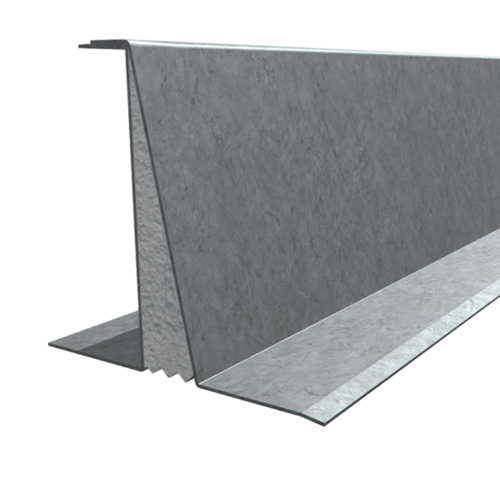

The HD50 combines structural-grade steel, post-fabrication hot-dip galvanising and factory-fitted insulation. Check the length-specific load rating below when selecting your lintel.
Birtley HD50 specification
| Manufacturer and model | Birtley HD50 |
|---|---|
| Duty | Heavy duty |
| Cavity width | 50–65mm |
| Masonry leaves | 100mm outer leaf and 100mm inner leaf |
| Material | S275JR structural-grade mild steel |
| Finish | Supergalv hot-dip galvanising after fabrication |
| Insulation | Factory-fitted expanded polystyrene |
| Plaster key | Provided to the inner leaf |
| Minimum end bearing | 150mm at each end |

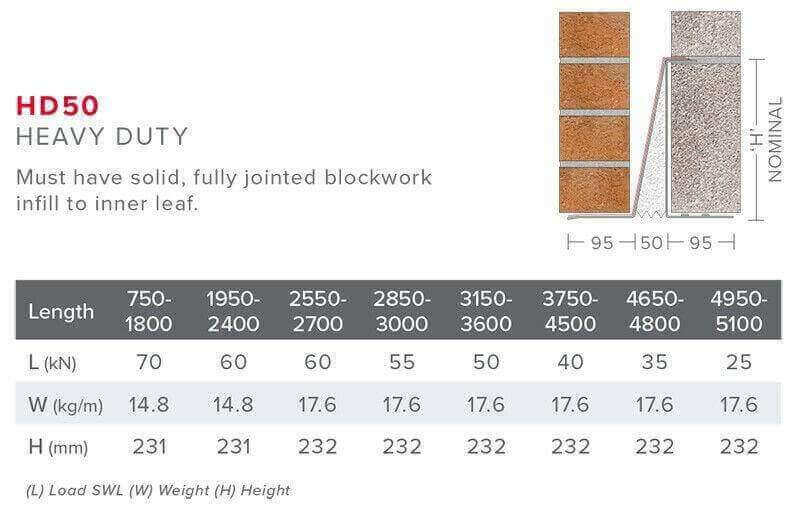

HD50 lengths, load ratings and dimensions
The table covers the lengths available from Wade. Load ratings are Birtley’s published safe working loads for uniformly distributed loading. Weight is expressed per metre, rather than per lintel.
| Length | SWL / UDL | Nominal weight | Section height |
|---|---|---|---|
| 900, 1200, 1500 and 1800mm | 70kN | 14.8kg/m | 231mm |
| 2100 and 2400mm | 60kN | 14.8kg/m | 231mm |
| 2700mm | 60kN | 17.6kg/m | 232mm |
| 2850 and 3000mm | 55kN | 17.6kg/m | 232mm |
| 3300 and 3600mm | 50kN | 17.6kg/m | 232mm |
| 3900, 4200 and 4500mm | 40kN | 17.6kg/m | 232mm |
| 4800mm | 35kN | 17.6kg/m | 232mm |
Installation requirements
- Provide at least 150mm end bearing at each end.
- Bed the lintel fully on bricklaying mortar.
- Provide solid, fully jointed blockwork infill to the inner leaf.
- Use a cavity tray for external wall installations.
- Follow Birtley’s installation guidance and the project’s structural specification.
Choosing the correct length
Allow for the clear opening and the required bearing at both ends. For example, a 1500mm lintel accommodates a 1200mm clear opening with 150mm bearing at each end, subject to the loading and construction requirements being satisfied.
Consult the Birtley HD50 technical information for the manufacturer’s full specification.
Frequently asked questions
Does the HD50 fit a 65mm cavity?
Yes. Birtley specifies the standard HD50 for cavities from 50mm to 65mm, with 100mm inner and outer masonry leaves.
Do longer HD50 lintels have the same load rating?
No. The published rating varies by length. Check the row for your selected length and confirm it meets the project’s loading requirements.
How do I calculate the total lintel weight?
Multiply the weight per metre by the length in metres. For example, a 2400mm HD50 at 14.8kg/m has a nominal weight of approximately 35.5kg.
Need help choosing your lintel?
Contact Wade with your opening dimensions and project specification, or explore the Birtley range for other cavity widths and lintel types.
