6x4 Concrete Lintel 100 x 140 | Naylor ER2 | All Lengths
£21.00
/
£17.50 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item

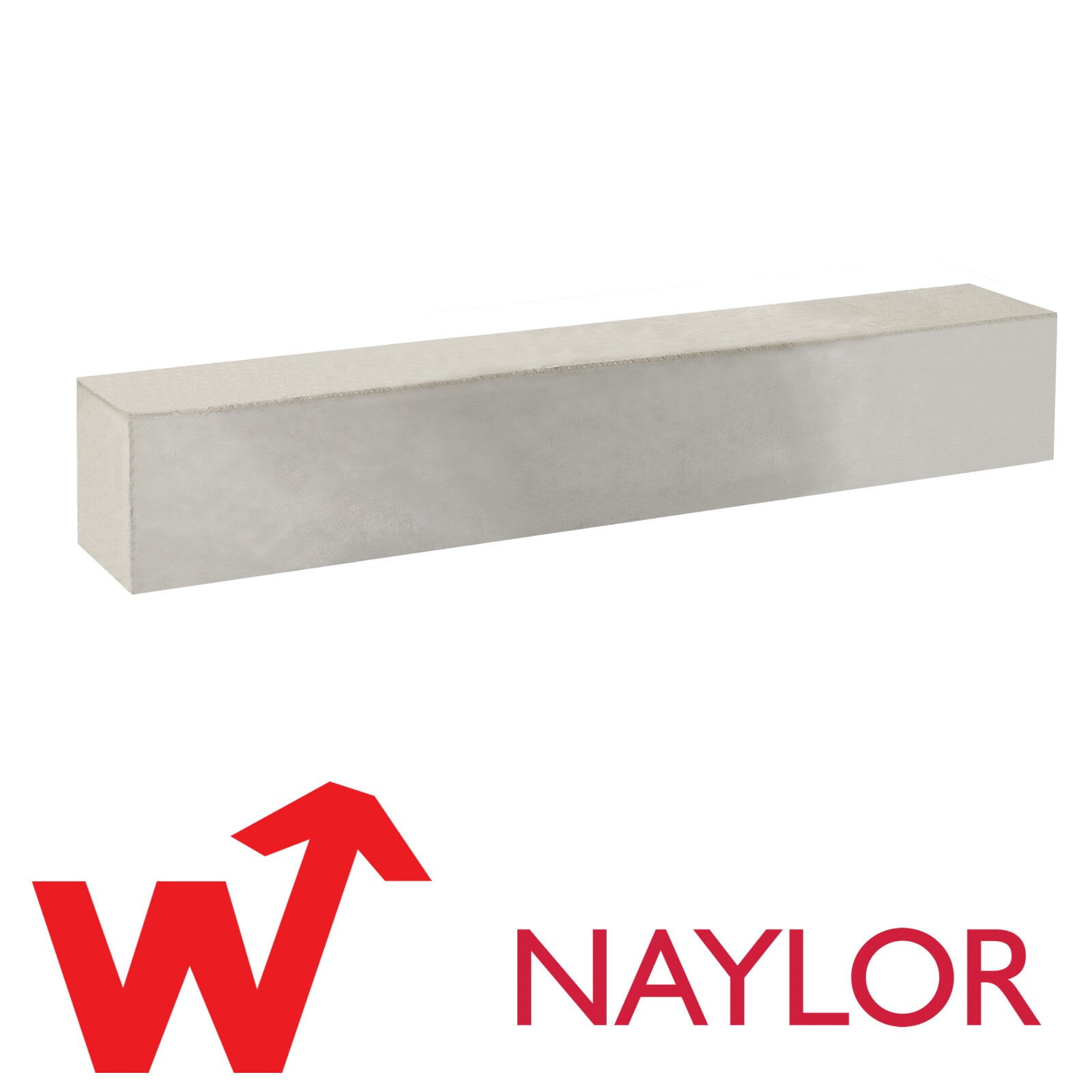

The Naylor ER2 6x4 concrete lintel has a 100 × 140mm section and is designed for masonry openings where a concrete lintel for plastered situations is suitable. Made from wet-cast concrete, it is fully reversible and available in lengths from 600mm to 3000mm, giving you options for a range of opening widths. Choose the length to suit the structural opening and check the manufacturer's loading guidance before specifying.
100 × 140mm
Lintel section
600–3000mm
Available lengths
Reversible
Can be installed either way up
Key features
100 × 140mm section
The Naylor ER2 is the 100 × 140mm option in the Economy concrete lintel range.
Fully reversible
The lintel can be installed in either orientation, following the manufacturer's installation guidance.
Wet-cast concrete
A concrete lintel with a practical finish for use in plastered situations.
30-minute fire rating
Specified with a 30-minute fire rating. Confirm that the product meets the requirements of the particular project.

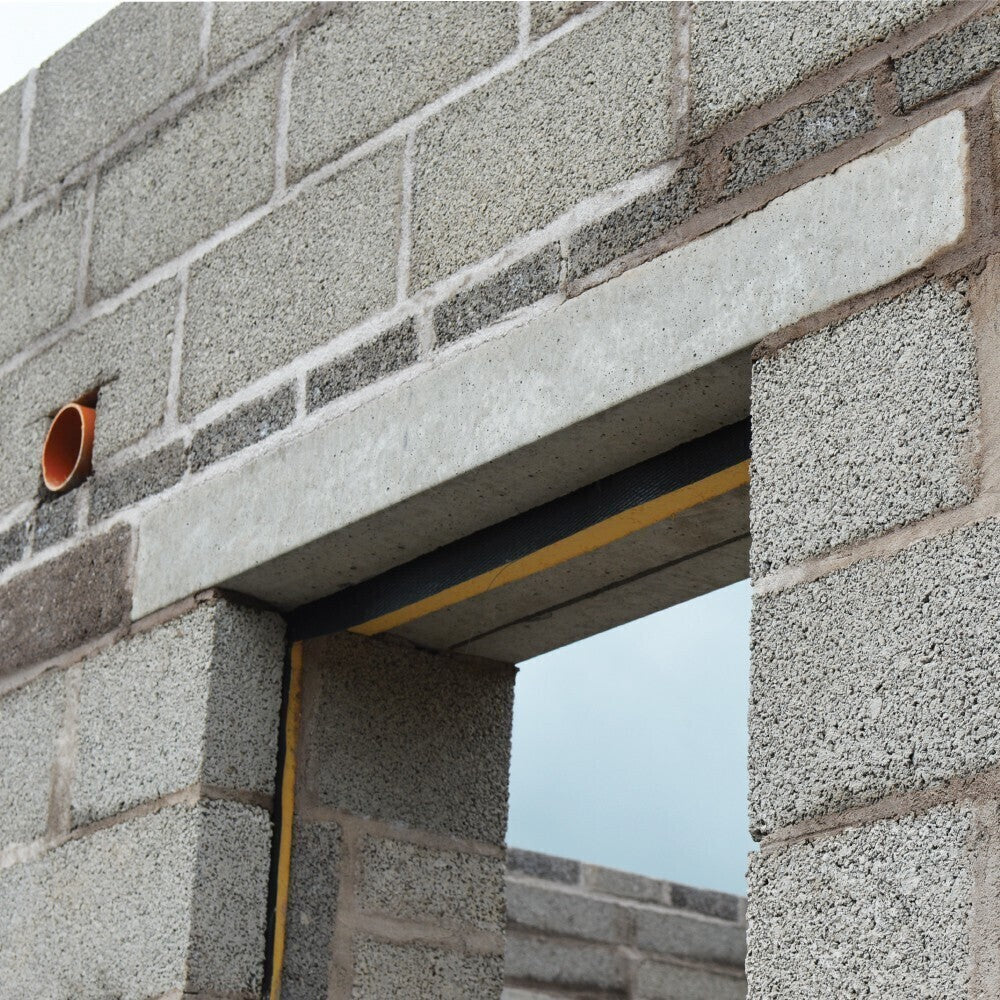

Where is the Naylor ER2 concrete lintel used?
The ER2 is intended for suitable masonry openings where a 100 × 140mm concrete lintel is appropriate, particularly in plastered situations. Its suitability depends on the opening span, the masonry construction and the loads carried above the opening.
Select the lintel length to suit the structural opening and required end bearings. Do not choose a lintel based on length alone: check Naylor's current loading tables and installation guidance, or seek structural advice where the loading conditions are uncertain.

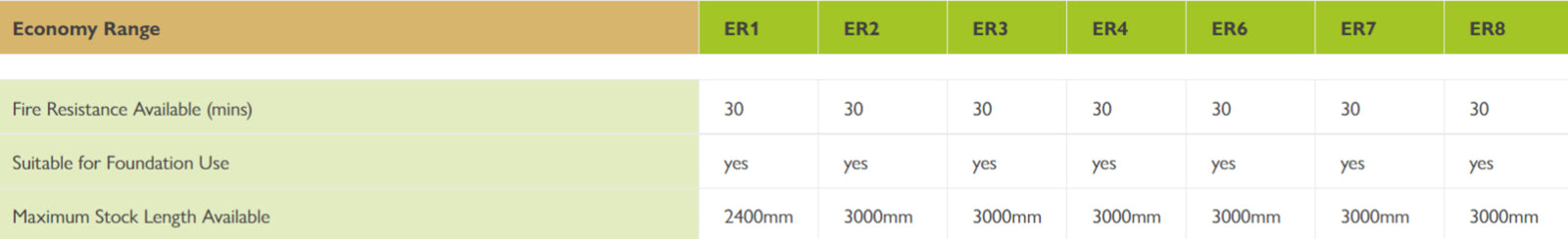

Product specifications
| Manufacturer | Naylor |
|---|---|
| Product range | Economy concrete lintel |
| Lintel code | ER2 |
| Section | 100 × 140mm (nominal 6x4 inch class) |
| Available lengths | 600, 900, 1200, 1500, 1800, 2100, 2400, 2700 and 3000mm |
| Material | Wet-cast concrete |
| Orientation | Fully reversible |
| Fire rating | 30 minutes, as specified by the manufacturer |
| Typical application | Suitable masonry openings in plastered situations |
| Approximate weight range | 20.4–102kg, depending on length |
Frequently asked questions
What size is a Naylor ER2 lintel?
The ER2 has a 100 × 140mm section.
What lengths are available?
This listing offers lengths from 600mm to 3000mm. Select the required length from the product options.
Can the ER2 lintel be installed either way up?
Yes. The Naylor ER2 is fully reversible. Follow the manufacturer's current installation instructions.
Is the Naylor ER2 suitable for every opening?
No single lintel suits every application. Check the clear span, required end bearings, masonry construction and loads against the manufacturer's current technical data before selecting a length.
