Lintel Type : 100mm Wide Box Lintels
Lintel Duty : Standard Duty
Catnic
Catnic BSD100 100mm Box Lintel
Become a trade card holder and get a discount on this item
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Catnic BSD100 100mm Box Lintel
The Catnic BSD100 is a cost-effective, lightweight box lintel for internal blockwork partition walls. It is available in multiple sizes and standard block widths, with double corrosion protection from galvanising and powder coating.
Key Features
Dimensions & Specification
| Manufacturer | Catnic |
| Product | BSD100 100mm Box Lintel |
| Application | Internal blockwork partition walls |
| Finish | Galvanised and powder coated |
| Available Lengths | 900mm to 4800mm |
| Maximum Structural Opening | Up to 4500mm for the 4800mm lintel |
| Loading | 19kN from 750mm to 2100mm; 27kN for the 4.8m version |
| SWL Basis | Total UDL over maximum span with 150mm bearing at each end |
Where to Fit

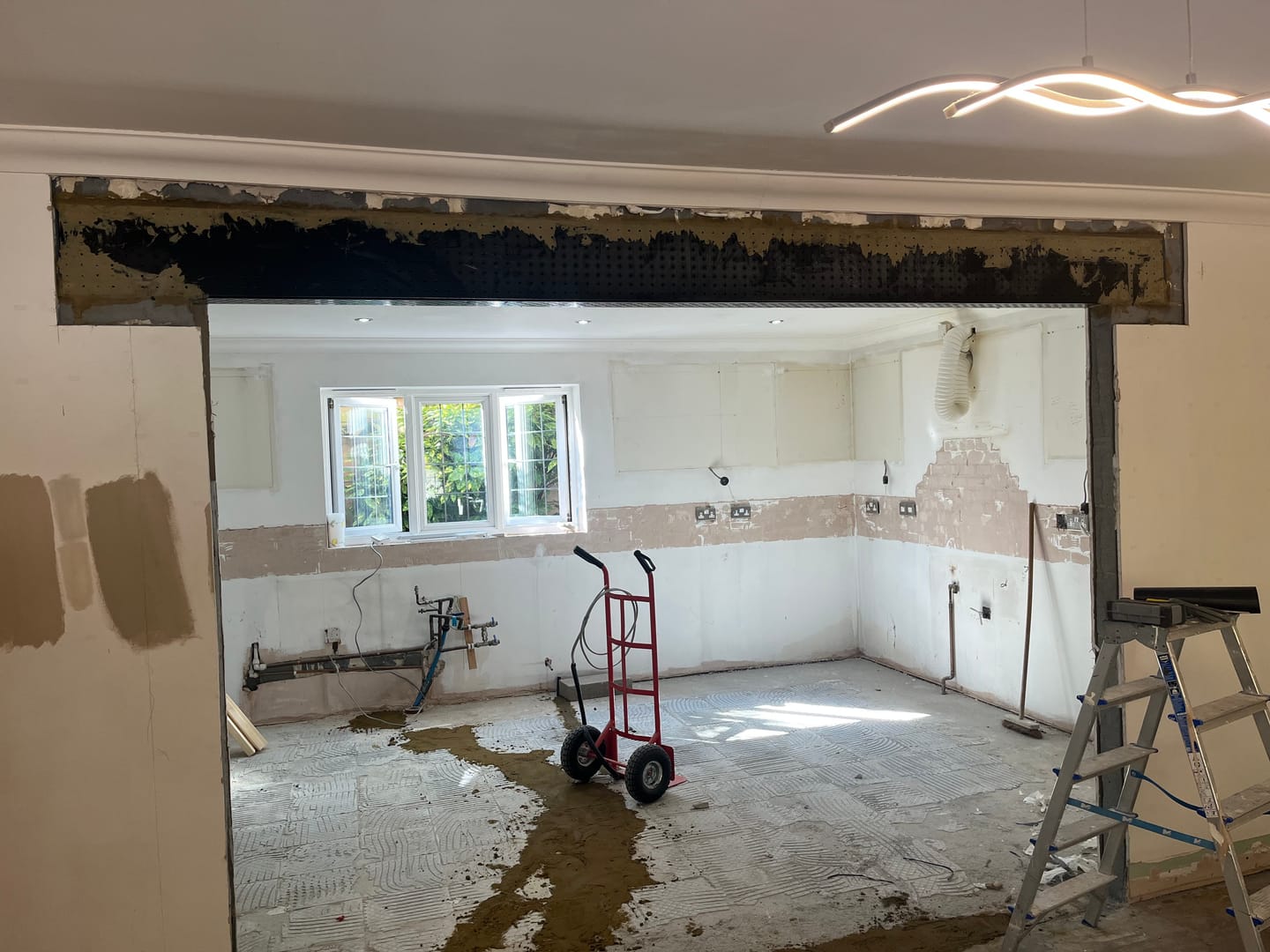

The Catnic box lintel faces are ready-prepped for easy plastering, or can be left exposed where a contrasting finish to face blockwork is desired.
The BSD100 is suited to internal blockwork partition wall requirements and is designed to provide a lightweight alternative to an RSJ, making it easier to finish with plaster and paint.
Related 100mm Box Lintels
Need Help Selecting the Right Box Lintel?
Wade's lintel experts can help confirm the correct size and loading requirement.
Frequently Asked Questions
What is the Catnic BSD100 used for?
It is designed for internal blockwork partition wall applications.
What is the maximum opening?
The 4800mm lintel can handle loads across a 4500mm structural opening.
What loading can the BSD100 take?
The source product information states 19kN from 750mm to 2100mm, while the 4.8m version can deal with 27kN. SWL is based on total UDL over a maximum span with 150mm bearing at each end.
