Catnic BXD100 Extra Heavy Duty 100mm Box Lintel

£106.00
Box Lintel

£88.33 (ex VAT)

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

The Catnic BXD100 Extra Heavy Duty 100mm Box Lintel is designed for structural openings in internal load-bearing masonry walls. Manufactured from galvanised steel with Catnic's protective black powder-coated finish, the BXD100 combines a heavy-duty box-section profile with an integral plaster key. We supply eight lengths from 900mm to 2700mm, with safe working loads of 47kN or 59kN depending on length.

Catnic BXD100 key features

Extra heavy duty loading

Provides published safe working loads of 47kN or 59kN, depending on the selected lintel length.

Internal load-bearing walls

Designed for suitable internal masonry walls, including specified structural floor and roof loading applications.

100mm masonry construction

The BXD100 is designed for nominal 100mm solid masonry walls, rather than combined cavity-wall construction.

Integral plaster key

Incorporates a plaster key to assist with plaster finishing.

Duplex corrosion protection

Galvanised steel with Catnic's protective black polyester powder coating.

Eight lengths available

Choose from 900mm, 1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm and 2700mm.

Dimensions and specification

Catnic BXD100 technical specifications
Manufacturer Catnic
Product code BXD100
Lintel type Extra heavy duty steel box lintel
Wall construction Internal load-bearing masonry wall
Nominal wall width 100mm
Cavity Not applicable
Available lengths 900–2700mm, eight sizes
Manufacturer's length range 750–2700mm

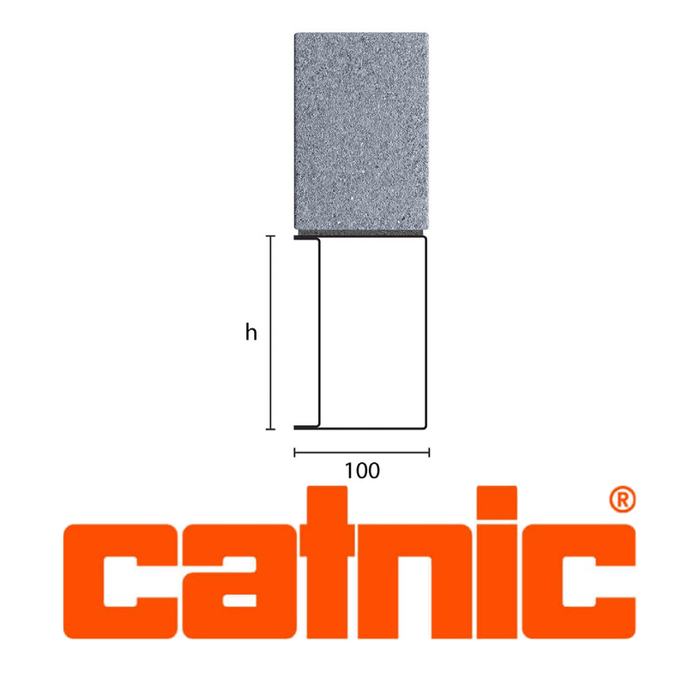

Nominal section height 143mm or 219mm, depending on length
Nominal end bearings 150mm at each end
Safe working load 47kN or 59kN, depending on length
Plaster key Integral
Finish Galvanised steel with black polyester powder coating

Catnic BXD100 sizes and safe working loads

The BXD100's safe working load and section height depend on lintel length. The table below covers all eight sizes we supply, including Catnic's published nominal weights.

BXD100 lengths, safe working loads, weights and heights
Length SWL Weight Height
900mm 47kN 8.46kg 143mm
1200mm 47kN 11.28kg 143mm
1350mm 47kN 12.69kg 143mm
1500mm 47kN 14.10kg 143mm
1800mm 59kN 28.26kg 219mm
2100mm 59kN 32.97kg 219mm
2400mm 59kN 37.68kg 219mm
2700mm 59kN 42.39kg 219mm

Where to use a Catnic BXD100 lintel

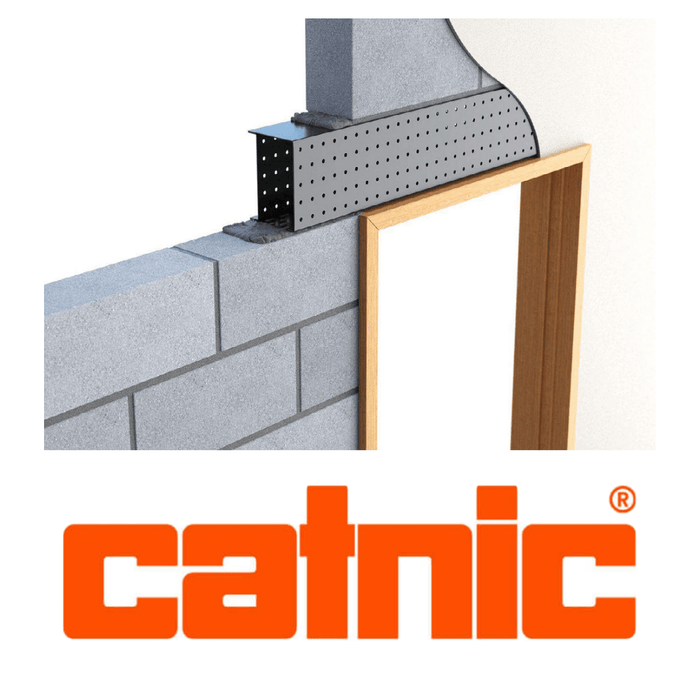

The Catnic BXD100 is designed for openings in internal load-bearing masonry walls. Catnic specifies the range for demanding structural loading applications, including direct floor and roof loads, concrete floors and point loads, where the selected lintel and supporting masonry are suitable.

The BXD100 is not a combined cavity-wall lintel. Confirm the wall construction and structural loading requirements before ordering.

Choosing the correct BXD100 length

Catnic's published loading figures use nominal 150mm end bearings at each end. The required lintel length is normally calculated by adding 300mm to the clear structural opening width.

For example, a 1200mm structural opening would normally require a 1500mm lintel, providing 150mm bearing at each end. The selected lintel must also have sufficient safe working load for the intended construction.

Installation considerations

Ensure the supporting masonry provides suitable bearings and can carry the loads transferred through the lintel. Follow Catnic's current installation guidance and the project structural design, including any requirements for temporary support during construction.

For different loading requirements, compare our Catnic BSD100 Standard Duty Box Lintel and Catnic BHD100 Heavy Duty Box Lintel.

Browse our 100mm box lintel collection for alternative models and lengths.

Technical downloads

Frequently asked questions

What is the Catnic BXD100 used for?

The BXD100 is an extra heavy duty steel box lintel for internal load-bearing masonry walls. It can support specified masonry, floor and roof loads where its published capacity is sufficient.

What lengths of Catnic BXD100 do you supply?

We offer eight lengths: 900mm, 1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm and 2700mm. Choose your required size from the options above.

What is the safe working load of a Catnic BXD100?

Catnic specifies 47kN for lengths from 750mm to 1500mm and 59kN for lengths from 1650mm to 2700mm, subject to the manufacturer's loading conditions.

Does the Catnic BXD100 have an integral plaster key?

Yes. Catnic confirms that the BXD100 incorporates an integral plaster key.

Can a BXD100 be used in a cavity wall?

The BXD100 is designed for internal solid masonry walls, not combined cavity-wall construction. For a cavity wall, choose a lintel designed for the relevant cavity and masonry leaf dimensions.

What is the difference between BSD100, BHD100 and BXD100?

These are standard duty, heavy duty and extra heavy duty Catnic box lintels respectively. Their load capacities vary by model and length. Compare the technical loading tables rather than relying on duty designation alone.

How much end bearing does a BXD100 require?

Catnic's published loading figures use nominal 150mm end bearings at each end. Confirm the opening dimensions and loading requirements before ordering.
