Lintel Type : Concrete Lintels

Naylor

Concrete Lintel 100 x 215mm Economy ER7

£51.00

£42.50 (ex VAT)

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

The Naylor ER7 Economy concrete lintel has a 100 × 215mm section and is designed for suitable masonry openings where a deeper lintel profile is required. It is prestressed, fully reversible and has an extruded concrete finish intended for plastered or rendered situations. Naylor specifies 30 minutes of fire resistance and lists the Economy range for standard housing, small-load situations and suitable foundation service entries. Select the length and orientation to match the opening, bearings and structural design.

100 × 215mmLintel section
600–3000mmLength options in this listing
30 minutesDeclared fire resistance

Key features

Naylor ER7 Economy range

A cost-effective lintel option for suitable housing and other applications where a high load-carrying capacity is not required.

100 × 215mm section

A 215mm-deep profile for compatible masonry openings, installed in the orientation specified for the design.

Fully reversible design

The Economy range is described by Naylor as reversible. Follow the orientation guidance for the chosen section and application.

30-minute fire resistance

Naylor specifies 30 minutes of fire resistance as standard for the Economy range.

Extruded concrete finish

The textured finish is intended for plastered or rendered situations rather than exposed decorative use.

Foundation applications

Naylor lists Economy lintels as suitable for bridging service entries in foundations, subject to the installation detail and project specification.

Where is the Naylor ER7 used?

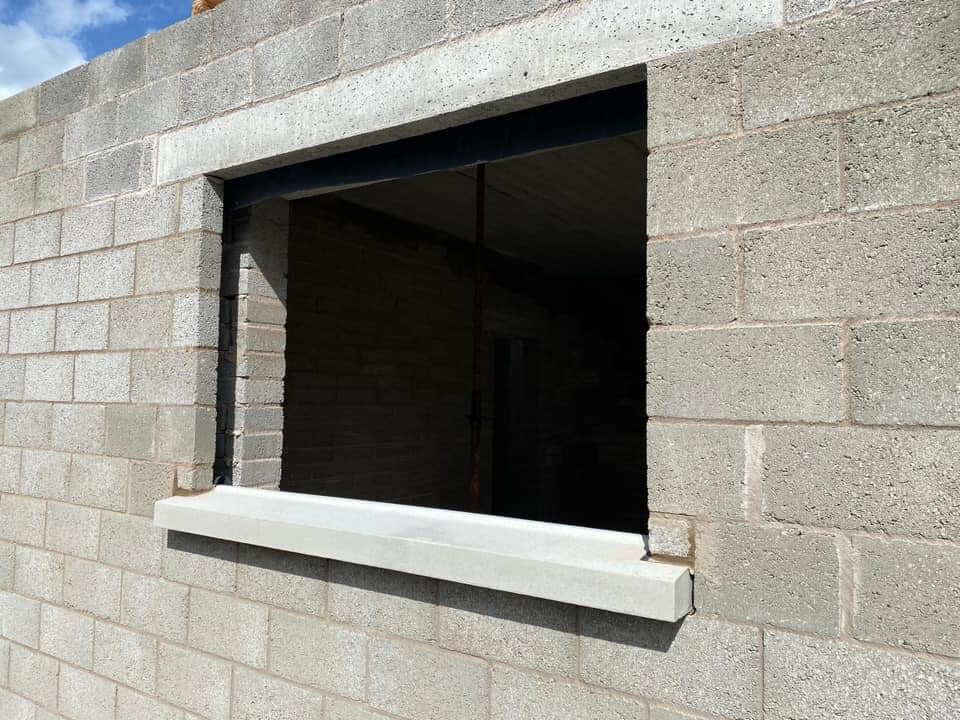

The ER7 is intended for suitable openings in walls and partitions, particularly in housing and other applications where the load falls within the manufacturer's declared performance. Its deeper 215mm profile can suit projects where that section is specified and enough depth is available.

Naylor also lists the Economy range for bridging service entries in foundations. Confirm the exact application, supporting construction, bearing details and loads against the manufacturer's instructions and the project design before installation.

Product specifications

Naylor ER7 Economy 100 × 215mm concrete lintel
Manufacturer Naylor
Product range Economy concrete lintel
Lintel code ER7
Section 100 × 215mm
Lengths listed by Wade 600mm, 750mm, 900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1800mm, 1950mm, 2100mm, 2400mm, 2700mm and 3000mm
Weight Approximately 52kg per metre
Material Prestressed concrete
Finish Extruded concrete; normally plastered or rendered
Orientation Check the specified installation orientation and corresponding load data
Declared fire resistance 30 minutes
Foundation use Listed as suitable by Naylor for appropriate service-entry applications
Relevant standard BS EN 845-2:2013+A1:2016, as stated in Naylor's Declaration of Performance

ER7 load-bearing capacity — installed on edge

The following manufacturer-published figures are for the ER7 installed on edge. They are unfactored loads in kN/m, paired with Naylor's corresponding clear spans. Load capacity differs with orientation, so use the table only when it matches the specified installation and check the current technical information before selecting a lintel.

Naylor ER7 on-edge length, clear span and unfactored load
Lintel length Clear span Unfactored load Fire resistance
900mm 700mm 30.73kN/m 30 minutes
1200mm 1000mm 17.77kN/m 30 minutes
1500mm 1200mm 12.39kN/m 30 minutes
1800mm 1500mm 7.88kN/m 30 minutes
2100mm 1800mm 5.37kN/m 30 minutes
2400mm 2100mm 3.85kN/m 30 minutes
2700mm 2400mm 2.84kN/m 30 minutes
3000mm 2700mm 2.15kN/m 30 minutes

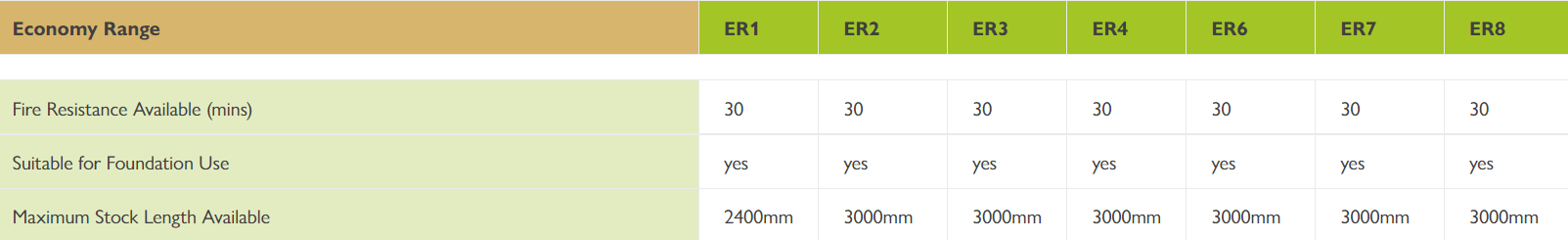

Compare Economy concrete lintels

Compare alternative Naylor sections if your opening or structural requirements call for a different depth or width.

Technical downloads

Frequently asked questions

What size is the Naylor ER7 lintel?

This listing is for the 100 × 215mm ER7 Economy concrete lintel.

Is the ER7 reversible?

Naylor describes the Economy range as fully reversible. The load capacity depends on the installed orientation, so follow the manufacturer's guidance for the chosen application.

What lengths are available?

This Wade listing includes options from 600mm to 3000mm. Naylor's published on-edge load table gives values for standard lengths of 900mm, 1200mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm and 3000mm.

What fire resistance does the ER7 provide?

Naylor specifies 30 minutes of fire resistance for the Economy lintel range.
