Lintel Type : Cavity Lintels
Cavity Width : 90-105mm
Lintel Duty : Medium Duty
Thermally Broken : No
Wide Inner Leaf? Yes
Stressline
Stressline Medium Duty 100mm Cavity (140mm wide inner leaf) Lintel SL90HDWIL
£204.16 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item
The Stressline Medium Duty 100mm Cavity Lintel with Wide Inner Leaf SL90HDWIL is designed for cavity wall construction with a wider inner leaf. It supports masonry loads, distributed timber floor loads and distributed roof loads, subject to the relevant Stressline load-span data and wall specification. The listed configuration suits a 90–105mm cavity and a 125–150mm inner leaf.
Key Features
100mm cavity wall application
Specified for a cavity width of 90–105mm, according to the existing product information.
Wide inner leaf
Designed for an inner leaf in the 125–150mm range, including the wider blockwork arrangement identified for this product.
Medium-duty performance
Listed for masonry loads and distributed timber floor and roof loads. Confirm capacity for the actual span and loading conditions.
Built-in insulation
The product information describes built-in, continuous insulation to help reduce thermal bridging.
Built-in plaster key
A built-in plaster key is listed to assist with the internal finish.
Galvanised steel
Galvanised construction with a base plate to the inner flange, as stated in the existing product information.
Product Specifications
| Manufacturer | Stressline |
|---|---|
| Product code | SL90HDWIL |
| Lintel type | Medium-duty cavity lintel with wide inner leaf |
| Cavity width | 90–105mm |
| Inner leaf width | 125–150mm |
| Finish | Galvanised |
| Features | Built-in insulation and plaster key |
| Available lengths | 1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm, 3000mm, 3300mm, 3600mm, 3900mm and 4200mm |
Typical Applications
The SL90HDWIL is intended for cavity wall openings where the inner leaf is wider than a standard 100mm blockwork arrangement. The existing product information lists masonry, distributed timber floor and distributed roof loads. Suitability depends on the opening span, supported loads, wall construction and bearing conditions.
Installation Guidance
The existing product information advises that masonry should be built tightly against the vertical section of the channel, with a mortar joint at the top. The channel should be well filled with cured masonry before work proceeds above. Always follow Stressline's current installation instructions and the project-specific structural specification.
Technical Information

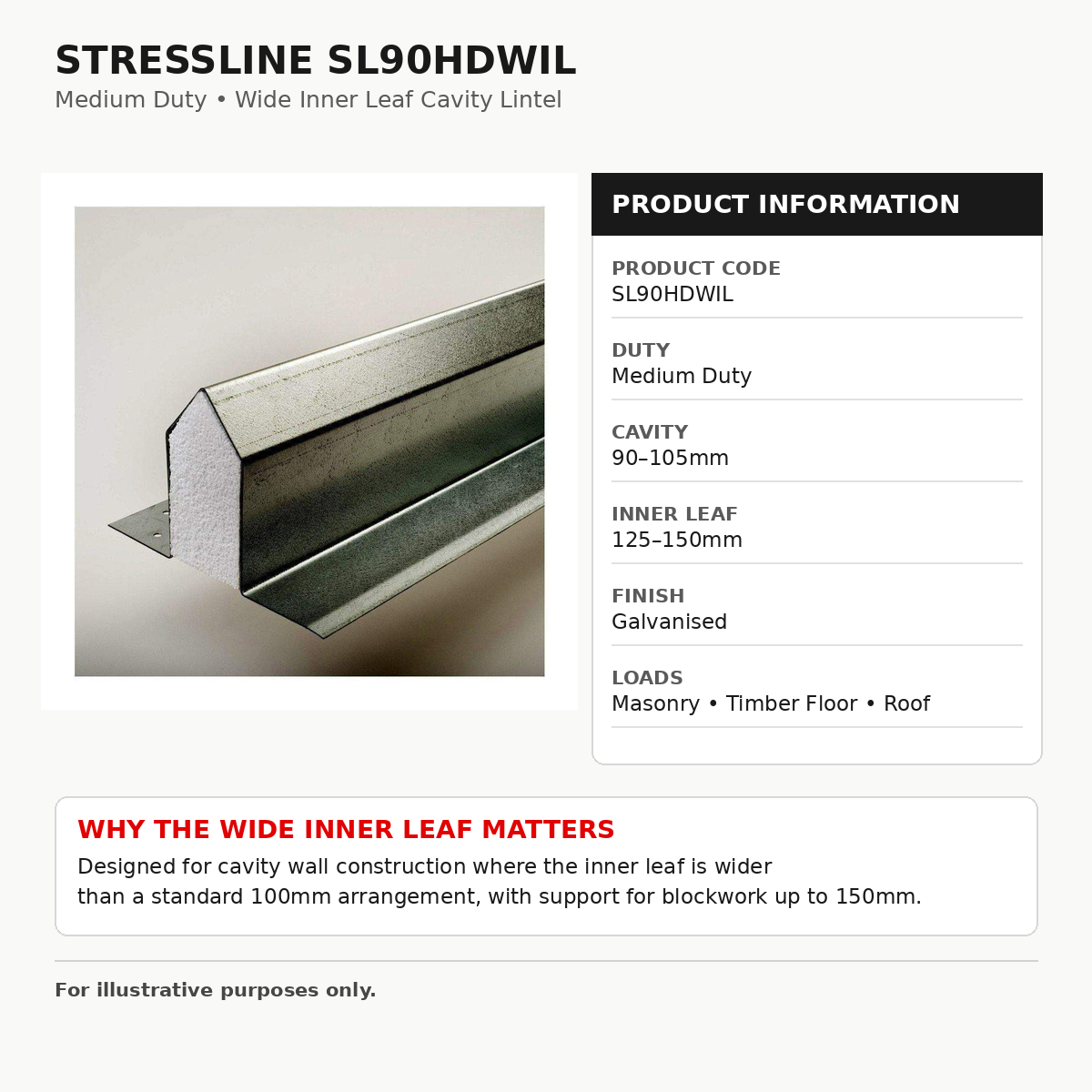

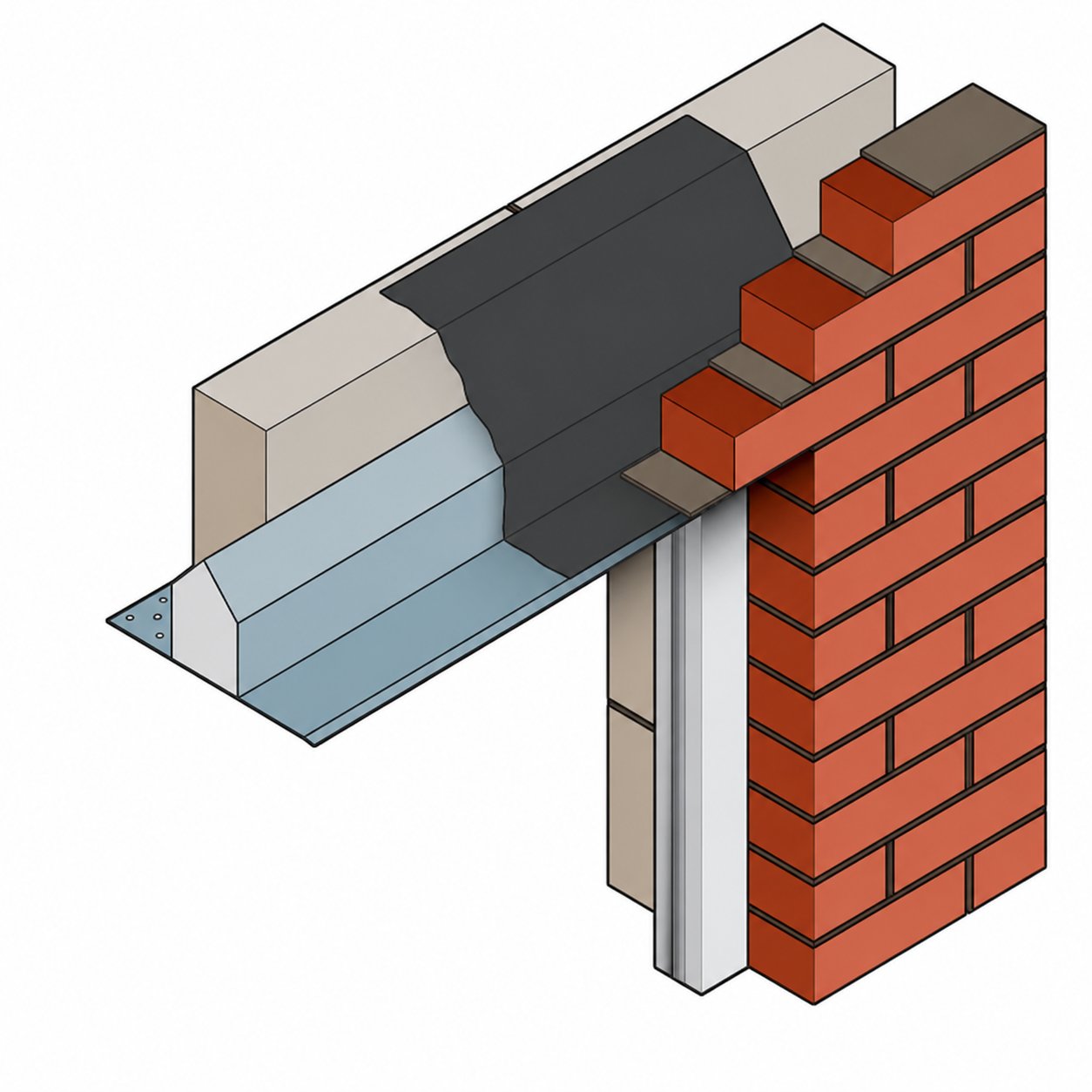

Product information and application illustrations are available in the product images above. Refer to Stressline's current technical guidance for load-span data, installation requirements and confirmation of suitability for the proposed construction.
Frequently Asked Questions
What cavity width is the SL90HDWIL designed for?
The existing product information specifies a cavity width of 90–105mm. Check the actual wall dimensions before ordering.
What inner leaf width does it accommodate?
The product information identifies an inner leaf width of 125–150mm.
What loads can it support?
The existing listing identifies masonry loads and distributed timber floor and roof loads. Confirm the capacity for the required span and loading arrangement using Stressline's current load-span data.
What lengths are available?
The current Shopify listing offers 12 length options from 1200mm to 4200mm.
Need Help Choosing a Cavity Lintel?
Contact Wade Building Supplies for help checking cavity size, inner leaf width, lintel length and the right specification for your project.
