Lintel Type : Cavity Lintels
Cavity Width : 90-105mm
Lintel Duty : Standard Duty
Thermally Broken : No
Wide Inner Leaf? No
Birtley
Birtley 100mm Cavity Lintel CB90
2-3 Week Lead Time. Contact us for Alternatives if you need quicker
Become a trade card holder and get a discount on this item
Pickup available at Tipton West Midlands
Usually ready in 4 hours

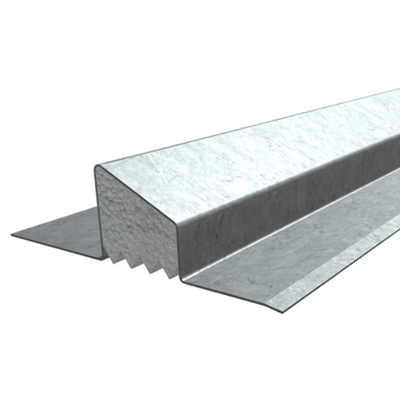

The Birtley CB90 100mm Cavity Wall Lintel is a standard-duty steel cavity lintel designed for cavity widths of 90–105mm, with a 100mm outer leaf and 100mm inner leaf. It is manufactured from S275JR structural-grade mild steel and finished with a 65µm Supergalv hot-dip galvanised coating applied after fabrication. Factory-fitted expanded polystyrene (EPS) insulation helps reduce thermal bridging, while the design also includes a plaster key to the inner leaf and no baseplate. The CB90 is not suitable for point loads or concrete floors.
CB90 at a Glance
Key Features
Standard-duty design
Designed for standard-duty cavity wall openings within Birtley's published span and loading information.

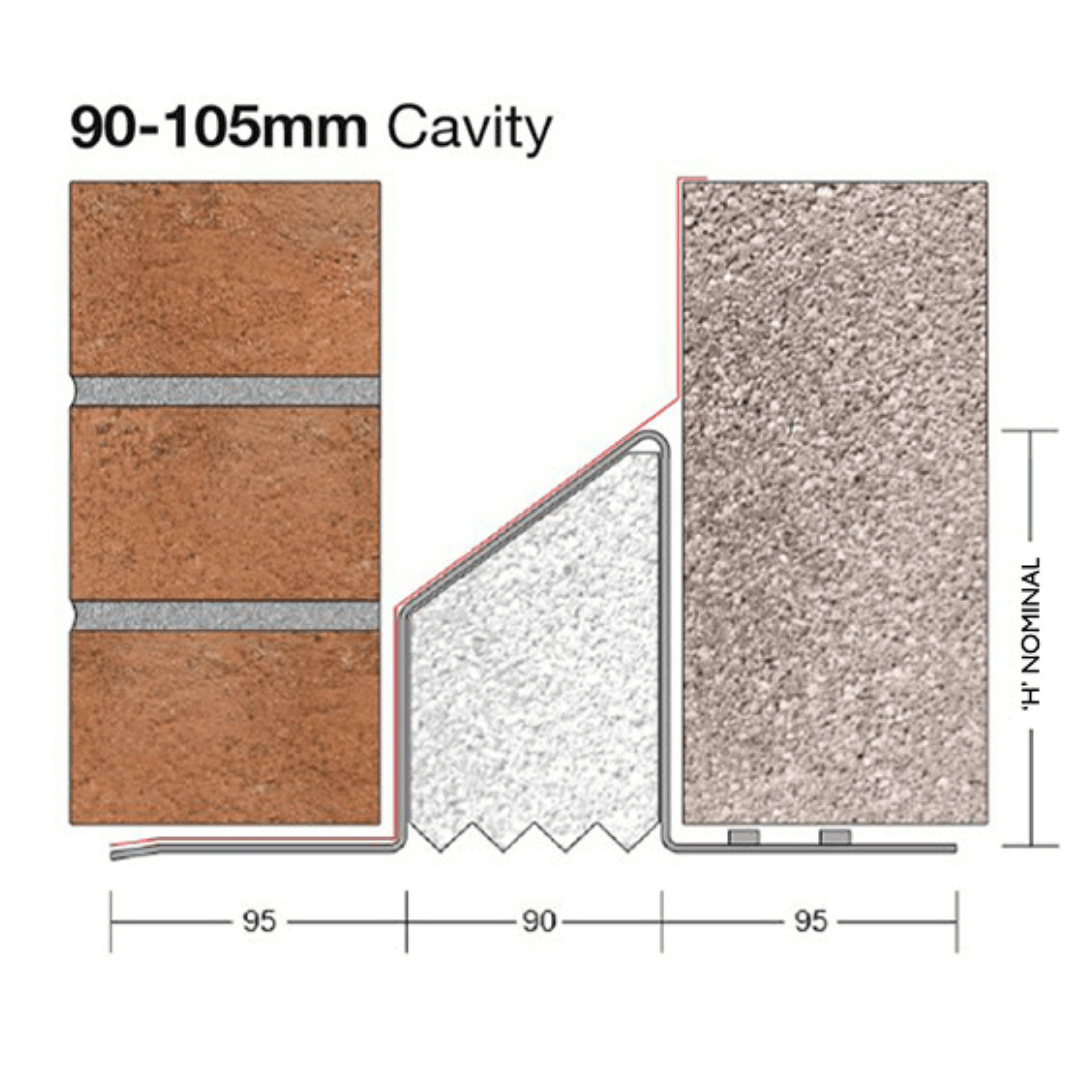

90–105mm cavity
Suitable for a 90–105mm cavity with 100mm inner and outer leaves.
Factory-fitted EPS insulation
Expanded polystyrene insulation is factory fitted. Birtley lists the insulation with a BREEAM A+ rating.
Supergalv coating
65µm hot-dip galvanised coating applied after fabrication to BS EN ISO 1461.
Structural-grade steel
Manufactured from S275JR mild steel to BS EN 10025-2.
Plaster key to inner leaf
Includes a plaster key to assist with the internal plaster finish.
No baseplate
The CB90 design omits a baseplate. Birtley states that the lack of a baseplate, together with factory-fitted insulation, helps reduce thermal bridging.
60-minute fire rating
Birtley states a 60-minute fire rating when the lintel is finished with a two-coat plaster system.
Product Specifications
| Manufacturer | Birtley |
|---|---|
| Product reference | CB90 |
| Lintel type | Standard-duty cavity wall lintel |
| Cavity range | 90–105mm |
| Outer leaf | 100mm |
| Inner leaf | 100mm |
| Material | S275JR mild steel to BS EN 10025-2:2004 |
| Finish | 65µm hot-dip galvanised Supergalv coating to BS EN ISO 1461:2009 |
| Insulation | Factory-fitted expanded polystyrene (EPS), BREEAM A+ rating stated by Birtley |
| Inner leaf finish | Plaster key |
| Baseplate | None |
| Product standard | BS EN 845-2:2013+A1:2016 |
| Test standard | EN 846-9:2000/2016 |
| Fire rating stated by Birtley | 60 minutes with a two-coat plaster finish |
| Minimum end bearing | 150mm |
Available Lengths
Wade currently lists 17 CB90 lengths, from 750mm to 4800mm:
| Length | Product code |
|---|---|
| 750mm | CB900750 |
| 900mm | CB900900 |
| 1200mm | CB901200 |
| 1350mm | CB901350 |
| 1500mm | CB901500 |
| 1650mm | CB901650 |
| 1800mm | CB901800 |
| 2100mm | CB902100 |
| 2400mm | CB902400 |
| 2700mm | CB902700 |
| 3000mm | CB903000 |
| 3300mm | CB903300 |
| 3600mm | CB903600 |
| 3900mm | CB903900 |
| 4200mm | CB904200 |
| 4500mm | CB904500 |
| 4800mm | CB904800 |
Published Load and Profile Information
Birtley's online CB90 technical information publishes the following length bands, Safe Working Load (SWL/UDL), weight per metre and profile height:
| Length band | SWL/UDL | Weight | Height |
|---|---|---|---|
| 750–1200mm | 15kN | 5.8kg/m | 97mm |
| 1200–1350mm | 15kN | 5.9kg/m | 102mm |
| 1500–1650mm | 15kN | 7.3kg/m | 102mm |
| 1800–2100mm | 20kN | 8.3kg/m | 132mm |
| 2250–2400mm | 22kN | 10.1kg/m | 141mm |
| 2500mm | 26kN | 10.9kg/m | 157mm |
| 2700–3000mm | 26kN | 11.8kg/m | 181mm |
| 3150–3900mm | 26kN | 14.4kg/m | 197mm |
Installation Requirements
- Bed the lintel fully on bricklaying mortar.
- Provide a minimum end bearing of 150mm.
- For external wall installations, the lintel must be used with a cavity tray. Birtley specifies this requirement for external walls only.
Optional Finishes and Configurations
Birtley lists alternative material and configuration options for the CB90, including:
- Ultragalv 150µm coating or 304 stainless steel.
- Reduced-length outer flange, no rainwater drip or render mesh.
- No inner-leaf plaster key or a closer plate.
These are options rather than standard features of the lintel shown. Contact Wade to confirm which configurations can be supplied and whether they affect the price or lead time.
Technical Information
For full dimensions, load tables, declarations of performance and installation details, refer to Birtley's CB90 technical resources.
Frequently Asked Questions
What cavity size is the Birtley CB90 designed for?
The CB90 is designed for cavity widths between 90mm and 105mm, with 100mm inner and outer leaves.
Does the CB90 include insulation?
Yes. It includes factory-fitted expanded polystyrene (EPS) insulation. Birtley lists the insulation with a BREEAM A+ rating.
Does the CB90 have a baseplate?
No. The CB90 has no baseplate and includes a plaster key to the inner leaf.
What loads can the CB90 support?
Birtley publishes SWL/UDL values by lintel length band. The lintel is not suitable for point loads or concrete floors. Refer to the published table and confirm the design against the actual opening and loading arrangement.
What is the minimum end bearing?
Birtley specifies a minimum end bearing of 150mm.
Does the CB90 need a cavity tray?
Yes, for external wall installations. Birtley states that a cavity tray must be used on external walls.
What fire rating does the CB90 have?
Birtley states a 60-minute fire rating when the lintel is finished with a two-coat plaster system.
Are alternative finishes available?
Birtley lists Ultragalv 150µm coating and 304 stainless steel as alternative material options. Other configuration options are also listed. Contact Wade to confirm availability and pricing.
Need Help Choosing a 100mm Cavity Lintel?
Contact Wade Building Supplies for help checking cavity dimensions, lintel length, loading limits and the correct specification for your project.
