Lintel Type : Cavity Lintels
Cavity Width : 150-165mm
Lintel Duty : Standard Duty
Stressline
Stressline Standard Duty 150mm Cavity Lintel SL150
£65.00 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item

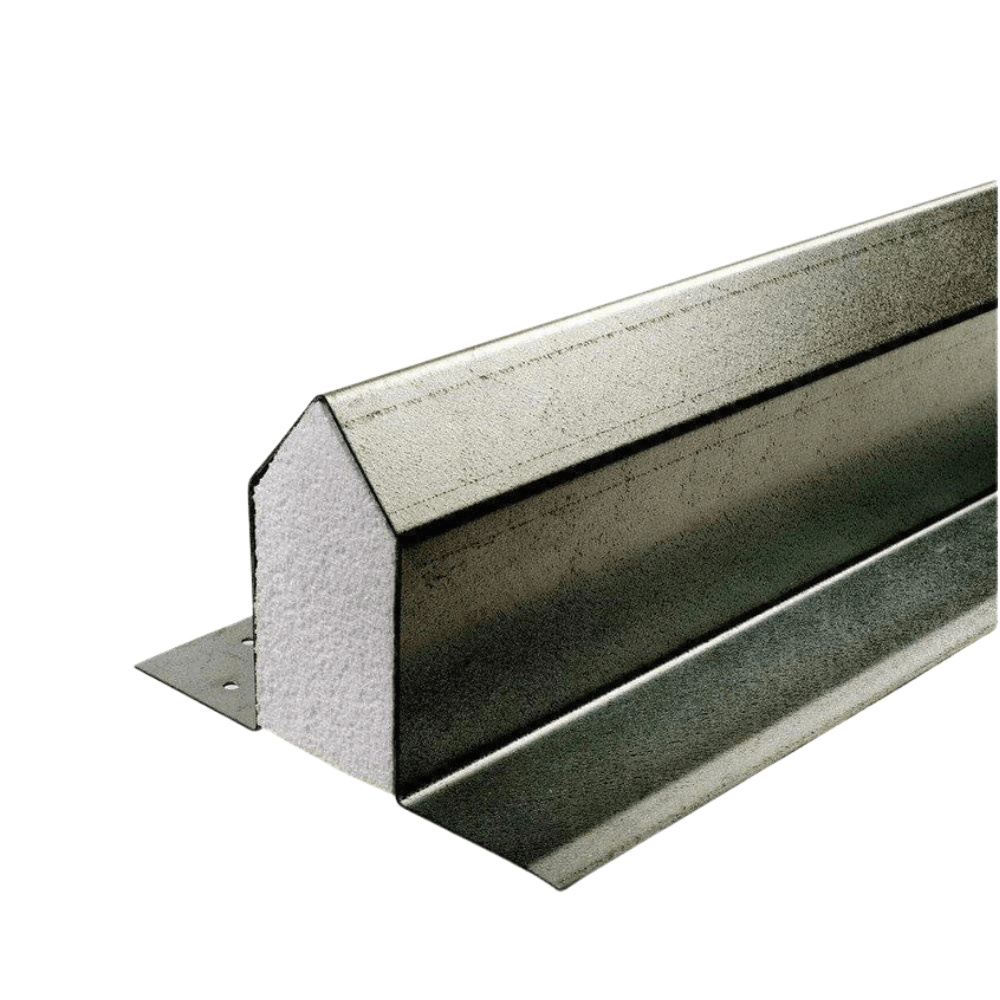

The Stressline Standard Duty 150mm Cavity Lintel SL150 is a galvanised steel lintel for masonry openings in 150mm cavity walls. Designed for a 100mm outer leaf and 100–115mm inner leaf, it features built-in insulation, a plaster key and a base plate to the inner flange. Choose from 15 lengths and confirm the appropriate lintel using Stressline's current load-span guidance.
Key Features
150mm cavity construction
Designed for 150mm cavity wall applications.
Standard-duty support
Intended for masonry loading within the manufacturer's stated capacity.
100–115mm inner leaf
Suitable for the stated inner leaf range and a 100mm outer leaf.
Built-in insulation
Integrated insulation helps reduce thermal bridging at the opening.
Plaster key
Built-in plaster key and inner flange base plate support the internal finish.
Galvanised steel
Corrosion-protected steel construction.
15 length options
Lengths from 900mm to 4800mm to suit different opening requirements.
Product Specifications
| Manufacturer | Stressline |
|---|---|
| Product code | SL150 |
| Type | Standard-duty cavity wall steel lintel |
| Nominal cavity | 150mm |
| Inner leaf | 100–115mm |
| Outer leaf | 100mm |
| Finish | Galvanised steel |
| Features | Built-in insulation, plaster key and inner flange base plate |
| Available lengths | 900mm, 1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm, 3000mm, 3300mm, 3600mm, 3900mm, 4200mm, 4500mm and 4800mm |
Typical Applications
The SL150 is used above masonry openings in 150mm cavity walls where a standard-duty lintel is appropriate. Check the cavity dimensions, wall leaves, opening span, bearing and imposed loads before specifying. For more demanding loading requirements, review the relevant medium-duty or extra-heavy-duty alternatives.
Technical Information

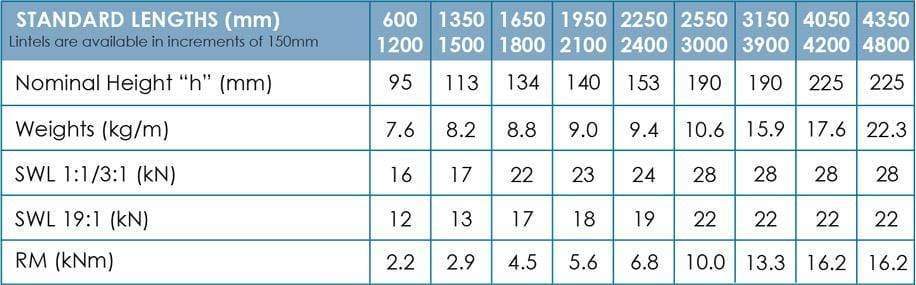

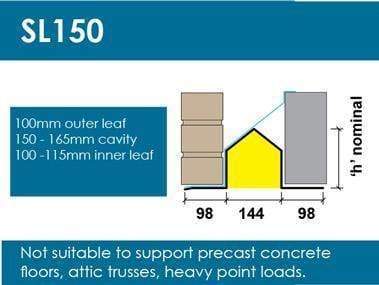

Load-span, section and application graphics are included in the product images. Refer to Stressline's current guidance when checking dimensions and structural suitability.
Frequently Asked Questions
What cavity width is the SL150 for?
The product is listed for 150mm cavity wall construction. Confirm the actual wall build-up against Stressline's current specification.
What leaf dimensions does it suit?
The product listing states a 100–115mm inner leaf and 100mm outer leaf.
Does the SL150 have insulation and a plaster key?
Yes. The existing product specification includes both built-in insulation and a plaster key.
What lengths are available?
There are 15 length variants from 900mm to 4800mm.
How do I know if standard duty is sufficient?
Check the opening span and supported loads against Stressline's load-span information. Seek technical advice for unusual or concentrated loads.
Need Help Choosing a 150mm Cavity Lintel?
Wade's lintel team can help with sizes, loading information and suitable alternatives.
