Lintel Type : Cavity Lintels
Cavity Width : 130-145mm
Lintel Duty : Standard Duty
Thermally Broken : No
Wide Inner Leaf? No
Stressline
Stressline Standard Duty 130mm Cavity Lintel SL130
£75.00 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item

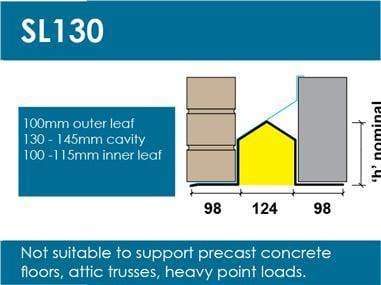

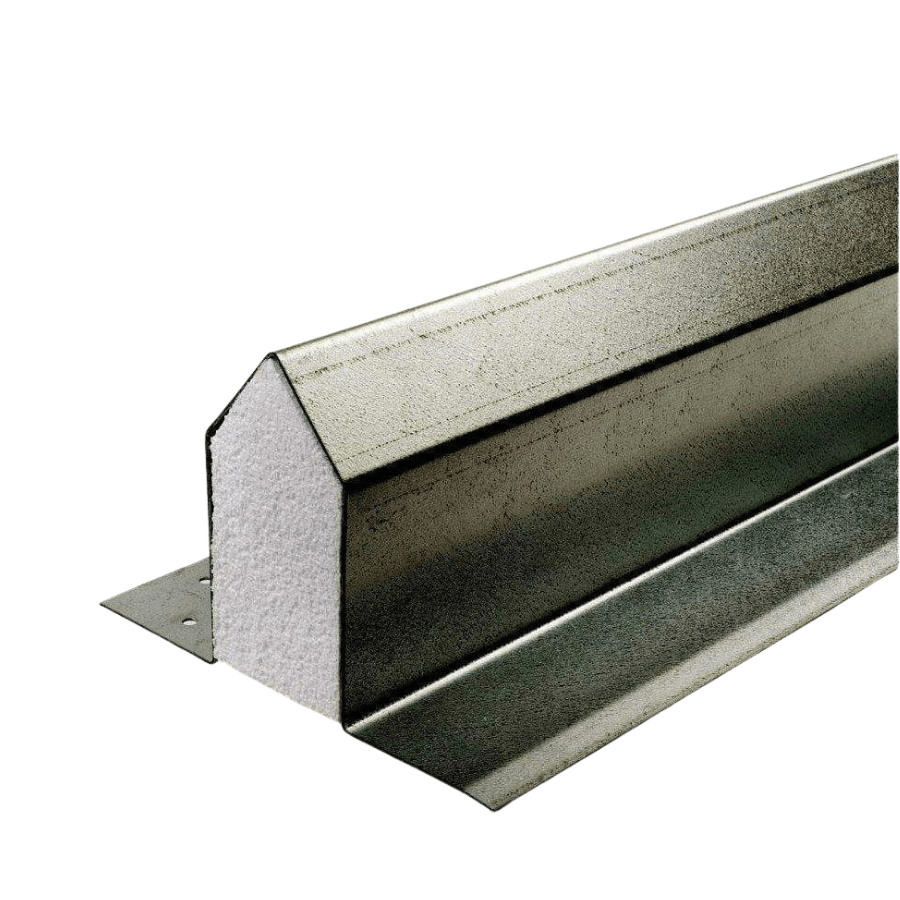

The Stressline Standard Duty 130mm Cavity Lintel SL130 is a galvanised steel cavity wall lintel designed for 130mm cavity construction. It features built-in insulation, a plaster key and a base plate to the inner flange. Available in lengths from 900mm to 4800mm, the SL130 provides support for suitable cavity wall applications. Check Stressline's current load-span information to confirm the correct length and suitability for your opening.
Key Features
130mm cavity wall
Designed for 130mm cavity wall construction.
Standard-duty design
For suitable cavity wall applications within the manufacturer's stated load capacity.
Built-in insulation
Integrated insulation forms part of the lintel construction and helps address thermal bridging.
Plaster key
Includes a built-in plaster key and a base plate to the inner flange for the internal finish.
Galvanised steel
The galvanised coating provides corrosion protection.
15 length options
Choose from lengths between 900mm and 4800mm to suit the opening.
Product Specifications
| Manufacturer | Stressline |
|---|---|
| Product code | SL130 |
| Lintel type | Standard-duty cavity wall lintel |
| Cavity width | 130mm |
| Material and finish | Galvanised steel |
| Features | Built-in insulation, plaster key and base plate to inner flange |
| Available lengths | 900mm, 1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm, 3000mm, 3300mm, 3600mm, 3900mm, 4200mm, 4500mm and 4800mm |
Typical Applications
The SL130 is intended for openings in 130mm cavity wall construction where a standard-duty cavity lintel is specified. Confirm the wall build-up, opening span, bearing conditions and supported loads against Stressline's technical information before selecting a length.
Technical Information

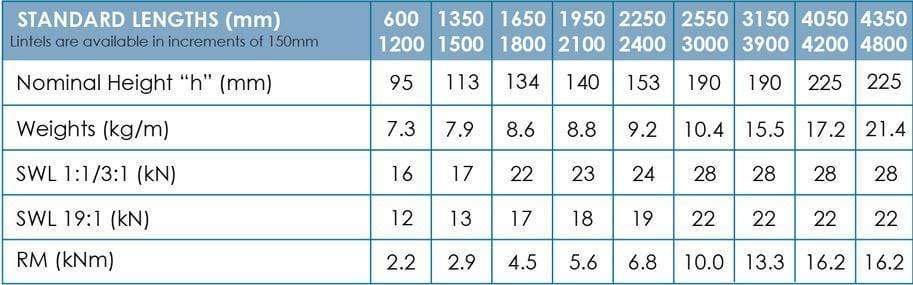

Stressline technical specification sheets and product drawings are available in the product media above. Refer to the manufacturer's current technical information for dimensions, load-span details and installation guidance.
Frequently Asked Questions
What cavity size is the SL130 designed for?
The SL130 is designed for 130mm cavity wall construction.
What type of lintel is the SL130?
It is a standard-duty galvanised steel cavity wall lintel.
Does it include insulation and a plaster key?
Yes. The product specification includes built-in insulation, a plaster key and a base plate to the inner flange.
Is the SL130 galvanised?
Yes. It has a galvanised steel finish.
What lengths are available?
The current Shopify listing offers 15 lengths from 900mm to 4800mm.
How do I choose the correct lintel?
Check the opening span, wall construction and supported loads against Stressline's current load-span information. Contact Wade if you need help checking the specification.
Need Help Choosing a 130mm Cavity Lintel?
Contact Wade Building Supplies for help checking cavity dimensions, lintel length, loading information and the right specification for your project.
