Stressline Standard Duty 100mm Single Leaf Angle Lintel SL100TR

Original price £0.00 - Original price £0.00
Original price £0.00
£29.00 - £227.00
Current price £29.00

Price includes VAT

Product Availability

In Stock

Single Leaf Angle Lintels are designed to Support External Solid Walls.

Easy to Install and Suitable for faced Brick / Block Walls

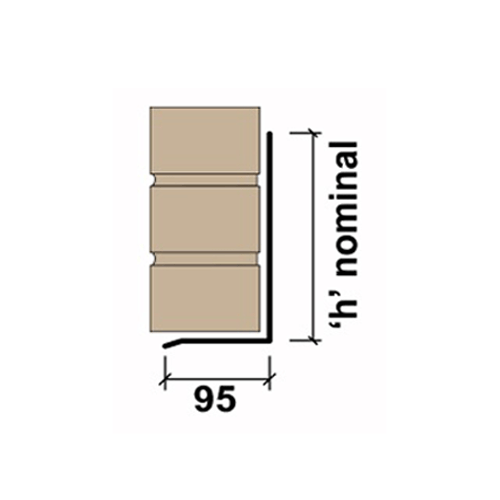

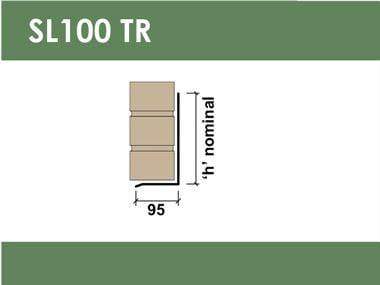

Also known as Angle Iron Lintels, the width is 102mm and the height will depend on the length.

For lengths 600mm to 1800mm the height will be 115mm, 2100mm and 2400mm it's 165mm. From 2700mm to our longest available length at 3900mm it's 225mm high.

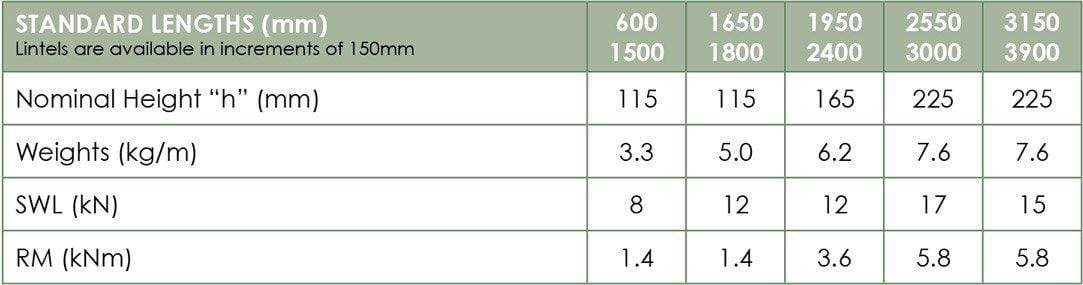

Safe Working Load and Weight Information


To avoid deflection and twisting, Lintels should be propped during construction.

Contact our Experts for any Questions on Fitting your Lintel.

Angle Lintel Key Features

  • 100mm External Solid Wall Lintel (Other Sizes Available)
  • Galvanised and Corrosion Protection
  • Suitable for Use under Various Wall Loading Conditions
  • It can be Manufactured with Reduced Outer Toe
  • Stressline Lintels
