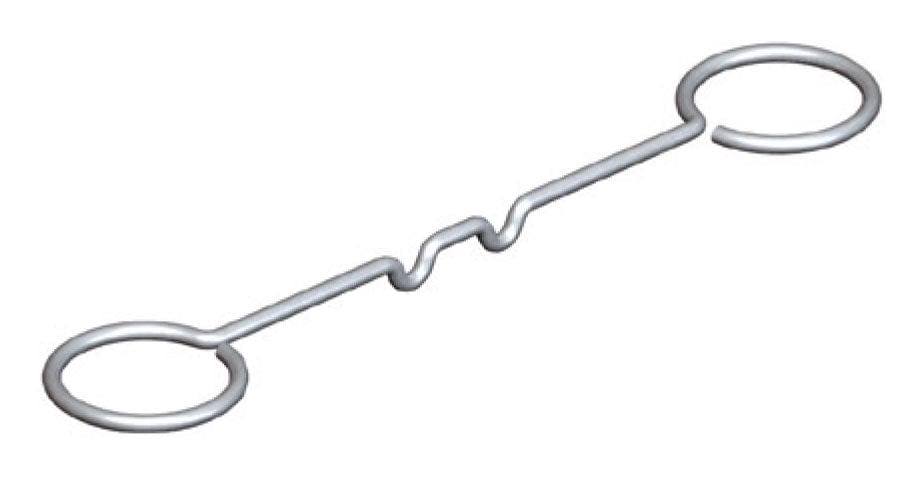

Expamet PT225 Type 4 Wall Ties 225mm - 250 Pack

Expamet PT225 Powertie Type 4 Housing Wall Ties are 225mm stainless steel cavity wall ties for 75–100mm cavities. They are commonly used in domestic cavity wall construction, extensions and party wall applications where a Type 4 housing tie is specified.

The PT225 is part of Expamet’s Power-Tie wall tie range and is designed for masonry cavity walls requiring a stainless steel Type 4 tie. For many standard housing projects, 225mm wall ties are the correct starting point for cavity widths up to 100mm, but the final selection should always follow the project specification, wall construction and exposure conditions.

Key Features

• Expamet PT225 Powertie wall tie
• 225mm Type 4 housing tie
• Suitable for 75–100mm cavity widths
• Stainless steel construction for corrosion resistance
• Type A to Part E of the Building Regulations for party wall construction
• Safety end design to reduce injury risk during handling and installation
• Supplied in a 250 pack

Specification

When to Use PT225 Wall Ties

PT225 wall ties are typically used where the cavity width is between 75mm and 100mm and the specification calls for a Type 4 housing tie. They are a common choice for domestic masonry cavity walls and extensions, subject to the project design and site conditions.

If your cavity is wider than 100mm, a longer wall tie may be required. Wade also stocks other Expamet wall ties for larger cavity widths, including 250mm and 275mm options.

Important Selection Note

Wall ties should not be selected by length alone. Before ordering, check the required tie type, cavity width, wall construction, building height, exposure conditions and any engineer, architect, building control or warranty-provider requirements.
