Temporary Fencing Pedestrian Gate - Digi Lock
Become a trade card holder and get a discount on this item
Pickup available at Tipton West Midlands
Usually ready in 4 hours
We recommend you read our returns policy before ordering.

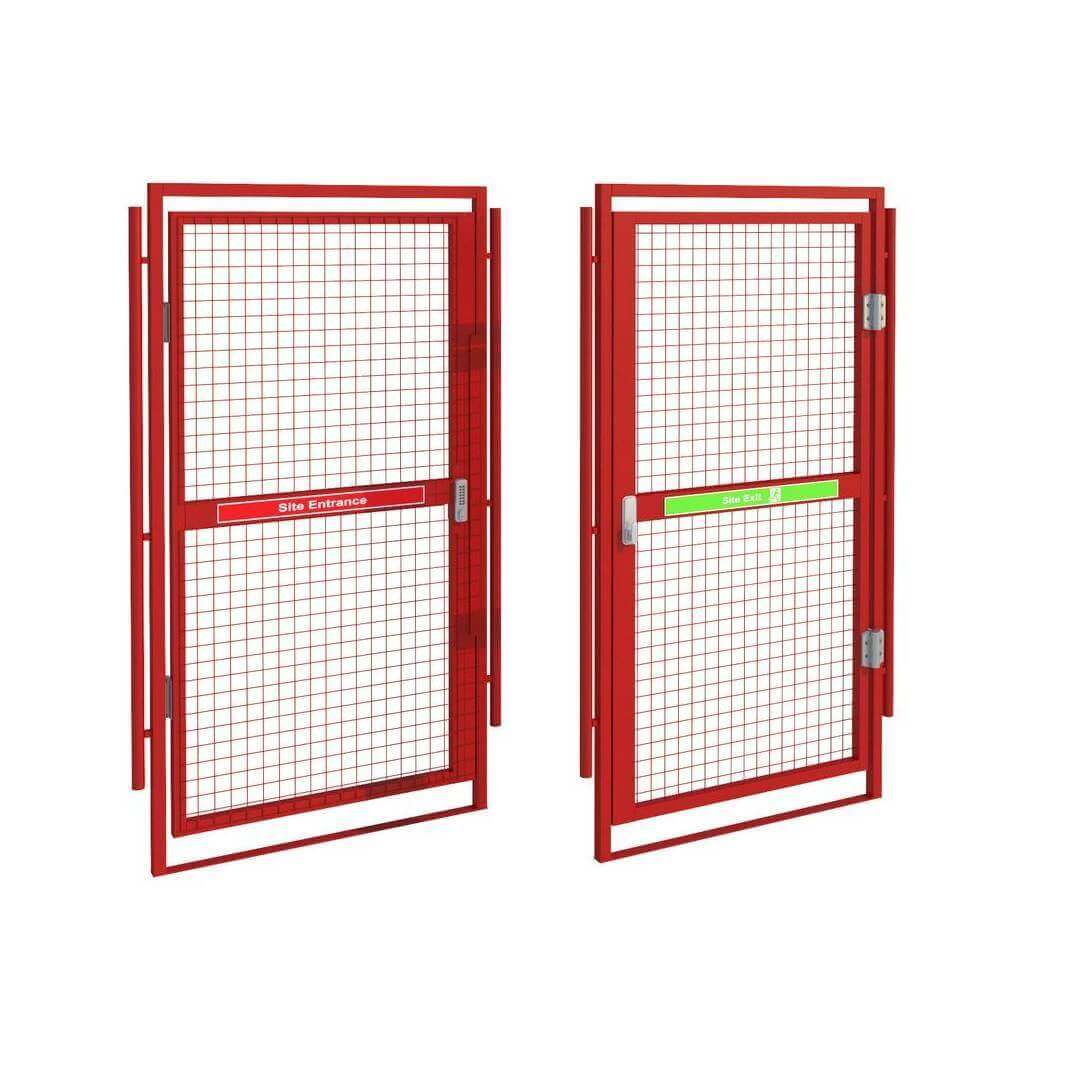

The Temporary Fencing Pedestrian Gate with Digi Lock provides a dedicated, keyless access point within a temporary fence perimeter. Its integrated four-digit mechanical combination lock allows authorised users to enter without carrying a physical key, making it useful on construction sites, developments, roadworks, events and temporary compounds. The gate is manufactured from pre-galvanised S235 carbon steel and finished with a red polyester powder coating in RAL 3020 (Guards Red). At approximately 1.3m wide and 2.1m high, it connects into a standard temporary fence line using suitable couplers.
Digi Lock Pedestrian Gate at a Glance
Key Features
Four-digit digital combination lock
Provides keyless entry using a four-digit code, avoiding the need to issue and manage physical keys.
Standalone pedestrian gate
Creates a dedicated personnel entrance within an existing temporary fence perimeter.
Pre-galvanised S235 carbon steel
Manufactured from S235 carbon steel with a pre-galvanised finish.
Red powder-coated finish
Finished in polyester powder coating, RAL 3020 (Guards Red), for a clearly identifiable access point.
Fits standard temporary fencing
Designed to connect into a standard temporary fence line using suitable couplers.
Heavy-duty framed gate
A substantial framed gate weighing 72kg. Allow for suitable handling and installation support.
Product Specifications
| Product type | Standalone temporary fencing pedestrian gate |
|---|---|
| Lock | Four-digit combination digital lock |
| Overall width | 1282mm |
| Overall height | 2080mm |
| Weight | 72kg |
| Material | S235 carbon steel |
| Base material finish | Pre-galvanised |
| Topcoat | Polyester powder coating |
| Colour | RAL 3020 – Guards Red |

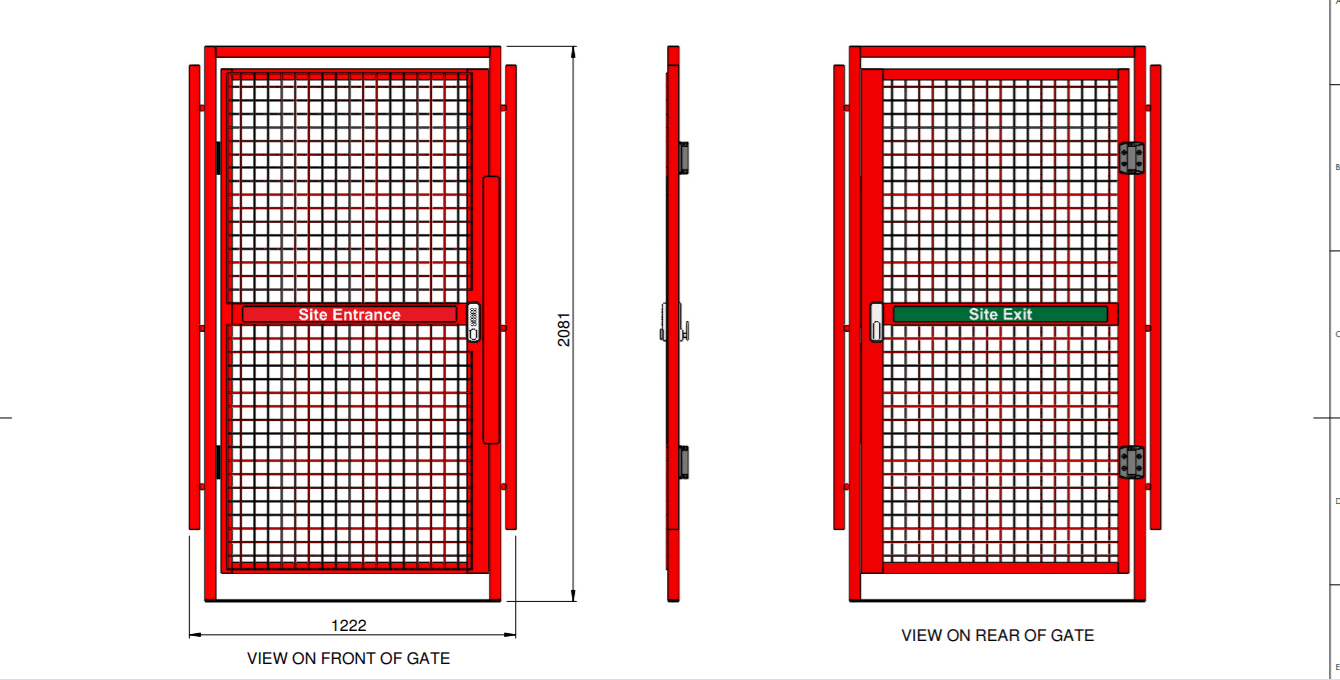

| Manufacturer drawing reference | 07552035 |
| Wade product SKU | PREMPEDGATEDIGI |
| Installation | Connects to a standard temporary fence line using suitable couplers |
Dimensions and construction details are taken from the gate's manufacturer drawing. The rounded dimensions used in the product highlights are for quick reference.
Where to Use a Digi Lock Pedestrian Gate
The gate is intended for temporary perimeter systems where regular pedestrian access needs to be controlled without issuing physical keys to every authorised user.
Construction sites
Provide controlled pedestrian access for site personnel, contractors and authorised visitors.
Development sites
Manage personnel access around residential and commercial construction projects.
Roadworks and civil engineering
Create a defined pedestrian entrance within temporary fencing around works areas.
Events and temporary compounds
Provide an access point where multiple authorised users need regular entry through a temporary perimeter.
Digital Lock or Standard Pedestrian Gate?
Choose the Digi Lock gate when keyless access is useful and several authorised users may need regular entry. The four-digit combination avoids managing physical keys and can be changed in line with the site's access arrangements.
For a simpler access point with a sliding latch, see the Temporary Fencing Anti-Climb Pedestrian Gate. For a pedestrian gate built directly into a 3.5m anti-climb panel, see the Pedestrian Gate in Anti-Climb Panel.
Installation and Site Planning
The gate is designed to connect into a standard temporary fence line using suitable couplers. The gate is a substantial 72kg unit, so plan handling, positioning and installation accordingly.
- Use compatible temporary fence couplers to connect the gate to the adjoining panels.
- Provide suitable temporary fence feet and support for the complete gate and fence arrangement.
- Check the gate is securely connected and the lock operates correctly before the access point is put into use.
- Consider ground conditions, fence configuration, exposure and intended use when planning the complete perimeter.
- Provide suitable stabilisation and ballast where required by the site conditions.
Technical Information
For the manufacturer's drawing and further product details, use the Digi Lock gate datasheet or contact Wade's fencing team.
Frequently Asked Questions
What is a Digi Lock pedestrian gate?
It is a standalone temporary fencing pedestrian gate fitted with a four-digit combination lock, providing keyless access through a temporary fence perimeter.
What size is the gate?
The manufacturer drawing gives an overall width of 1282mm and height of 2080mm. These are commonly rounded to approximately 1.3m wide and 2.1m high.
How much does the gate weigh?
The manufacturer drawing lists a weight of 72kg.
What is the gate made from?
It is manufactured from S235 carbon steel with a pre-galvanised finish and a red polyester powder coat in RAL 3020 (Guards Red).
How does the four-digit lock work?
The integrated mechanical combination lock allows authorised users to enter using a four-digit code rather than a physical key. Follow the lock's supplied instructions when setting or changing the combination.
Does the gate connect to standard temporary fencing?
Yes. It is designed to connect into a standard temporary fence line using suitable couplers.
Is this an integrated gate panel?
No. This is a standalone framed pedestrian gate. An integrated pedestrian gate is built directly into a temporary fence panel.
Are couplers and fence feet included?
The gate is designed to be fitted using suitable couplers and supported as part of a temporary fence system. Check the order contents with Wade before purchasing, as accessories should not be assumed to be included.
Need a Keyless Temporary Site Entrance?
Speak to Wade about Digi Lock pedestrian gates, temporary fence panels, couplers, feet and the components needed for your site perimeter.
