WADE BUILDING SUPPLIES | CATNIC LINTEL CG150 100 CAVITY WALL LINTEL

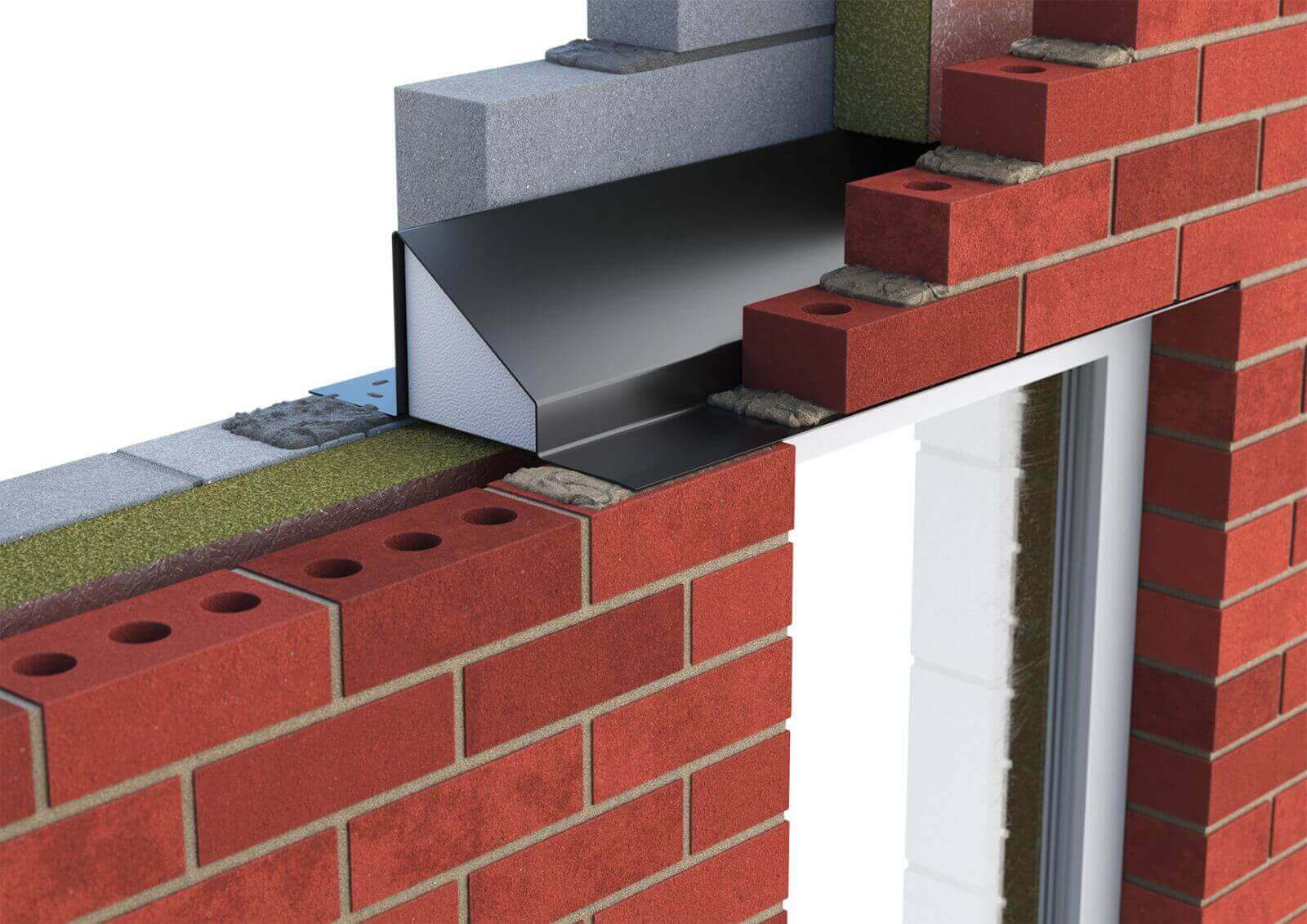

wade building supplies | fitted catnic standard duty image

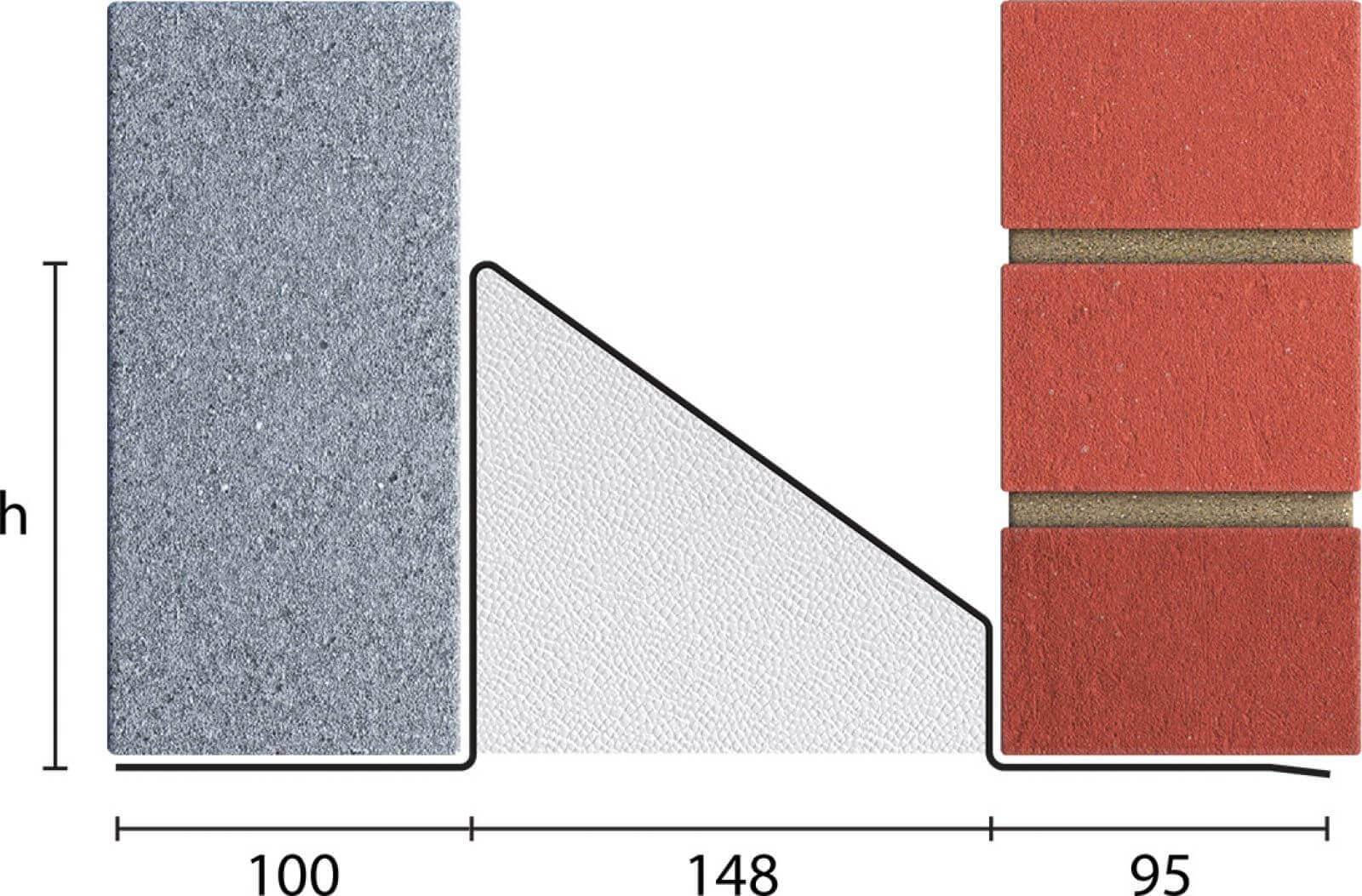

wade building supplies | catnic cg150 110 cavity lintel specification image

WADE BUILDING SUPPLIES | CATNIC CAVITY LINTELS LOGO OFFICIAL

Lintel Type : Cavity Lintels

Cavity Width : 150-165mm

Lintel Duty : Standard Duty

Thermally Broken : No

Wide Inner Leaf? No

Catnic

Catnic 150mm Cavity Lintel CG150/100

£89.40

Cavity Lintel

£74.50 (ex VAT)

VAT included. Shipping calculated at checkout.

Product Availability

Express Delivery Available

Product variants

Quantity

Request a Bulk Quote

Pickup available at Tipton West Midlands

Usually ready in 4 hours

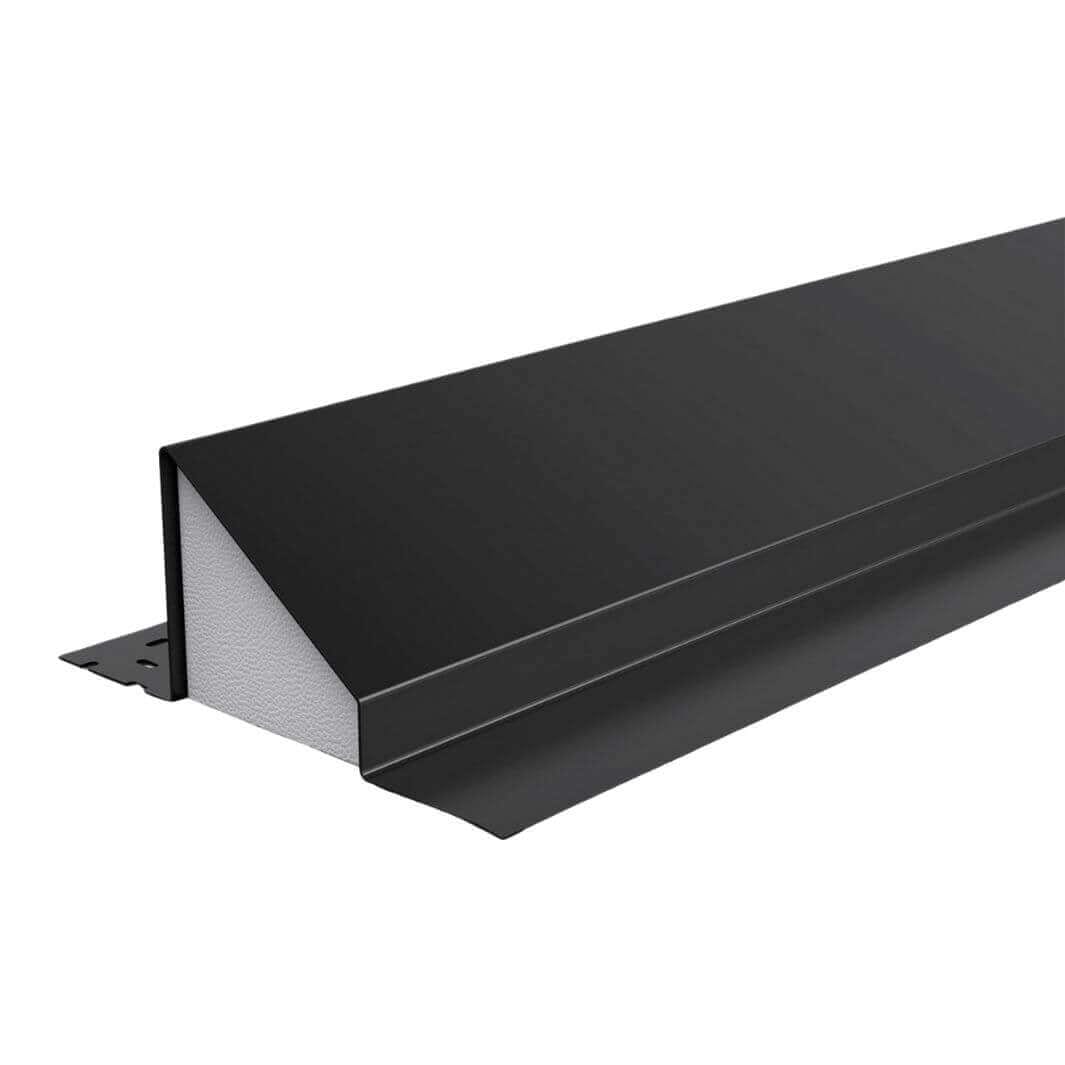

The CG150 Catnic Cavity Lintel is designed for use with 150mm to 165mm cavities, offering an open-back configuration for improved installation and performance. It features continuous insulation to enhance thermal efficiency and reduce cold bridging, making it a reliable option for maintaining a building's overall energy performance.

Constructed from powder-coated galvanised steel, the lintel is protected with duplex corrosion resistance to ensure durability. An integral plaster key with staggered slots is applied to the inner flange for efficient plaster adhesion, facilitating smoother finishes during construction.

Available in various lengths starting from 750mm, the CG150/100 Standard Duty Lintel is ideal for supporting a triangulated masonry load, as well as a uniformly distributed masonry load. It is suitable for use with inner leaf masonry of 100-115mm thickness and is compatible with fair-faced inner leaf masonry.

Key Features:

Built-in damp proof course (DPC)
Integral plaster key
Continuous insulation for thermal efficiency
Supports triangulated and uniformly distributed masonry loads
Compatible with 100-115mm inner leaf thickness and 150-165mm cavity width
Suitable for fair-faced inner leaf masonry

Click here for Catnic Lintel Selector
