Catnic TS150/100 150mm Thermally Broken Cavity Lintel

Catnic TS150/100 Standard Duty Thermally Broken Cavity Lintel — 100mm Cavity

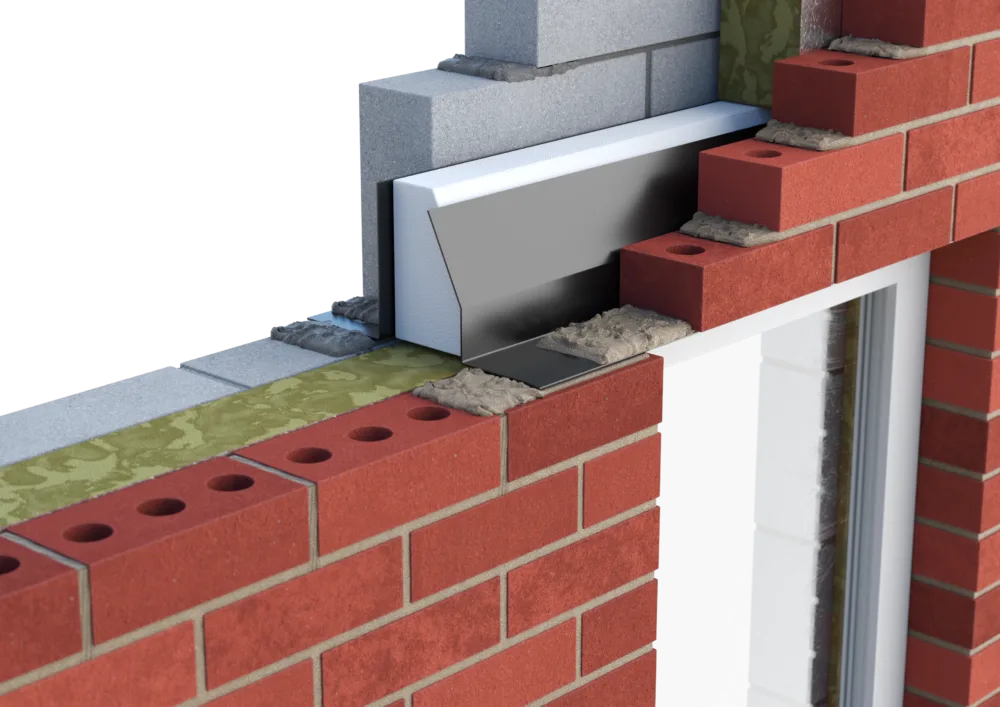

The Catnic TS150/100 is a standard duty thermally broken steel cavity wall lintel designed for 150mm cavity construction with a 100mm inner leaf. Featuring a complete thermal break and full insulation, it significantly reduces cold bridging at the lintel position, supporting compliance with Part L Building Regulations.

The open back profile allows masonry to be built up continuously on both the outer and inner leaf, and fair-face inner leaf compatibility makes it suitable for exposed blockwork finishes. Available in 8 lengths from 750mm to 2100mm, it is engineered to support typical masonry, timber floor, and roof loads found in most buildings.

Key Features

• Standard duty rating — supports masonry, timber floor, and roof loads
• Complete thermal break with full insulation — minimises cold bridging
• Open back profile — allows continuous masonry build-up on both leaves
• Suitable for fair-face inner leaf masonry
• Integral plaster key for easy internal finishing
• Catnic signature black powder coating over hot-dip galvanised steel
• Supports Part L Building Regulations compliance
• Cavity: 150mm | Inner leaf: 100mm
• Available lengths: 750mm, 900mm, 1050mm, 1200mm, 1350mm, 1650mm, 1950mm, 2100mm
• TS150/100 Datasheet

Typical Applications

• Standard openings in 150mm cavity masonry wall construction
• New build residential and commercial projects requiring Part L compliant lintels
• Projects with masonry, timber floor, or roof loads over openings
• Fair-face inner leaf masonry finishes

Need help selecting the right Catnic lintel? Contact our lintel experts for advice and nationwide delivery.
