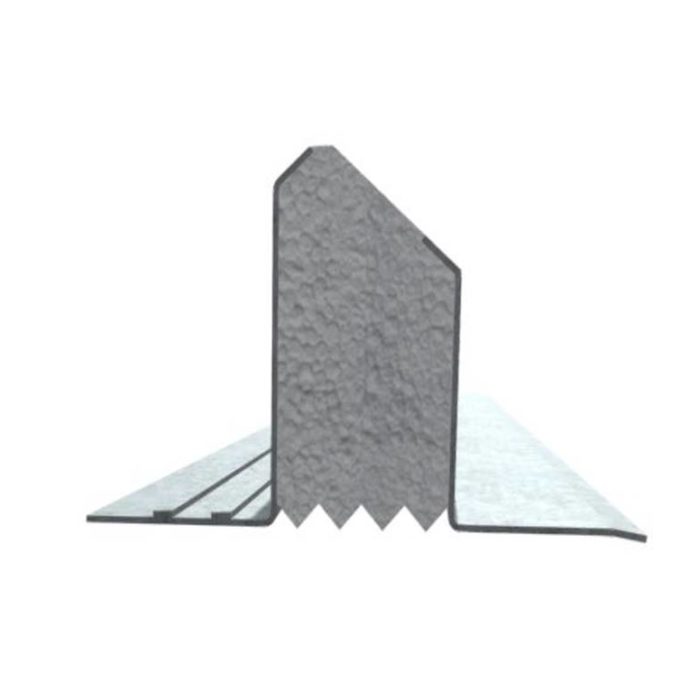

Birtley 90mm ST90 Thermally Broken Cavity Lintel

Birtley Supatherm ST90 Thermally Broken Cavity Wall Lintel — 90mm Cavity

The Birtley Supatherm ST90 is a standard duty thermally broken cavity wall lintel designed for 90mm cavity construction. Delivering up to 80% reduction in heat loss compared with standard cavity wall lintels, the ST90 helps meet Part L Building Regulations and the Future Homes Standard in standard cavity wall builds.

Available in 8 lengths from 750mm to 2100mm, the ST90 suits a wide range of standard opening widths and avoids the propping typically associated with single leaf lintels. Suitable for all types of masonry and cavity wall construction.

Note: Not suitable for point loads or concrete floors.

Key Features

• Up to 80% reduction in heat loss vs standard cavity wall lintels
• Thermally broken design — minimises cold bridging at the lintel position
• Supports compliance with Part L Building Regulations and the Future Homes Standard
• Suitable for all types of masonry and cavity wall construction
• Avoids propping associated with single leaf lintels
• Cavity width: 90mm
• Available lengths: 750mm, 1050mm, 1200mm, 1350mm, 1500mm, 1650mm, 1950mm, 2100mm
• Manufactured by Birtley to BS EN 845-2 standards

Typical Applications

• Standard openings in cavity masonry wall construction with 90–105mm cavities
• New build residential projects targeting Part L and Future Homes Standard compliance
• Extensions and renovations requiring thermally efficient cavity lintels
