Lintel Type : Cavity Lintels
Cavity Width : 90-105mm
Lintel Duty : Heavy Duty
Thermally Broken : No
Wide Inner Leaf? No

Catnic

Catnic Heavy Duty 100mm Cavity Lintel CH90/100

£88.00
Cavity Lintel

£73.33 (ex VAT)

Log in for Trade Pricing

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

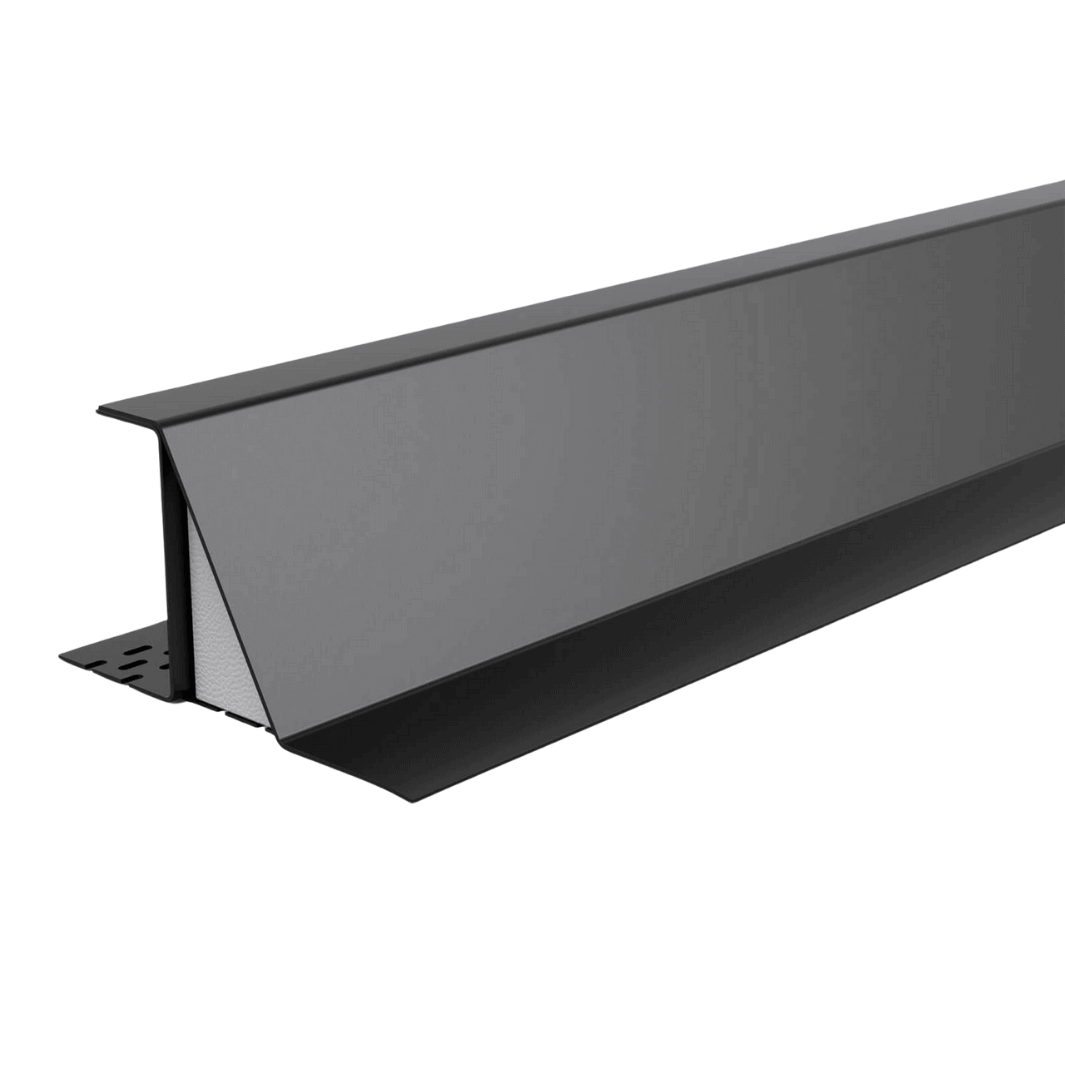

Catnic Heavy Duty 100mm Cavity Lintel CH90/100

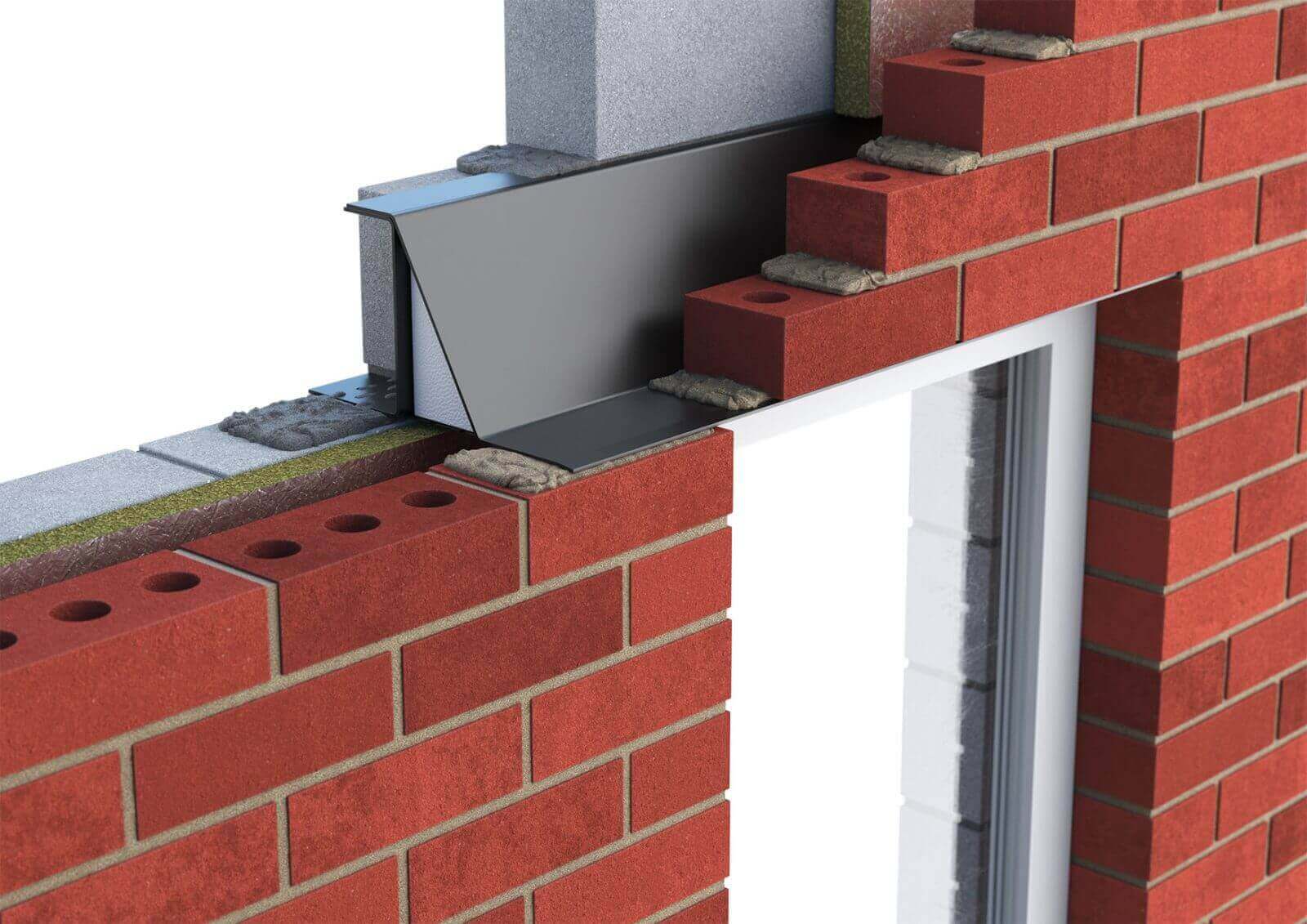

The Catnic CH90/100 is a Heavy Duty cavity wall lintel designed to support typical masonry, timber floor and roof loads. It features continuous insulation, an integral plaster key and built-in DPC, with masonry built upon both the outer and inner leaf.

Key Features

✓Built-In DPC
Built-in damp proof course helps save construction time.
✓Integral Plaster Key
Integral plaster key for plaster finishes.
✓Continuous Insulation
Continuous insulation helps minimise thermal bridging.
✓Heavy Duty Loading
Suitable for uniformly distributed masonry loads, distributed timber floor and roof loads, attic truss loads and larger-span multiple truss loads.
✓Fair Faced Inner Leaf
Suitable for fair faced inner leaf masonry.
✓Duplex Corrosion Protection
Catnic linings are formed from galvanised steel and then powder-coated for additional protection.

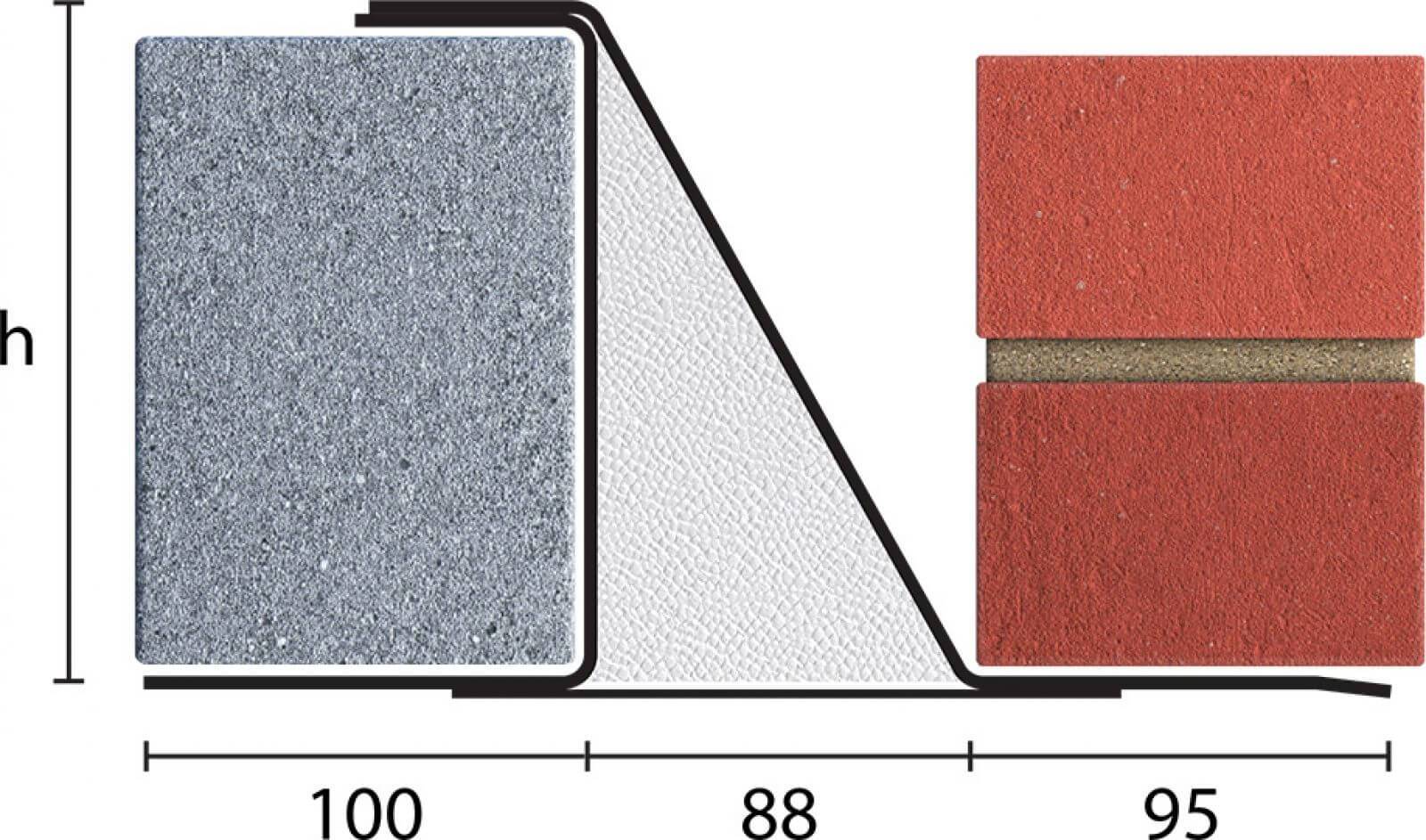

Dimensions & Specification

Manufacturer Catnic
Product Code CH90/100
Wall Construction Cavity Wall
Outer Leaf 100–102mm
Cavity 90–105mm
Inner Leaf 100–115mm
Loading Conditions Heavy Duty
Nominal Height 158mm
Standard Lengths 900mm–2400mm in 150mm increments
End Bearings Nominal 150mm minimum

Length, SWL & Weight

Product Code Length SWL (kN) Weight Height
CH90/1000900 900mm 32 10.12kg 158mm
CH90/1001050 1050mm 32 11.80kg 158mm
CH90/1001200 1200mm 32 13.49kg 158mm
CH90/1001350 1350mm 32 15.17kg 158mm
CH90/1001500 1500mm 32 16.86kg 158mm
CH90/1001650 1650mm 32 18.55kg 158mm
CH90/1001800 1800mm 32 20.23kg 158mm
CH90/1001950 1950mm 48 27.40kg 158mm
CH90/1002100 2100mm 48 29.51kg 158mm
CH90/1002250 2250mm 45 31.61kg 158mm
CH90/1002400 2400mm 45 33.72kg 158mm

SWL note: Safe working load is based on the total UDL (uniformly distributed load) over maximum span using 150mm end bearings. All load ratios are shown inner to outer.

Typical Applications & Installation Notes

The CH90/100 is suitable for fair faced inner leaf masonry and supports uniformly distributed masonry loads, distributed timber floor and roof loads, attic truss loads, larger-span multiple truss loads and triangulated masonry load.

  • Both leaves are raised together and require one block course before installation of the floor or roof.
  • It is essential to use nominal 150mm end bearings.
  • When using Catnic CH and CX Open Back ranges with concrete floors, ensure the blockwork is built tight against the inner vertical face and add a mortar joint to the top of the blockwork so floor units have an even spread over the inner flange of the lintel.
Need a longer lintel?

If you need longer than 2400mm, the CX90/100 Extra Heavy Duty Lintel → is available in longer lengths up to 4800mm.

Catnic CH90/100 Video Guide

Technical Support

We have a Team of Technical Experts. If you have any questions, feel free to click below or contact our Team on our Chat →

Select your Lintel using the Catnic Lintels Selector →

Need Help Selecting the Right Cavity Lintel?

Wade's lintel experts can help confirm the correct size, cavity width, loading requirement and application.

Contact Wade →

Frequently Asked Questions

What cavity width is the CH90/100 designed for?

The CH90/100 is designed for 90–105mm cavities, with a 100–102mm outer leaf and 100–115mm inner leaf.

What lengths are available?

The CH90/100 is available in 900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1650mm, 1800mm, 1950mm, 2100mm, 2250mm and 2400mm lengths.

What end bearing is required?

Nominal 150mm end bearings are essential.

Can the CH90/100 support concrete floors?

Yes. The CH90/100 supports concrete floors, subject to the manufacturer's installation requirements. With concrete floors, ensure blockwork is tight against the inner vertical face and use a mortar joint at the top of the blockwork so floor units have an even spread over the inner flange.

What if I need a lintel longer than 2400mm?

The CX90/100 Extra Heavy Duty Lintel is available in longer lengths up to 4800mm.
