Lintel Type : Cavity Lintels
Cavity Width : 70-85mm
Lintel Duty : Heavy Duty
Thermally Broken : No
Wide Inner Leaf? No

Catnic

Catnic Heavy Duty 70mm Cavity Lintel CH70/100

£71.00
Cavity Lintel

£59.16 (ex VAT)

Log in for Trade Pricing

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

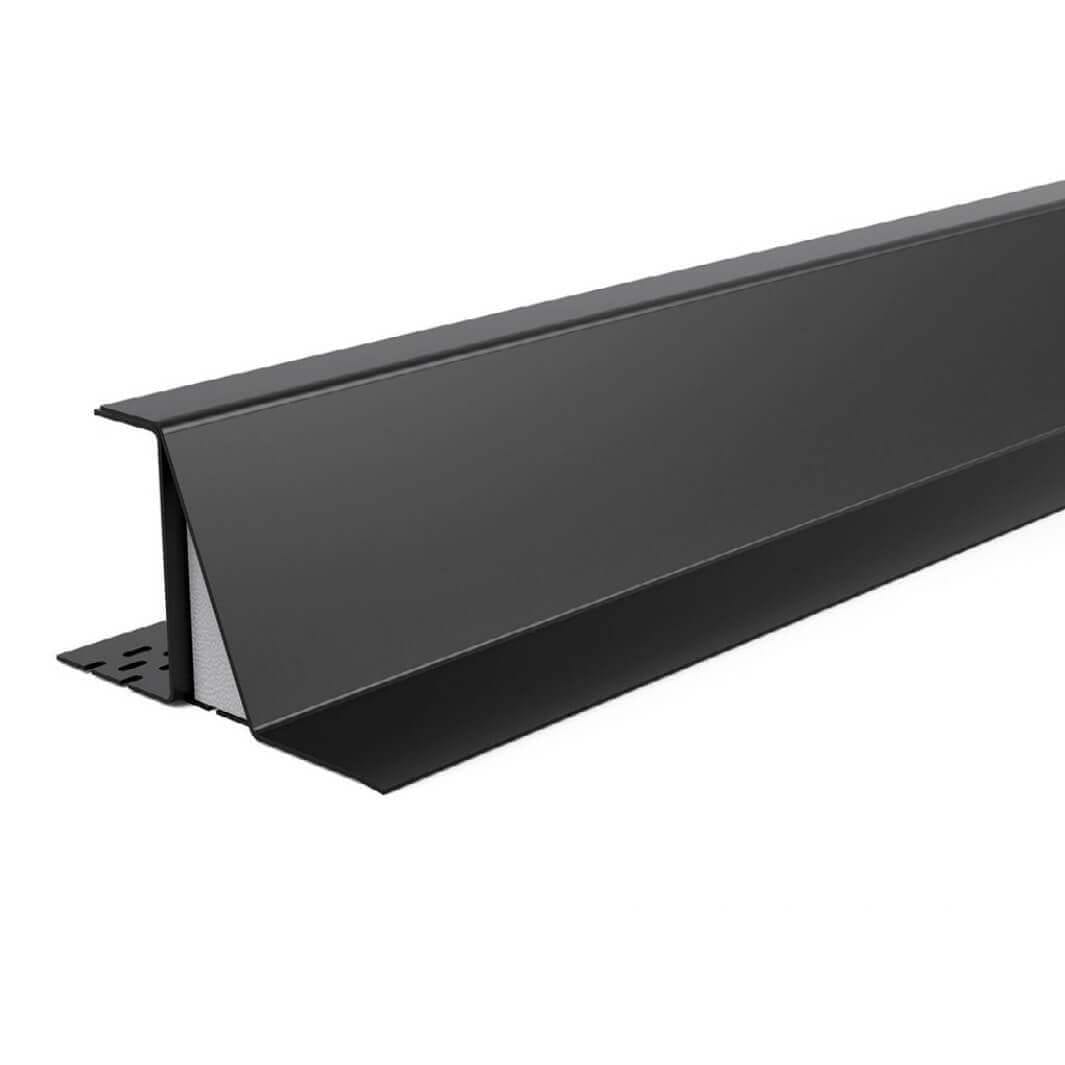

Catnic CH70/100 Heavy Duty Cavity Wall Lintel

The Catnic CH70/100 is a heavy duty steel lintel for 70–85mm cavity wall construction with 100–115mm inner leaf masonry. Its open-back profile allows masonry to be built continuously on both the outer and inner leaves.

Manufactured from galvanised steel and supplied fully insulated, the CH70/100 incorporates an integral plaster key and built-in DPC profile. It is designed for typical masonry, timber floor and roof loads, and is suitable for fairfaced inner leaf masonry.

Key Features

Heavy DutyDesigned for heavy duty cavity wall applications.
70–85mm CavitySuitable for 70–85mm cavity widths with 100–115mm inner leaf masonry.

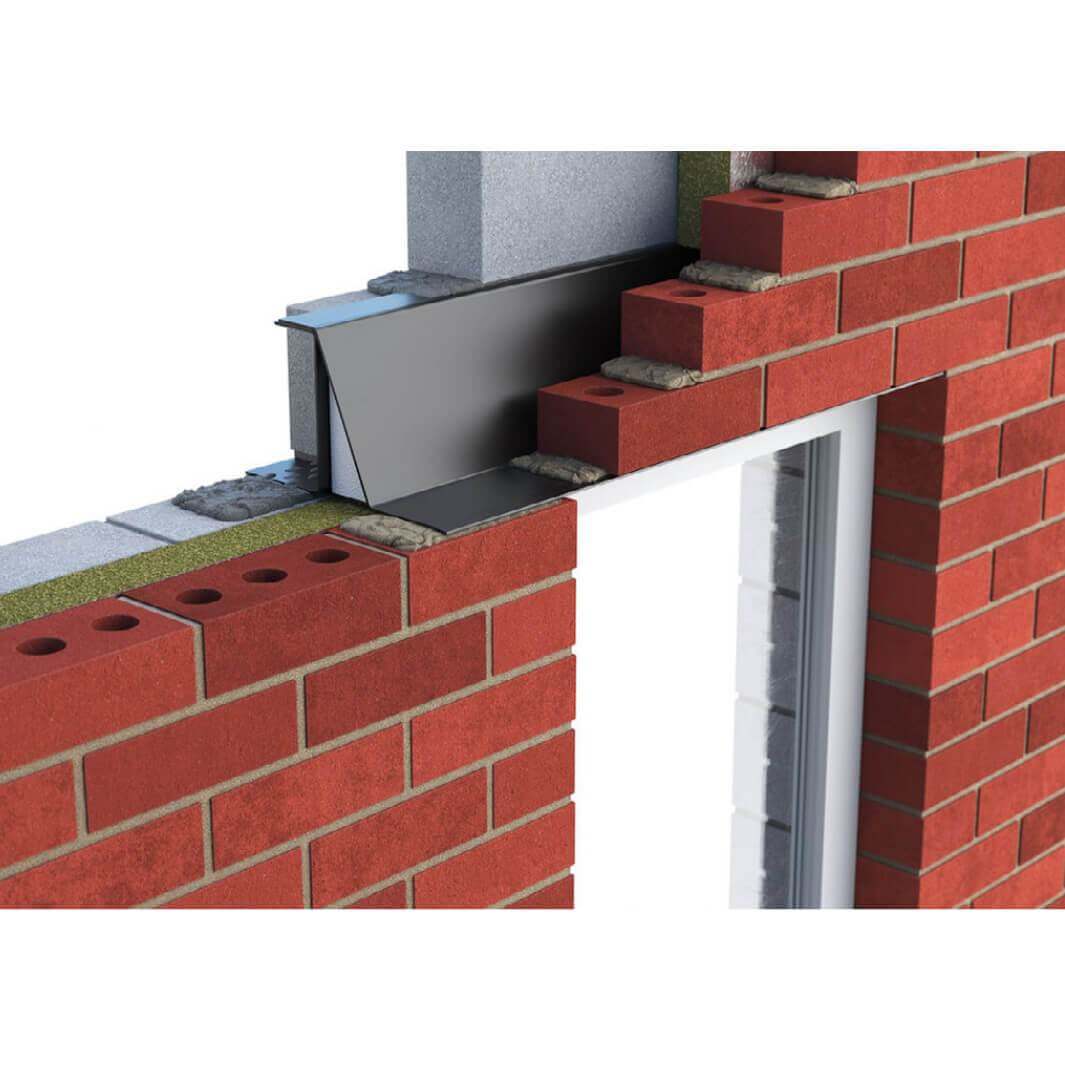

Open-Back ProfileAllows masonry to be built continuously on both the outer and inner leaves.
Built-In DPCIntegrated DPC profile helps manage water entering the cavity.
Integral Plaster KeyProvides a key for internal plaster finishes.
Integral InsulationFully insulated construction helps reduce thermal bridging at the opening.
Galvanised SteelManufactured from galvanised steel with Catnic's powder-coated finish.
Fairfaced Inner LeafSuitable for fairfaced inner leaf masonry.

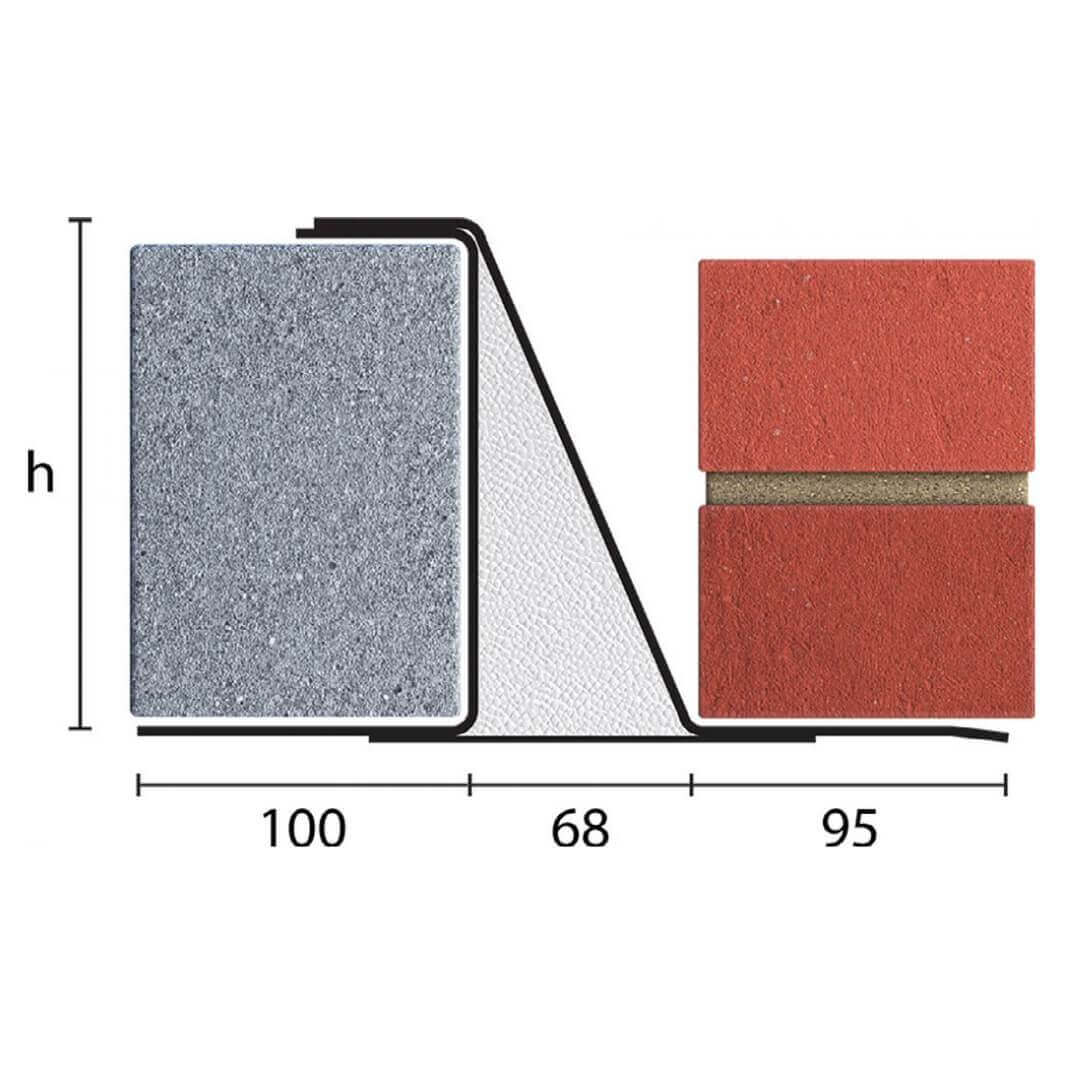

Dimensions & Specification

Manufacturer Catnic
Product Code CH70/100
Lintel Type Heavy Duty Cavity Wall Lintel
Wall Construction Cavity wall
Outer Leaf 100–102mm
Cavity Width 70–85mm
Inner Leaf 100–115mm
Nominal Height 158mm
Standard Lengths 900–2400mm in 150mm increments
Safe Working Load 32kN for 900–1800mm; 48kN at 1950–2100mm; 45kN at 2250–2400mm
Finish Galvanised steel with Catnic powder coating
Insulation Integral / fully insulated
Plaster Key Integral
DPC Built-in DPC profile

Typical Applications

The CH70/100 is designed for heavy duty openings in cavity wall construction where the cavity is 70–85mm and the inner leaf is 100–115mm. It supports typical masonry, timber floor and roof loads and is suitable for fairfaced inner leaf masonry, subject to the applicable loading and installation requirements.

Installation & Technical Notes

150mm minimum end bearing: Catnic's published SWL data is based on 150mm end bearings. Ensure the lintel is installed with the required bearing for the application.

Build both leaves together: Follow the manufacturer's installation sequence and ensure the masonry is built correctly around the lintel.

Concrete floors: When using Catnic CH and CX Open Back ranges with concrete floors, Catnic states that blockwork should be built tight against the inner vertical face, with a mortar joint at the top of the blockwork so floor units have an even spread over the inner flange.

Load selection: Safe working load varies by lintel length. Select the correct CH70/100 length using the manufacturer's load/span information.

Why choose the Catnic CH70/100?

The CH70/100 combines heavy duty structural support with practical cavity wall features including a built-in DPC, integral insulation, plaster key and open-back profile. It is a suitable option where a 70–85mm cavity and 100–115mm inner leaf match the project specification.

Need help selecting the correct Catnic lintel? Speak to Wade's lintel team for technical guidance.
