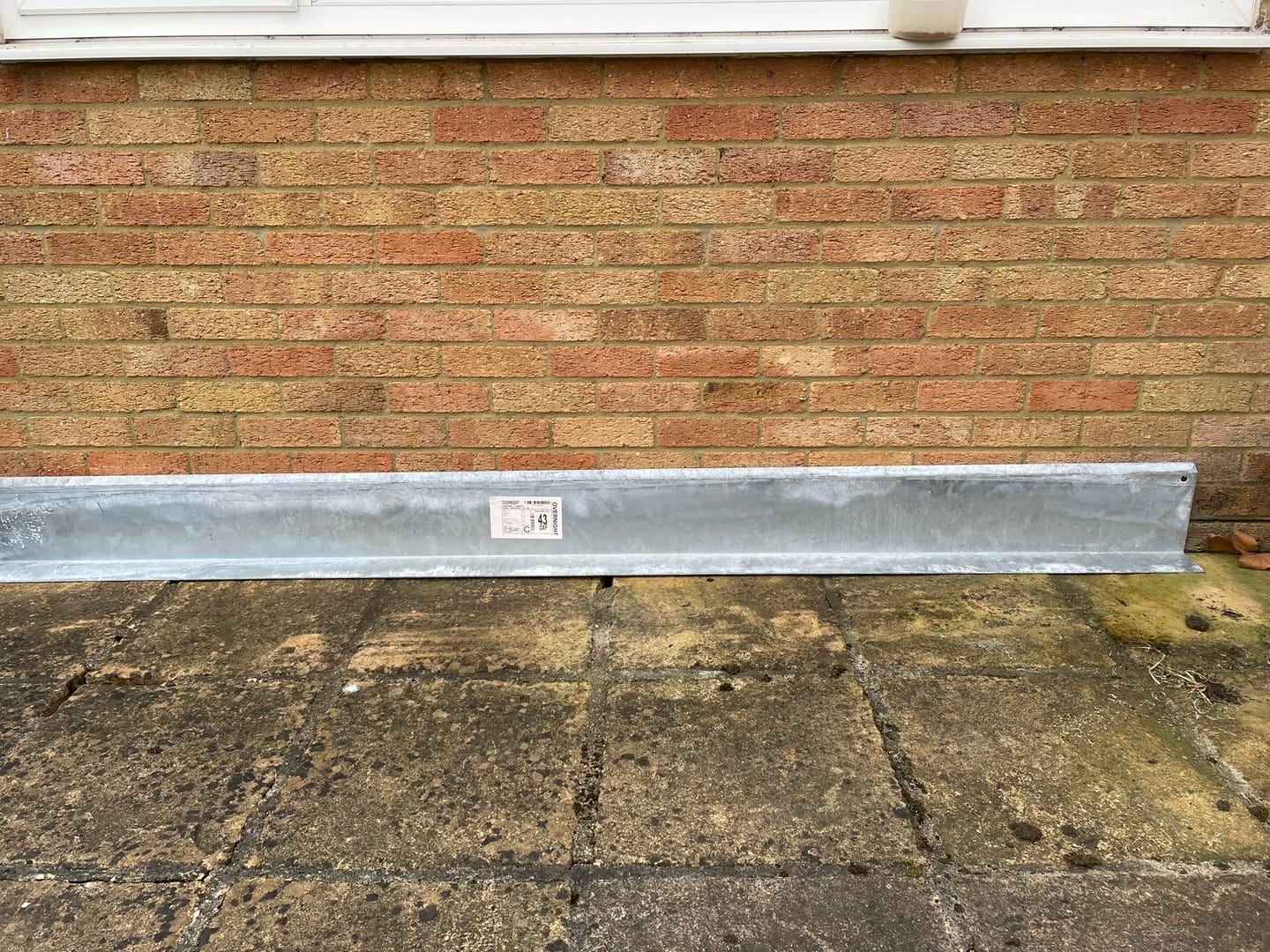

Will send video when installed.
Lintel Type : L Angle
Birtley
Birtley 100mm Single Leaf Angle Lintel LA
£22.00
/
Single Leaf Lintel
£18.33 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item
The Birtley LA is a standard duty single leaf angle lintel for supporting 100mm external fair-faced masonry over openings. Its L-shaped profile supports the outer leaf independently, and its Supergalv finish is applied by hot-dip galvanising after fabrication.
Choose from the lengths shown in the product options, from 750mm to 3900mm. Select the lintel to suit the opening, required end bearings and design load; load capacity and section height vary with length.
Birtley LA specification
- Application: standard duty lintel for a 100mm external masonry leaf.
- Profile: single leaf steel angle lintel.
- Material: structural-grade S275JR mild steel.
- Finish: 65µm Supergalv hot-dip galvanised coating, applied after fabrication.
- Product standard: BS EN 845-2:2013+A1:2016.
- End bearings: allow a minimum of 150mm at each end in accordance with Birtley’s general installation guidance, unless a different arrangement has been approved for the project.
Load capacity and dimensions by length
| Overall length (mm) | SWL / UDL (kN) | Weight (kg/m) | Nominal height (mm) |
|---|---|---|---|
| 750–1500 | 6 | 4.4 | 89 |
| 1650–1800 | 6 | 5.1 | 118 |
| 1950–2400 | 10 | 6.1 | 157 |
| 2550–3000 | 13 | 7.3 | 214 |
| 3150–3900 | 8 | 7.3 | 214 |
SWL / UDL means the safe working load under uniformly distributed loading. These figures are total loads in kN, not loads per metre. The length bands describe the manufacturer’s range; use the product options above for the individual lengths available from Wade.
Download the Birtley LA manufacturer datasheet (PDF).
Birtley LA questions
What does the 100mm dimension refer to?
It refers to the external masonry leaf the LA is designed to support, rather than a cavity width.
Is the lintel length the same as the clear opening?
No. The overall lintel length includes the end bearings. For example, a 1500mm lintel with 150mm bearing at each end spans a 1200mm clear opening. This calculation does not establish whether its load capacity suits the project.
Does the Birtley LA need temporary propping?
Yes, for lengths over 1500mm. Keep the props in place until the masonry is fully loaded and cured, following Birtley’s installation requirements.
Need help selecting a length or checking the specification? Contact Wade’s lintel team. You can also browse our single leaf lintels or the full Birtley lintel range.
Estimate shipping
Customer Reviews
Overall rating: 4.7 / 5 from 33 reviews.
Good communication, delivery and service is great. Thank you.

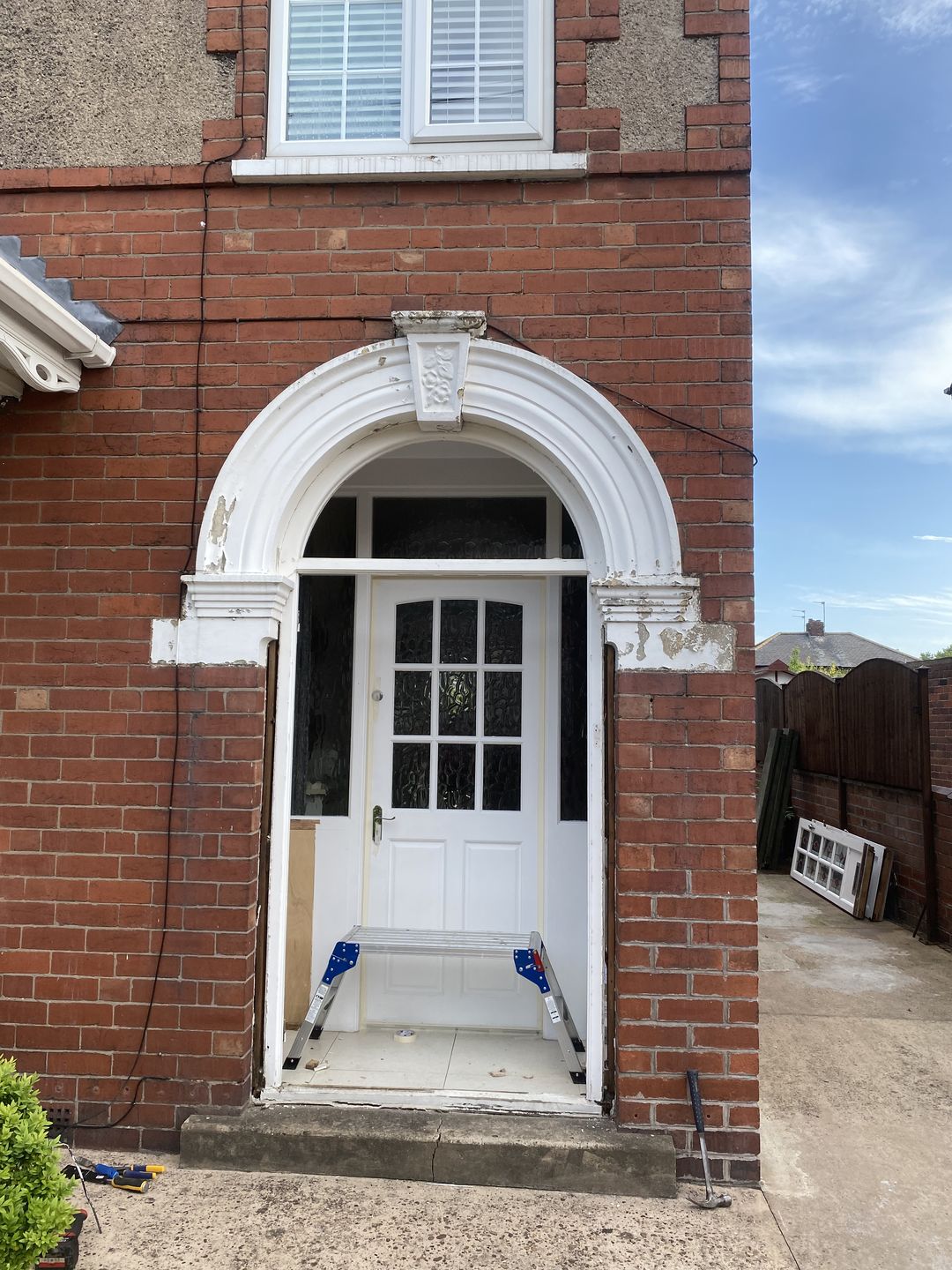

Wanted to change the front door but we had a cement arch in so we tuck the arch out did not want concrete lintel and the builder said a metal lintel it will blend into the brick work and look so much better he fitted the lintel easy and he was right it looks great great product and the right product for the job thank you all
