Lintel Type : Timber Frame Lintels
Cavity Width : 90-105mm
Lintel Duty : Standard Duty

Stressline

Stressline Standard Duty 90mm Cavity Timber Framed Lintel SL90TF

£33.00
Timber Frame Lintel

£27.50 (ex VAT)

Log in for Trade Pricing

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

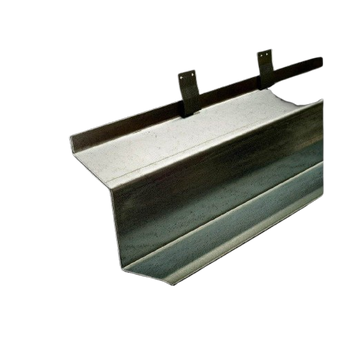

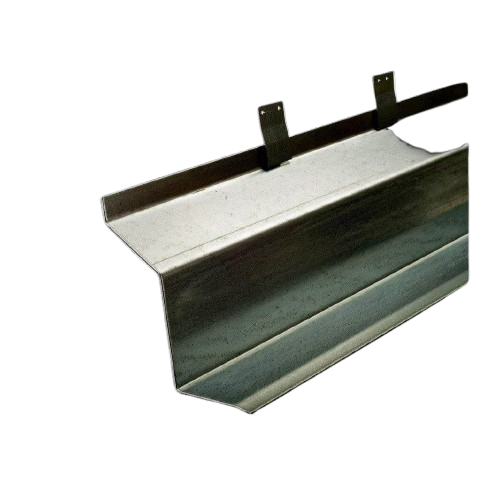

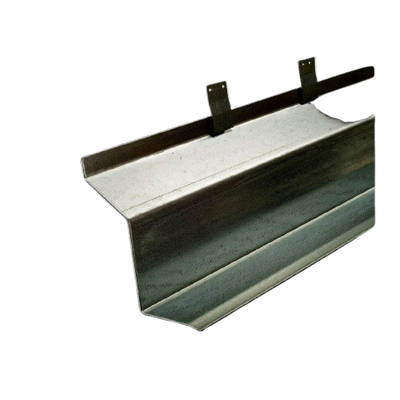

Stressline Standard Duty 90mm Cavity Timber Framed Lintel SL90TF

The Stressline SL90TF is a Standard Duty 90mm timber frame lintel designed for timber frame construction. It is easy to install, galvanised for durability and supplied with restraining clips.

Key Features

✓90mm Timber Cavity
Designed for 90mm timber frame cavity wall construction.
✓Standard Duty
Standard Duty timber frame lintel for timber frame construction.
✓Restraining Clips Supplied
Restraining clips are supplied with the timber framed cavity lintel.
✓Galvanised Finish
Galvanised finish provides durable corrosion protection.
✓Easy to Install
Designed for straightforward installation.
✓Multiple Lengths
Available in lengths up to 4800mm.

Dimensions & Specification

Manufacturer Stressline
Product Code SL90TF
Construction Timber frame
Cavity 90mm
Available Lengths 900mm–4800mm
Finish Galvanised

Where to Fit

The SL90TF is designed specifically for timber frame construction and a 90mm timber cavity wall.

To avoid excessive deflection and possible twisting, the lintel should be secured laterally with restraining clips and adequately propped during construction at maximum 1.2-metre centres. Props can be removed after the mortar has cured.

Technical Information

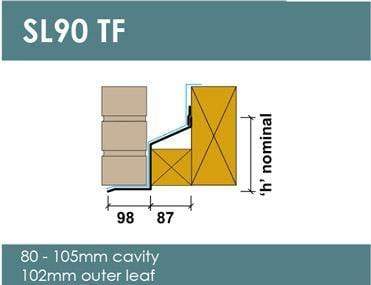

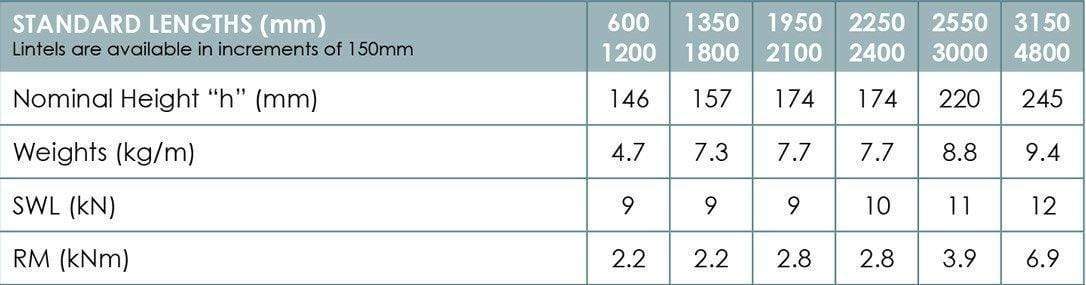

Two Stressline technical specification images are retained in the product media above. For timber frame lintel questions, Wade's Lintel Experts can assist.

Need Help Selecting the Right Lintel?

Wade's lintel experts can help with loading, sizing and application.

Contact Wade →

Frequently Asked Questions

What is the SL90TF designed for?

It is designed for timber frame construction and a 90mm timber cavity wall.

Are restraining clips supplied?

Yes. Restraining clips are supplied with the timber framed cavity lintel.

How should the SL90TF be restrained during construction?

The product information states that it should be secured laterally with restraining clips and adequately propped during construction at a maximum of 1.2-metre centres. Props can be removed after the mortar has cured.

What lengths are available?

Current variants range from 900mm to 4800mm.
