Lintel Type : Single Leaf Wall Lintels
Lintel Duty : Standard Duty

Stressline

Stressline Standard Duty 100mm Single Leaf Angle Lintel SL100TR

£41.00
Single Leaf Lintel

£34.16 (ex VAT)

Log in for Trade Pricing

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

Stressline SL100TR Standard Duty 100mm Single Leaf Angle Lintel

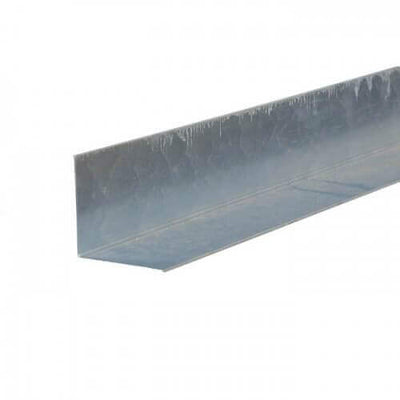

A galvanised Standard Duty angle lintel designed to support external 100mm solid walls, including faced brick and blockwork. Also known as an angle iron lintel.

Key Features

✓100mm External Solid Wall
Designed for 100mm external solid wall construction.
✓Standard Duty Angle Lintel
Standard Duty angle lintel for external solid wall applications.
✓102mm Width
Stated width is 102mm.
✓Galvanised
Galvanised finish provides corrosion protection.
✓Faced Brick & Blockwork
Suitable for faced brick and block walls.
✓Reduced Outer Toe Option
A reduced outer toe can be manufactured where required.

Dimensions & Specification

Manufacturer Stressline
Product Code SL100TR
Wall Construction 100mm external solid wall
Lintel Type Standard Duty Single Leaf Angle

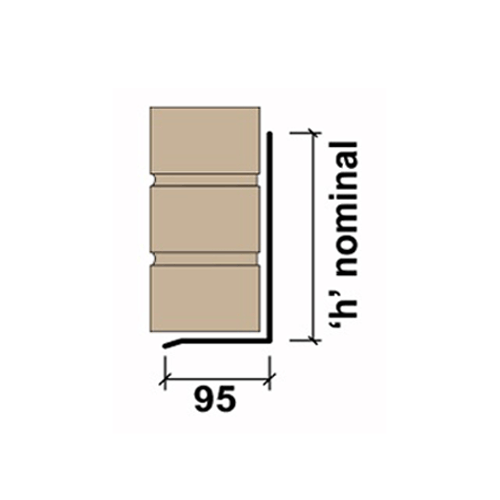

Width 102mm
Available Lengths 900mm–3900mm

Height by Length

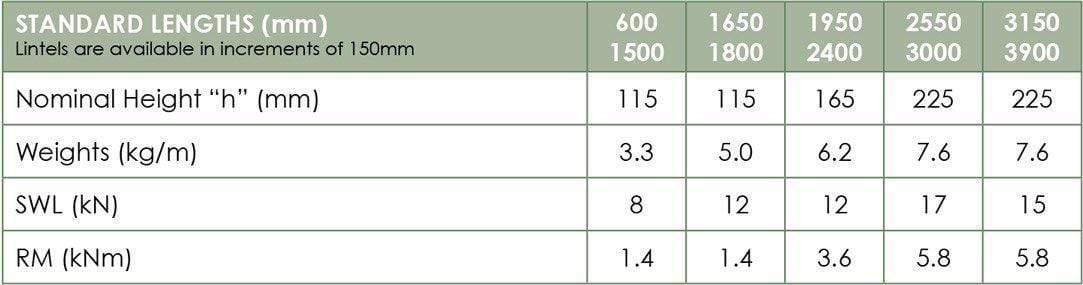

For lengths from 600mm to 1800mm, the stated height is 115mm. At 2100mm and 2400mm, the height is 165mm. From 2700mm through 3900mm, the stated height is 225mm.

Where to Fit

The SL100TR is designed for external solid walls and is suitable for faced brick and blockwork. It should be adequately propped during construction.

Technical Information

Stressline's technical brochure provides the Safe Working Load (SWL), weight and resistance moment information for the SL100 single-leaf lintel range, along with installation requirements and load-span information. The brochure confirms that the SL100 TR is part of the single-leaf external solid wall range.

View Stressline Single-Leaf Steel Lintel Brochure →

The brochure states that loadings should always be checked against the applicable load-span table and that SL100 CH, TR and MB lintels should be adequately propped during construction.

Frequently Asked Questions

What wall is the SL100TR for?

It is designed for 100mm external solid wall construction.

What is the width?

The stated width is 102mm.

Does it need propping?

Yes. Stressline's brochure states that lintels should be adequately propped during construction to avoid excessive deflection and possible twisting, with props at maximum 1.2 metre centres.

Where can I find the SWL and weight information?

Safe Working Load, weight and resistance moment information is provided in the Stressline Single-Leaf Steel Lintel Brochure linked in the Technical Information section above.

What lengths are available?

Current variants range from 900mm to 3900mm.
