Lintel Type : Cavity Lintels
Cavity Width : 110-125mm
Lintel Duty : Extra Heavy Duty
Thermally Broken : No
Wide Inner Leaf? No
Catnic

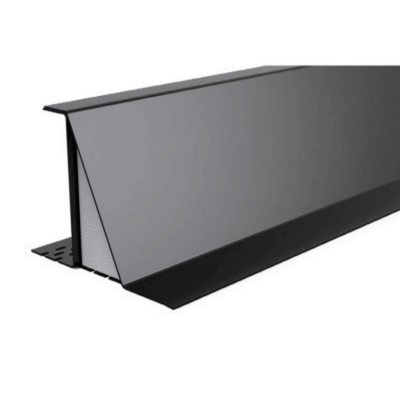

Catnic CX110/100 Extra Heavy Duty 110mm Cavity Lintel
Become a trade card holder and get a discount on this item
Pickup available at Tipton West Midlands
Usually ready in 4 hours
The Catnic CX110/100 Extra Heavy Duty 110mm Cavity Lintel is designed for high-load masonry cavity wall construction with a 110–125mm cavity, a 100–115mm inner leaf and a 100–102mm outer leaf. Its open-back steel profile supports specified masonry, timber floor and roof loads, while continuous insulation, an integral plaster key and built-in DPC provide practical construction benefits. We supply 13 lengths from 900mm to 4200mm, with safe working loads of 32–60kN depending on length.
Catnic CX110/100 key features
Extra heavy duty loading
Designed for demanding structural cavity wall openings, with published safe working loads up to 60kN.
110–125mm cavity walls
Designed for a 100–115mm inner masonry leaf and a 100–102mm outer leaf.
Open-back profile
Allows masonry to be built up continuously on both the inner and outer leaves and accommodates fair-faced inner leaf masonry.
Built-in DPC
Incorporates a damp-proof course. Additional DPC may be required in some installation or exposure conditions.
Insulation and plaster key
Supplied with continuous insulation to help reduce thermal bridging and an integral plaster key to assist finishing.
Duplex corrosion protection
Manufactured from galvanised steel with Catnic's protective black polyester powder coating.

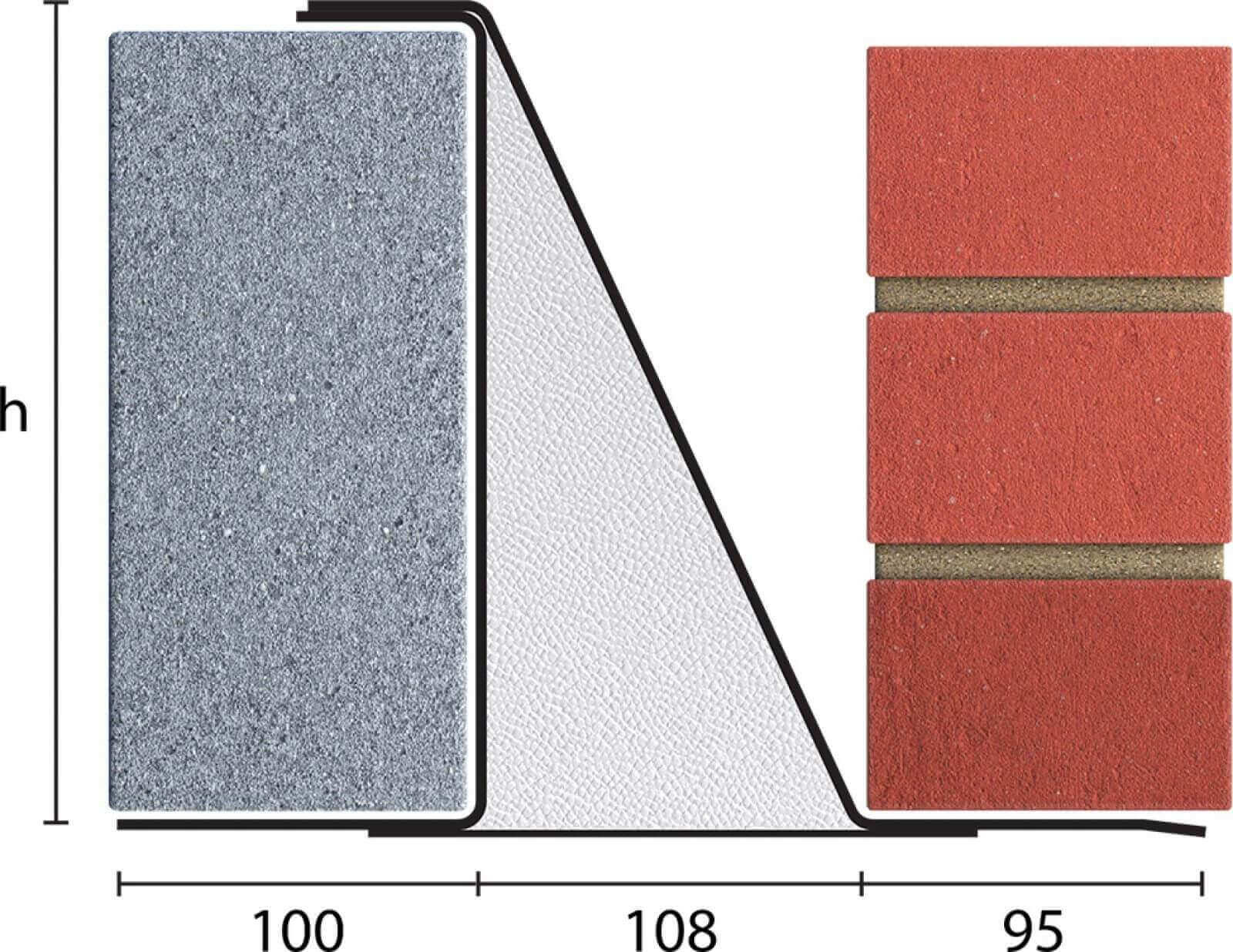

Dimensions and specification
| Manufacturer | Catnic |
|---|---|
| Product code | CX110/100 |
| Lintel type | Extra heavy duty cavity wall lintel |
| Cavity width | 110–125mm |
| Inner leaf | 100–115mm |
| Outer leaf | 100–102mm |
| Available lengths | 900–4200mm, 13 sizes |
| Manufacturer's length range | 900–4800mm |
| Nominal height | 232mm |
| Nominal end bearings | 150mm at each end |
| Safe working load | 32–60kN, depending on length |
| Built-in DPC | Yes. Additional DPC may be required in some situations. |
| Plaster key | Integral |
| Insulation | Continuous integral insulation |
| Finish | Galvanised steel with black powder coating |
Catnic CX110/100 sizes and safe working loads
The safe working load of the CX110/100 depends on length. The following table covers all 13 sizes we offer and shows the applicable manufacturer load rating for each.
| Lintel length | Safe working load |
|---|---|
| 900mm | 60kN |
| 1200mm | 60kN |
| 1350mm | 60kN |
| 1500mm | 60kN |
| 1800mm | 60kN |
| 2100mm | 60kN |
| 2400mm | 60kN |
| 2700mm | 60kN |
| 3000mm | 55kN |
| 3300mm | 50kN |
| 3600mm | 50kN |
| 3900mm | 50kN |
| 4200mm | 32kN |
Where to use a Catnic CX110/100 lintel
The CX110/100 is intended for extra heavy duty masonry cavity walls with a cavity width of 110–125mm. It is designed to support specified masonry, timber floor and roof loads, with concrete floor and attic truss applications subject to Catnic's loading and installation requirements.
Its open-back profile allows masonry to be built continuously on both leaves and is suitable for fair-faced inner leaf masonry.
Choosing the correct CX110/100 length
Catnic's published loading figures use nominal 150mm end bearings at each end. As a general starting point, add 300mm to the clear structural opening width to allow for the required bearings.
For example, a 1200mm structural opening would normally require a 1500mm lintel, allowing 150mm bearing on either side. The selected lintel must also provide sufficient safe working load for the construction above.
Installation and support requirements
Both masonry leaves should be raised together, and the supporting wall construction must provide suitable end bearings. Follow Catnic's current guidance for temporary propping, load transfer and lateral restraint during construction.
For concrete floor applications using Catnic CH and CX open-back lintels, build the blockwork tightly against the inner vertical face of the lintel. Add a mortar joint to the top of the blockwork so the floor units distribute their load evenly across the lintel's inner flange.
Related Catnic cavity lintels
For lower loading requirements with the same cavity dimensions, compare our Catnic CH110/100 Heavy Duty Cavity Lintel or Catnic CG110/100 Standard Duty Cavity Lintel.
For extra heavy duty applications with a wider cavity, we also supply the Catnic CX130/100 Extra Heavy Duty Cavity Lintel.
Browse our cavity lintel range and Catnic lintels for other sizes and loading requirements.
Technical downloads
Frequently asked questions
What cavity width is the Catnic CX110/100 designed for?
The CX110/100 is designed for 110–125mm cavities, with a 100–115mm inner masonry leaf and a 100–102mm outer leaf.
What lengths of Catnic CX110/100 do you supply?
We offer 13 lengths from 900mm to 4200mm. Choose the required size from the options above and check its safe working load before ordering.
What is the safe working load of the CX110/100?
Catnic specifies 60kN for lengths from 900mm to 2700mm, 55kN for 2850–3000mm, 50kN for 3300–3900mm and 32kN from 4200mm upwards, subject to the manufacturer's loading conditions.
Does the CX110/100 have a built-in DPC?
Yes. The CX110/100 incorporates a built-in damp-proof course. Additional DPC may be required in some installation or exposure conditions.
Does the CX110/100 have integral insulation and a plaster key?
Yes. The CX110/100 includes continuous insulation and an integral plaster key.
Can the CX110/100 support concrete floors?
Catnic provides installation requirements for CH and CX open-back lintels supporting concrete floors. The blockwork must be tight against the inner vertical face, with a mortar joint at the top to distribute loading evenly over the inner flange. The structural design and loading must also be checked.
How much end bearing does a CX110/100 need?
Catnic's published safe working loads are based on nominal 150mm end bearings at each end. Check the lintel length and load capacity for your structural opening.
