Lintel Type : Cavity Lintels
Cavity Width : 150-165mm
Lintel Duty : Heavy Duty
Thermally Broken : No
Wide Inner Leaf? No
Catnic

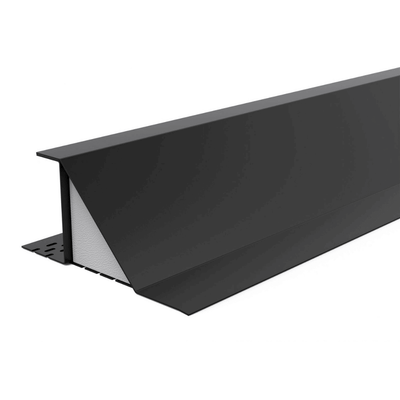

Catnic CH150/100 Heavy Duty 150mm Cavity Lintel
£119.16 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item

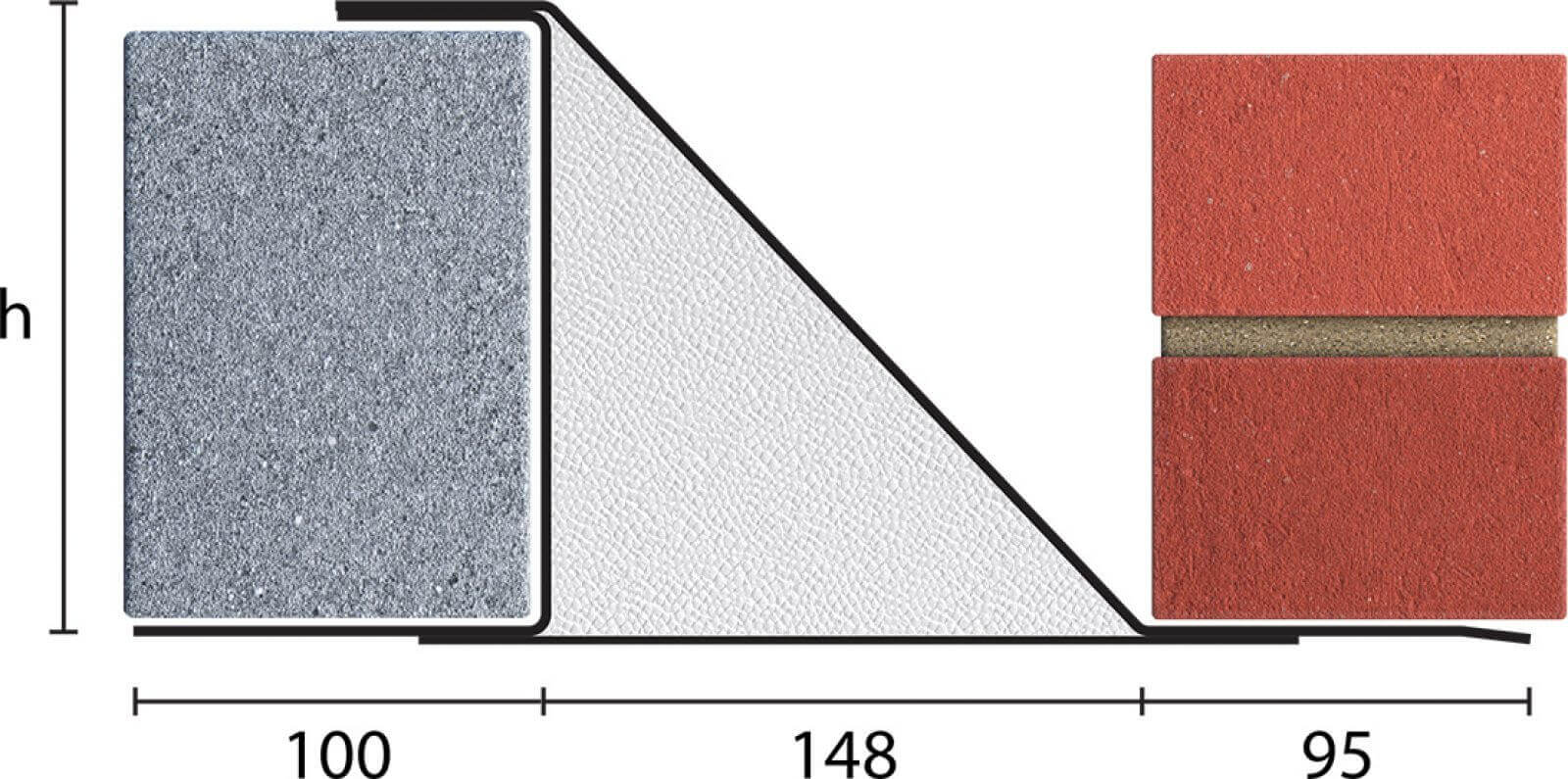

The Catnic CH150/100 Heavy Duty 150mm Cavity Lintel is designed for masonry cavity walls with a 150–165mm cavity, a 100–115mm inner leaf and a 100–102mm outer leaf. Its open-back steel profile supports specified masonry, timber floor and roof loads, while continuous insulation, an integral plaster key and built-in DPC provide practical construction benefits. We supply seven lengths from 1050mm to 2400mm, with safe working loads of 32kN, 48kN or 45kN depending on length.
Catnic CH150/100 key features
Heavy duty loading
Designed for specified masonry, timber floor and roof loads, with safe working loads up to 48kN.
150–165mm cavity walls
Designed for a 100–115mm inner masonry leaf and a 100–102mm outer leaf.
Open-back profile
Allows masonry to be built up continuously on both leaves and accommodates fair-faced inner leaf masonry.
Built-in DPC
Incorporates a damp-proof course. Additional DPC may be required in some installation or exposure conditions.
Continuous insulation and plaster key
Integral insulation helps reduce thermal bridging, while the plaster key assists with plaster finishing.
Duplex corrosion protection
Manufactured from galvanised steel with Catnic's protective black polyester powder coating.
Dimensions and specification
| Manufacturer | Catnic |
|---|---|
| Product code | CH150/100 |
| Lintel type | Heavy duty cavity wall lintel |
| Cavity width | 150–165mm |
| Inner leaf | 100–115mm |
| Outer leaf | 100–102mm |
| Lengths available | 1050–2400mm, seven sizes |
| Manufacturer's length range | 900–2400mm |
| Nominal section height | 158mm |
| Nominal end bearings | 150mm at each end |
| Safe working load | 32kN, 48kN or 45kN, depending on length |
| Built-in DPC | Yes. Additional DPC may be required in some situations. |
| Plaster key | Integral |
| Insulation | Continuous integral insulation |
| Finish | Galvanised steel with black polyester powder coating |
Catnic CH150/100 sizes and safe working loads
The safe working load and nominal weight of the CH150/100 vary according to length. The table below covers all seven sizes we supply, using Catnic's current technical specifications.
| Length | Safe working load | Nominal weight |
|---|---|---|
| 1050mm | 32kN | 13.68kg |
| 1200mm | 32kN | 15.64kg |
| 1350mm | 32kN | 17.59kg |
| 1500mm | 32kN | 19.55kg |
| 1800mm | 32kN | 23.45kg |
| 2100mm | 48kN | 32.70kg |
| 2400mm | 45kN | 37.37kg |
Where to use a Catnic CH150/100 lintel
The CH150/100 is designed for heavy duty masonry cavity-wall construction with a 150–165mm cavity. It supports specified masonry, timber floor and roof loads where the selected lintel's rated capacity is sufficient.
Its open-back profile allows masonry to be built continuously on both leaves and is suitable for fair-faced inner leaf masonry.
Choosing the correct CH150/100 length
Catnic's published loading figures use nominal 150mm end bearings at each end. As a general starting point, add 300mm to the clear structural opening width to allow for these bearings.
For example, a 1200mm structural opening would normally require a 1500mm lintel, with 150mm bearing at each end. The selected lintel must also have sufficient safe working load for the construction above.
Installation and concrete floor support
Check the cavity width, masonry leaf dimensions and supporting wall construction before installation. Follow Catnic's current guidance for end bearings, temporary propping and restraint.
When using Catnic CH and CX open-back lintels with concrete floors, build the blockwork tightly against the inner vertical face of the lintel. A mortar joint at the top of the blockwork helps distribute floor-unit loads evenly over the inner flange.
Related Catnic cavity lintels
For standard duty applications with the same cavity dimensions, compare our Catnic CG150/100 Standard Duty Cavity Lintel.
For extra heavy duty loading requirements, we also supply the Catnic CX150/100 Extra Heavy Duty Cavity Lintel.
Browse our cavity lintel range and Catnic lintels for other cavity widths and loading requirements.
Technical downloads
Frequently asked questions
What cavity width is the Catnic CH150/100 designed for?
The CH150/100 is designed for 150–165mm cavities, with a 100–115mm inner masonry leaf and a 100–102mm outer leaf.
What lengths of Catnic CH150/100 do you supply?
We offer seven lengths: 1050mm, 1200mm, 1350mm, 1500mm, 1800mm, 2100mm and 2400mm. Choose the size you need from the options above.
What is the safe working load of a CH150/100?
Catnic specifies 32kN for lengths from 900mm to 1800mm, 48kN for 1950–2100mm and 45kN for 2250–2400mm, subject to the manufacturer's published loading conditions.
Does the CH150/100 have a built-in DPC?
Yes. The CH150/100 incorporates a built-in damp-proof course. Additional DPC may be required depending on installation and exposure conditions.
Does the CH150/100 have insulation and a plaster key?
Yes. The CH150/100 includes continuous insulation and an integral plaster key to assist finishing.
Can the CH150/100 support concrete floors?
Catnic provides installation guidance for CH and CX open-back lintels supporting concrete floors. Build the blockwork tightly against the inner vertical face, with a mortar joint at the top to distribute floor-unit loads evenly across the inner flange. Check the structural loads before installation.
How much end bearing does a CH150/100 require?
Catnic's published safe working loads use nominal 150mm end bearings at each end. Confirm the lintel length and loading capacity for your structural opening.
