Lintel Type : Cavity Lintels
Cavity Width : 90-105mm
Lintel Duty : Standard Duty
Thermally Broken : No
Wide Inner Leaf? No

Catnic

Catnic CGE90/100 1200mm Cavity Lintel

£0.00
Cavity Lintel

£0.00 (ex VAT)

Log in for Trade Pricing

Request a Quote

Catnic CGE90/100 1200mm Cavity Lintel

The Catnic CGE90/100 is a standard duty steel cavity lintel with an open-back profile and built-in DPC, designed for cavity wall construction with a 90–125mm cavity, 100–115mm inner leaf and 190–235mm overall wall width.

Key Features

Standard DutyDesigned for standard cavity wall openings.
90–125mm CavitySuitable for the stated cavity width range.
Built-in DPCIntegral damp proof course removes the need for a separate membrane.
Thermal PerformanceContinuous insulation in the triangulated cavity section helps minimise thermal bridging.

Dimensions & Specification

Manufacturer Catnic
Product CGE90/100
Lintel Type Standard Duty Cavity Lintel
Profile Open Back
Cavity Width 90–125mm
Inner Leaf 100–115mm
Overall Wall Width 190–235mm

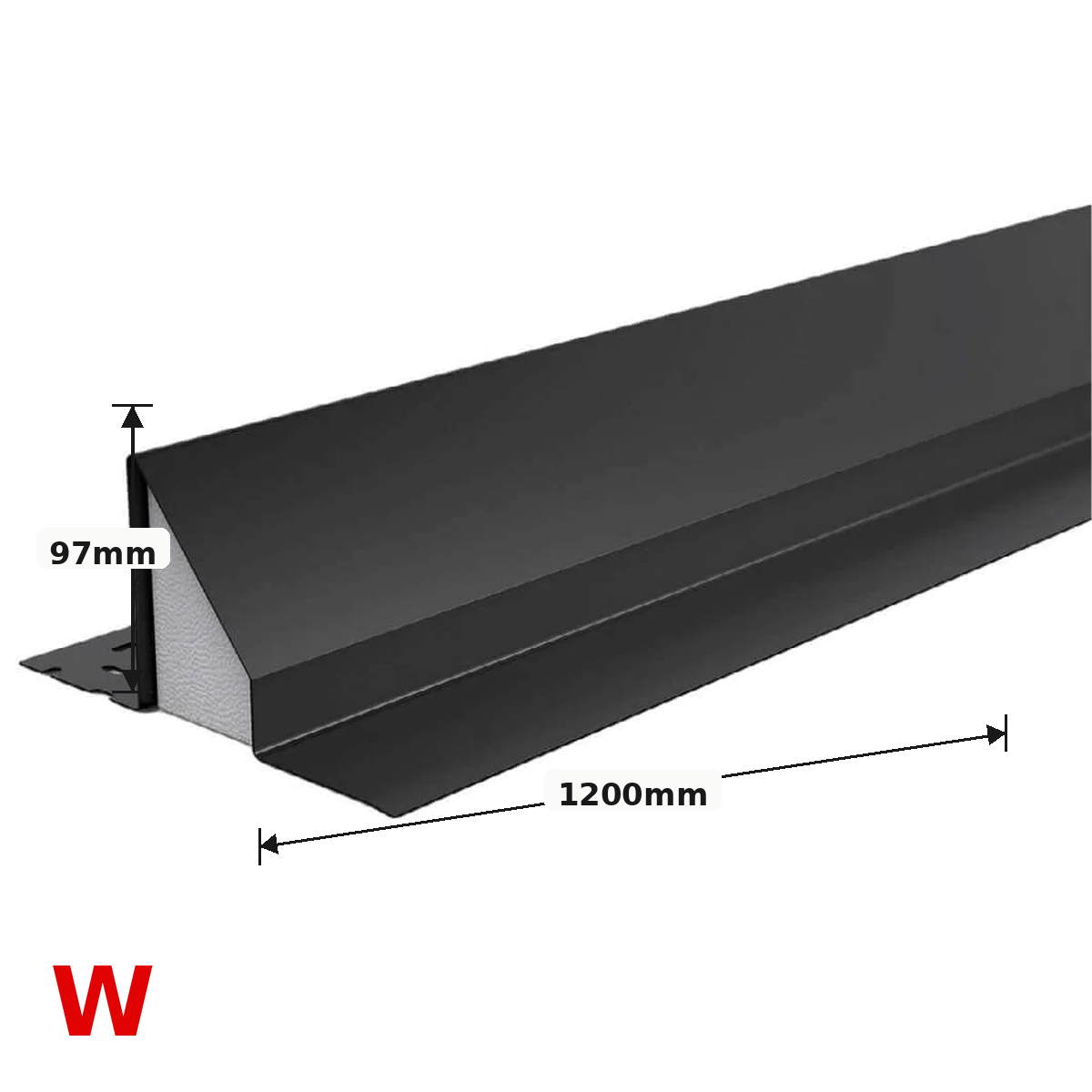

Length 1200mm
Safe Working Load 15kN for lengths from 900mm to 1500mm, subject to the manufacturer's loading conditions

Typical Applications

The Catnic CGE90/100 is designed for standard openings in cavity wall construction, including new build, extension and renovation projects.

90–125mm CavityStandard DutyBuilt-in DPCOpen Back1200mm

Product Details

  • Standard duty Catnic CGE90/100 cavity lintel
  • 1200mm length
  • 90–125mm cavity width
  • 100–115mm inner leaf
  • 190–235mm overall wall width
  • Integral plaster key for internal finishing
  • Galvanised and powder-coated for corrosion resistance

Catnic CGE90/100 – 1200mm

Select the 1200mm CGE90/100 for the required opening and construction details.

Need help selecting the right lintel?

Wade's lintel specialists can help with product selection and technical requirements. Contact Wade if you need a hand.
