Lintel Type : 215mm Solid Wall Lintels
Lintel Duty : Heavy Duty
Stressline
Stressline Heavy Duty 215mm Solid Wall 'T' Lintel SL200CH
£167.50 (ex VAT)
Pickup available at Tipton West Midlands
Usually ready in 4 hours
Become a trade card holder and get a discount on this item

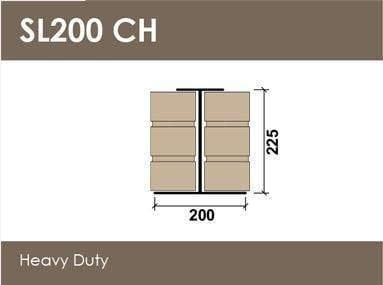

The Stressline Heavy Duty 215mm Solid Wall Lintel SL200CH is a galvanised steel lintel designed for external solid-wall construction, including 200–215mm walls. The SL200CH is a back-to-back channel profile intended to support two leaves of fairface brickwork and can also be used in tile-hanging external wall applications. Select the correct length and check Stressline's load-span tables for the proposed opening and supported loads.
Key Features
200–215mm solid walls
Designed for external solid-wall construction in the 200–215mm range.
Heavy-duty channel lintel
Back-to-back channel construction designed for a 1:1 load ratio, as stated in Stressline's technical guide.
Supports fairface brickwork
The channel profile can support two leaves of fairface brickwork, subject to the relevant load-span data.
Tile-hanging applications
Also identified by Stressline for use in tile-hanging external walls.
Galvanised steel
Galvanised steel construction helps protect against corrosion.
15 length options
Choose from the listed lengths, from 1200mm to 5100mm.
Product Specifications
| Manufacturer | Stressline |
|---|---|
| Product code | SL200CH |
| Lintel type | Heavy-duty back-to-back channel lintel |
| Wall construction | 200–215mm external solid wall |
| Typical application | Two leaves of fairface brickwork; tile-hanging external walls |
| Load ratio | 1:1, as stated in Stressline's technical guide |
| Material and finish | Galvanised steel |

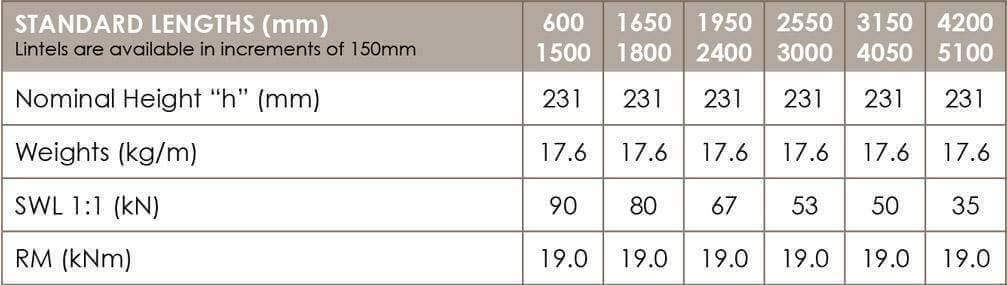

| Available lengths | 1200mm, 1350mm, 1500mm, 1800mm, 2100mm, 2400mm, 2700mm, 3000mm, 3300mm, 3600mm, 3900mm, 4200mm, 4500mm, 4800mm and 5100mm |
Typical Applications
The SL200CH is intended for openings in external 200–215mm solid walls. Its back-to-back channel profile can carry fairface brickwork on both sides and is also identified for tile-hanging external walls. Stressline's external solid-wall lintel range is designed for applications involving masonry loads, concrete floor loads, timber floor joists, roof or attic truss loads and point loads, subject to the individual lintel's load-span capacity.
Manufacturer Technical Information
Frequently Asked Questions
What wall thickness is the SL200CH designed for?
Stressline identifies the SL200CH for external solid walls in the 200–215mm range. Check the actual wall construction before ordering.
What is the difference between the SL200CH and SL200T?
The SL200CH is a back-to-back channel profile, while the SL200T is an inverted T profile. Both are listed for external solid-wall applications, but use the relevant product's load-span information when specifying.
Does the SL200CH need to be filled with masonry?
Yes. Stressline states that the channel must be filled with well-cured masonry before work proceeds above to achieve the stated loading figures.
How should the lintel be propped during construction?
Stressline's guide states that adequate temporary propping is required at maximum 1.2m centres. Props should only be removed after the mortar has cured.
What lengths are available?
The current Shopify listing offers 15 lengths from 1200mm to 5100mm.
Need Help Choosing a Solid Wall Lintel?
Contact Wade Building Supplies for help checking lintel length, loading information and the right profile for your project.
