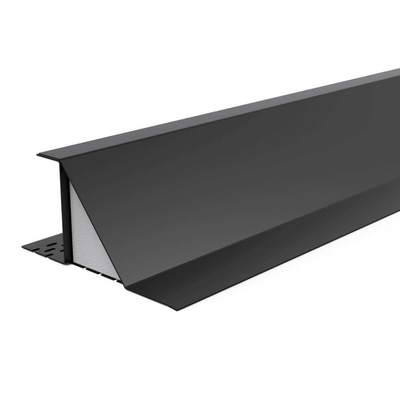

WADE BUILDING SUPPLIES | CATNIC CH130 CAVITY WALL LINTEL

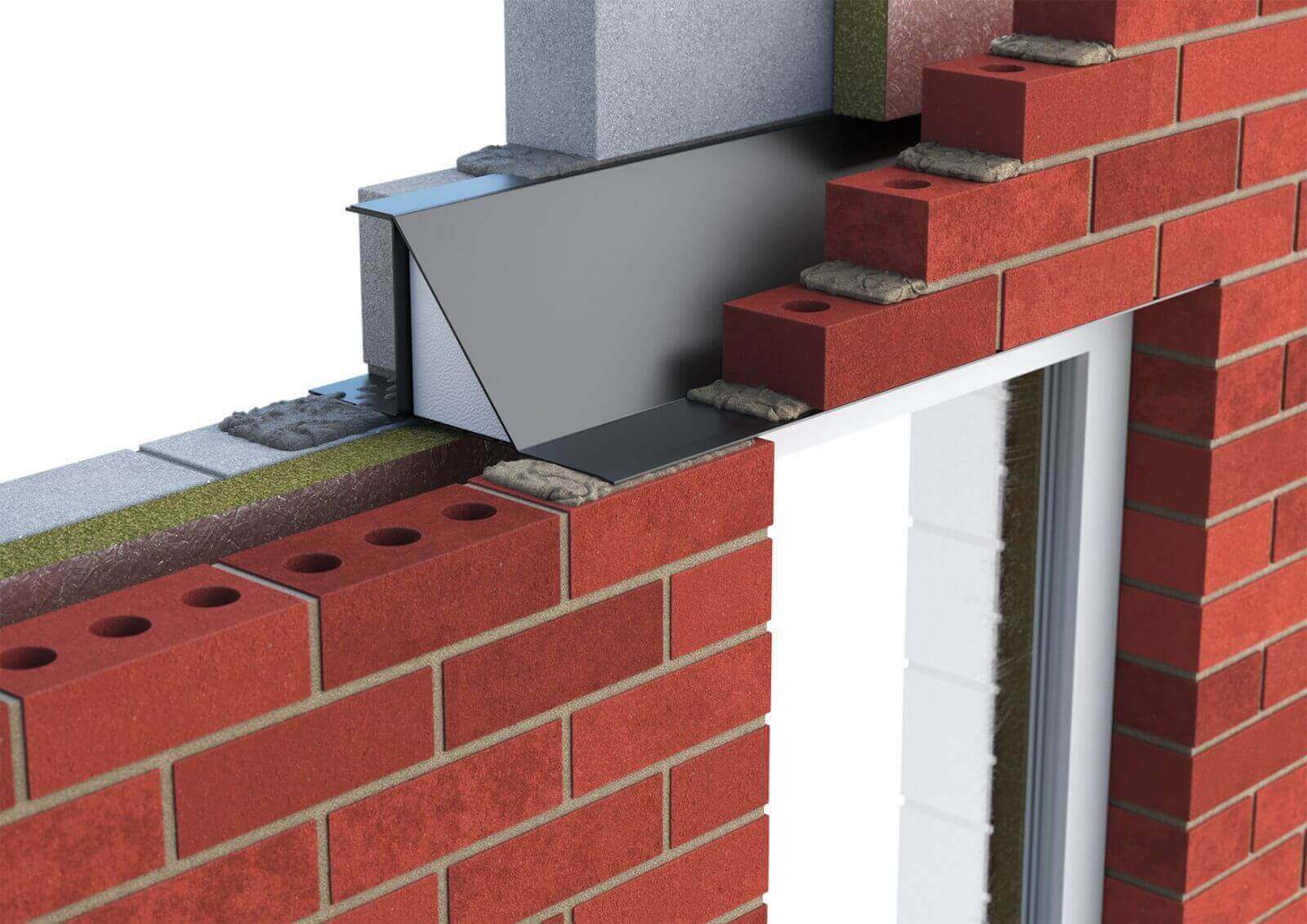

wade building supplies | catnic lintel ch130 installation image

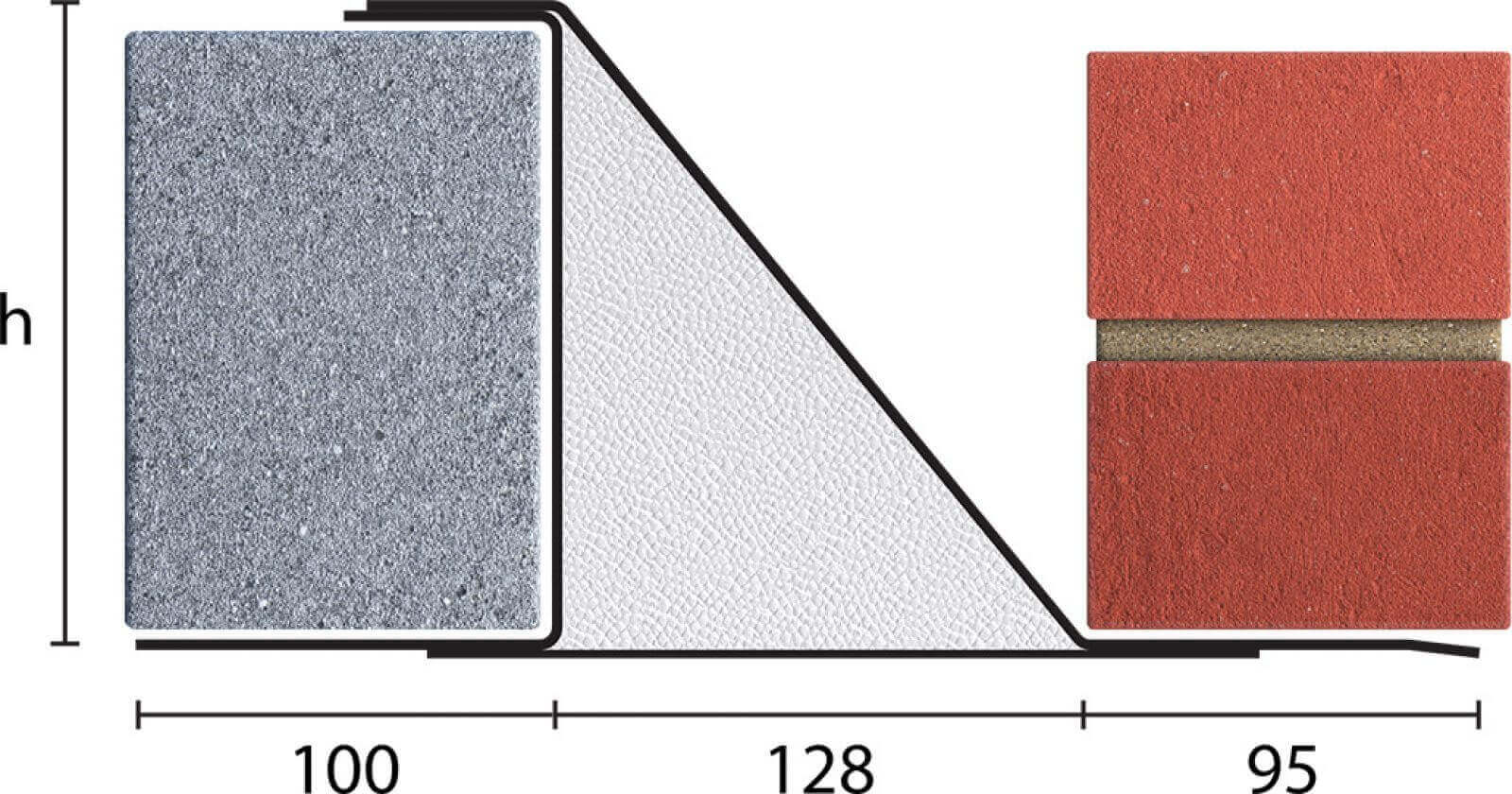

wade building supplies | catnic ch130 spec sheet

WADE BUILDING SUPPLIES | CATNIC CH1300 100 HEAVY DUTY LINTEL LOGO UK DISTRIBUTORS FOR CATNIC LINTELS

Lintel Type : Cavity Lintels

Cavity Width : 130-145mm

Lintel Duty : Heavy Duty

Thermally Broken : No

Wide Inner Leaf? No

Catnic

Catnic Heavy Duty 130mm Cavity Lintel CH130/100

£106.40

Cavity Lintel

£88.66 (ex VAT)

Product variants

Quantity

Request a Bulk Quote

Pickup available at Tipton West Midlands

Usually ready in 4 hours

The Catnic CH130 Open Back Lintel

With its Open Back Profile, this Heavy Duty Catnic Cavity Lintel allows Masonry to be built up continuously on both Outer and Inner Leaf

Catnic Lintels come with the added benefit of Built-in DPC to save time during Construction.

This Catnic CH130 Open Back Lintel is Suitable for:

Triangulated Masonry Load
Uniformly Distributed Masonry Load
Supports Concrete Floors
Fair Faced Inner Leaf Masonry
Large Span Trussloads
Uniformly Distributed Timber Floors and Roof Loads

When Lintel is in use, ensure 150mm End Bearings. Both Leaves should be Raised together, and One Course of Block before Installation of Floor/ Roof

Comes with Duplex Corrosion Protection to ensure a Durable and Longer Life

The Built-in Damp Proof Course also saves time during Construction and means the Cavity is Easy to Clean without Damage to the DPC

Only use with Nominal 150mm End Bearings

Catnic CH130 Heavy Duty Key Features

Built-in Damp Proof Course
Integral Plaster Key
Continuous Insulation
Duplex Corrosion Protection for Longer Life
Triangulated Masonry Load
Supports Uniformly Distributed Masonry Load
130 -145mm Cavity
100 - 115mm Inner Leaf

Our Lintel Technicians are Available to assist with any questions you have on Lintel Selection, Planning or Fitting

Need more Information Contact a Catnic Lintel Expert

Click here for Catnic Lintel Selector
