Lintel Type : Cavity Lintels
Cavity Width : 110-125mm
Lintel Duty : Heavy Duty
Thermally Broken : No
Wide Inner Leaf? No

Stressline

Stressline Heavy Duty 125mm Cavity Lintel SL110XHD225

£198.00
Cavity Lintel

£165.00 (ex VAT)

Length

Pickup available at Tipton West Midlands

Usually ready in 4 hours

Become a trade card holder and get a discount on this item

Create an account or Log in

Request a Bulk Quote

Stressline Heavy Duty 125mm Cavity Lintel SL110XHD225

Heavy Duty cavity lintel designed for 110–125mm cavity wall construction, supporting concrete floor loads, attic trusses and point loads with built-in insulation, continuous insulation and a plaster key.

Key Features

✓110–125mm Cavity
Designed for 110–125mm cavity wall construction.
✓Heavy Duty
Designed for demanding cavity wall applications.
✓Concrete & Specialist Loads
Suitable for concrete floor loads, attic trusses, point loads, compound trusses and steel beams.
✓Built-In Insulation
Thermal efficiency with built-in insulation to minimise cold bridging.
✓Continuous Insulation
Continuous insulation runs through the lintel construction.
✓Built-In Plaster Key
Built-in plaster key supports internal finishing.
✓Base Plate to Inner Flange
Base plate to inner flange forms part of the lintel construction.
✓Galvanised Finish
Galvanised finish provides durable protection and longer life.

Dimensions & Specification

Manufacturer Stressline
Product Code SL110XHD225
Cavity 110–125mm
Available Lengths 1200mm–4200mm
Finish Galvanised

Where to Fit

The SL110XHD225 is designed for demanding 110–125mm cavity wall applications and supports concrete floor loads, attic trusses and point loads.

The inner leaf channel should be filled with well-cured masonry before work proceeds above. Always check loadings against the applicable load/span table.

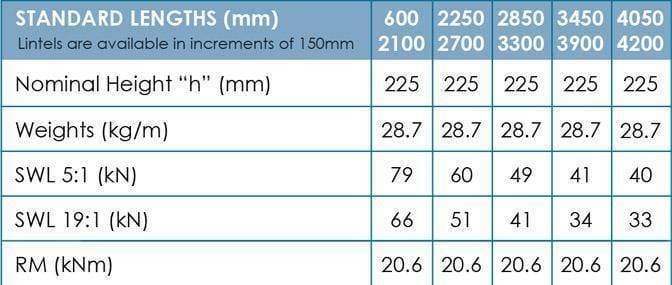

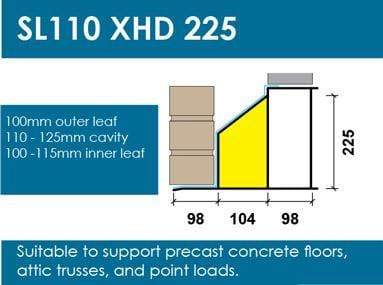

Technical Information

The original product includes two technical specification images. These remain in the product media above.

Wade's Lintel Team can assist with loadings, sizing and application questions.

Need Help Selecting the Right Cavity Lintel?

Wade's lintel experts can help with cavity, loading and application.

Contact Wade →

Frequently Asked Questions

What cavity size is the SL110XHD225 for?

It is designed for 110–125mm cavity wall construction.

What loads can it support?

The product information identifies concrete floor loads, attic trusses and point loads, with compound trusses and steel beams also listed in the original Heavy Duty cavity information.

What lengths are available?

The range is available from 1200mm to 4200mm.
